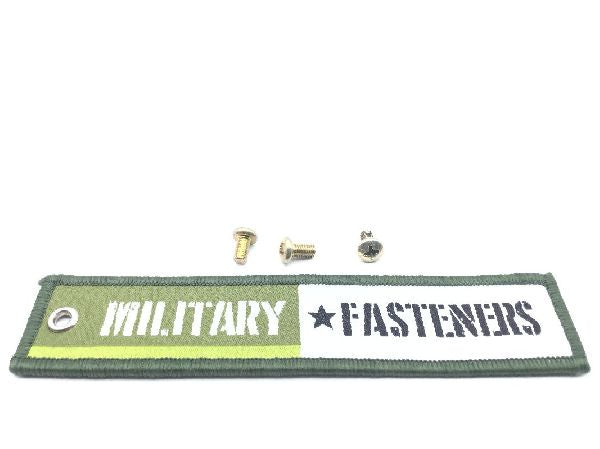

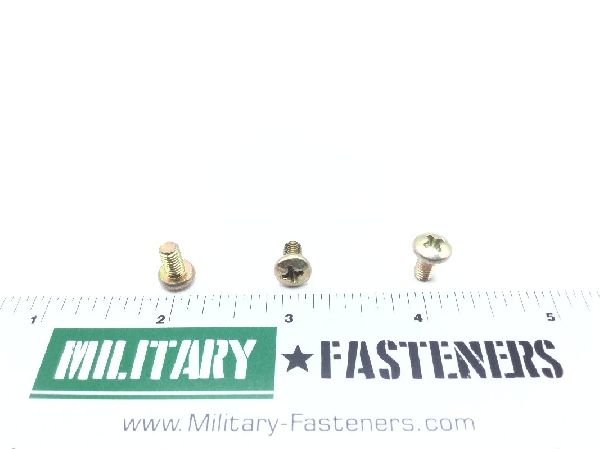

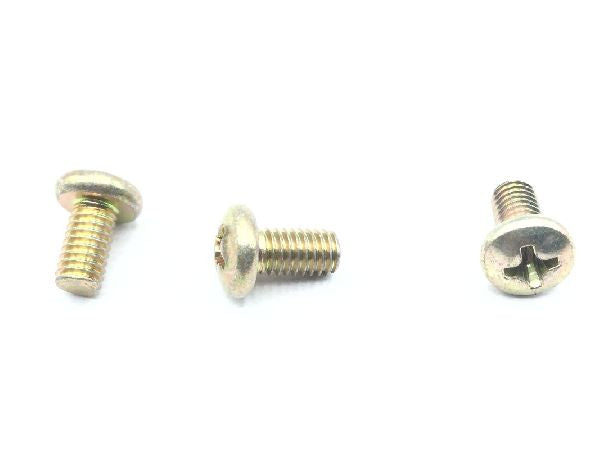

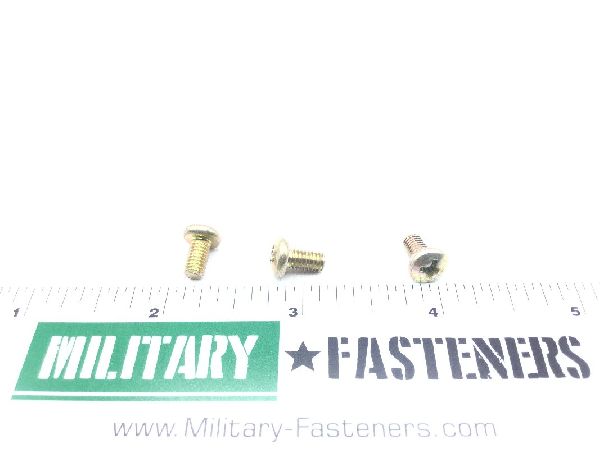

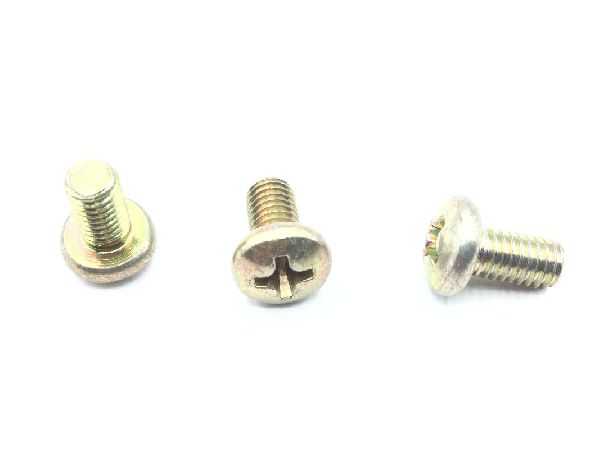

MS35207-242 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.281 inches and 0.312 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Steel comp 1010 or steel comp 1011 or steel comp 1013
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.256 inches and 0.312 inches
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.306 inches and 0.322 inches
