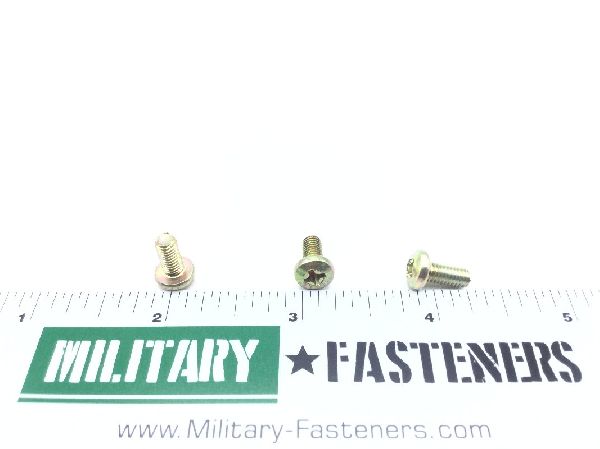

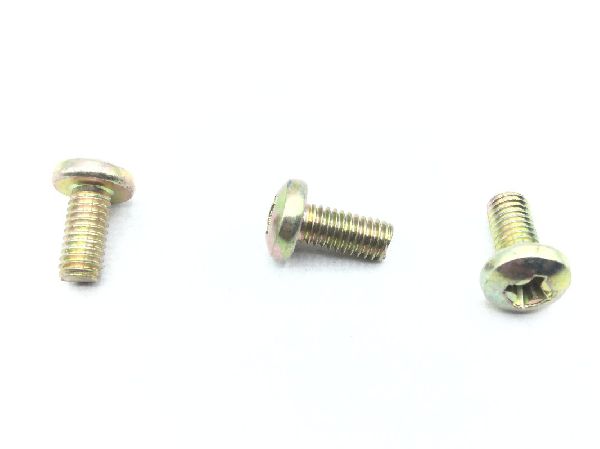

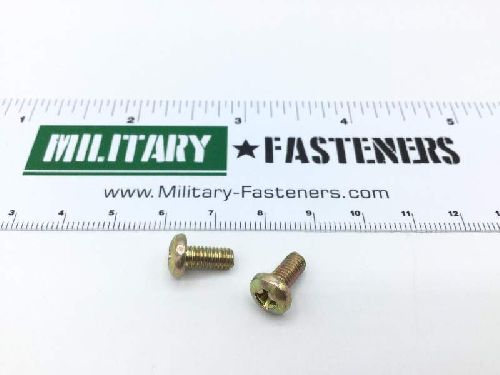

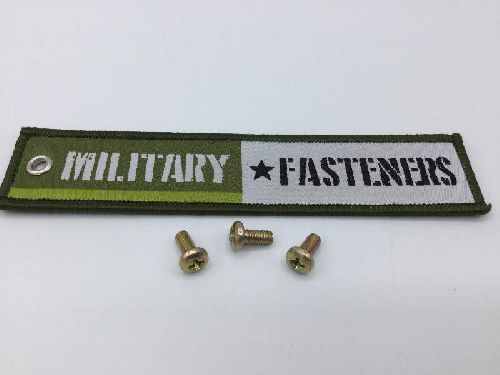

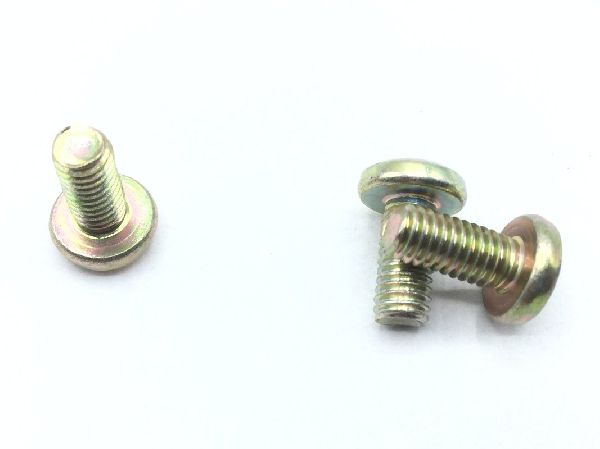

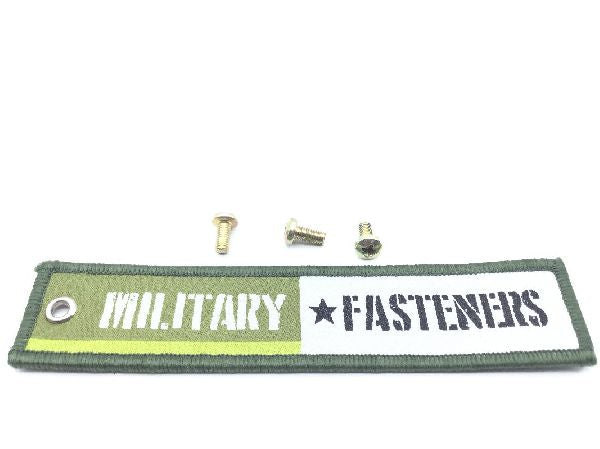

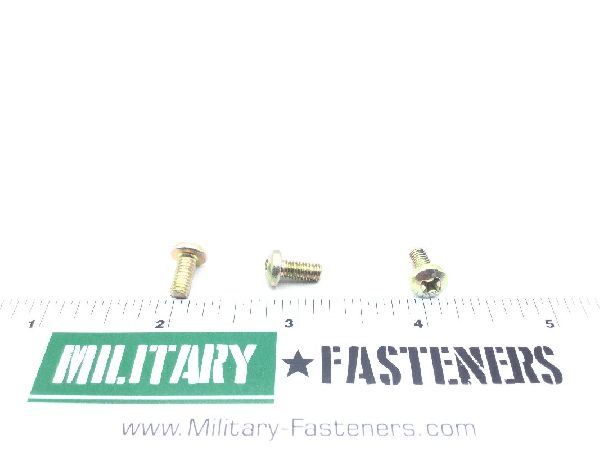

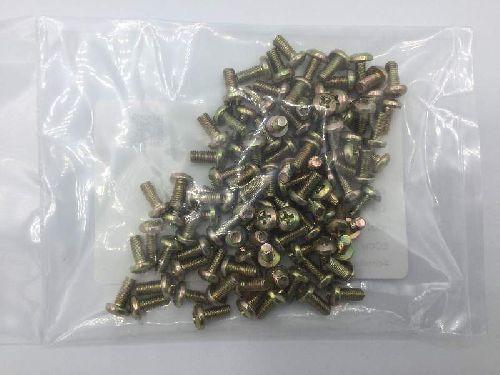

MS35207-243 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: 0.375 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Qq-s-633 federal specification single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.306 inches and 0.322 inches
