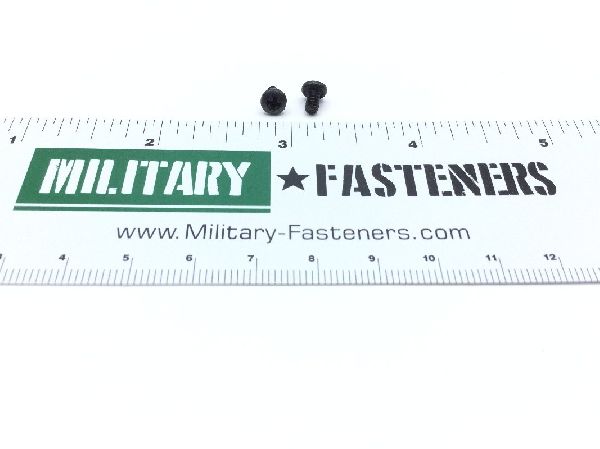

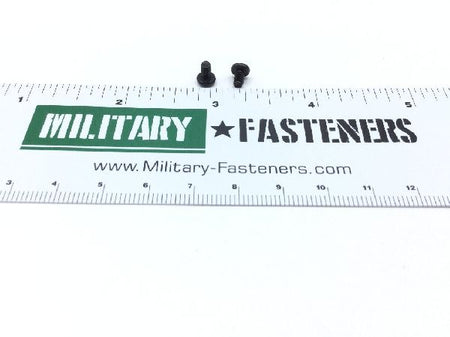

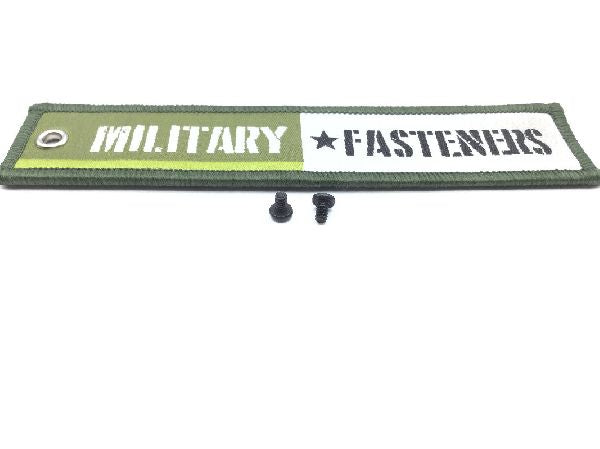

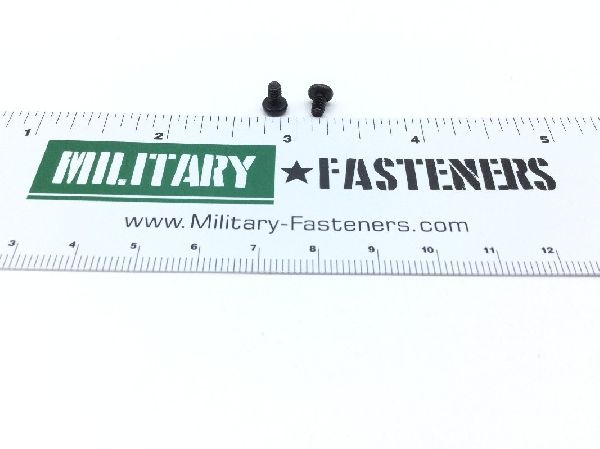

MS35214-11 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.156 inches and 0.188 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 57000 pounds per square inch
Screw Material: Copper alloy
Screw Material Specification: Qq-b-626 federal specification single material response or qq-w-321 federal specification single material response
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.138 inches and 0.188 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
