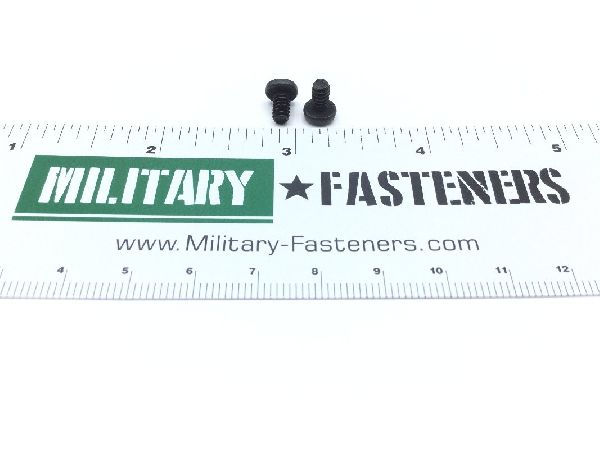

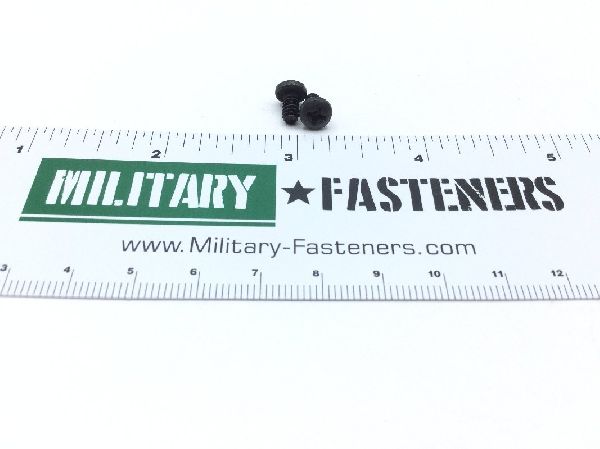

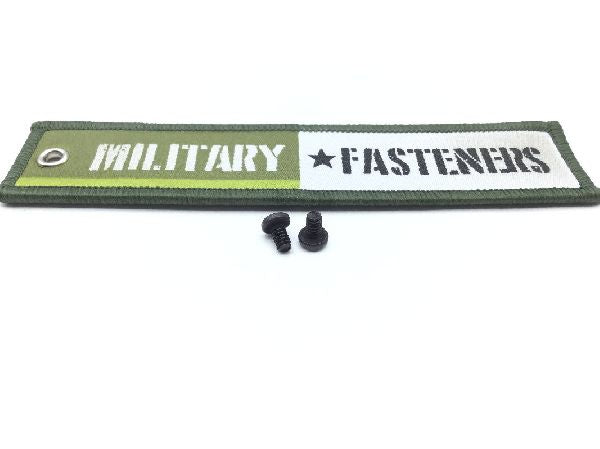

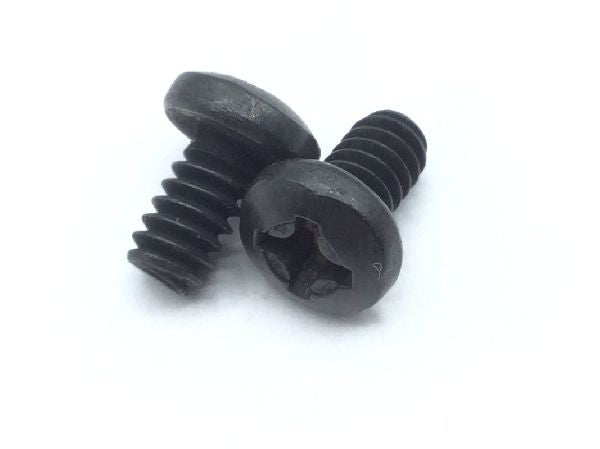

MS35214-23 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.32

Units per Pack 100

Price per Pack $32.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $32.00

Add item to quote

Head Style

Pan

Material

Copper alloy

Thread Class

Fastener Length: Between 0.219 inches and 0.250 inches
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Material Specification: Qq-b-626 federal specification single material response or qq-w-321 federal specification single material response
Min. Tensile Strength (psi): 57000 pounds per square inch
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.188 inches and 0.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.256 inches and 0.270 inches
