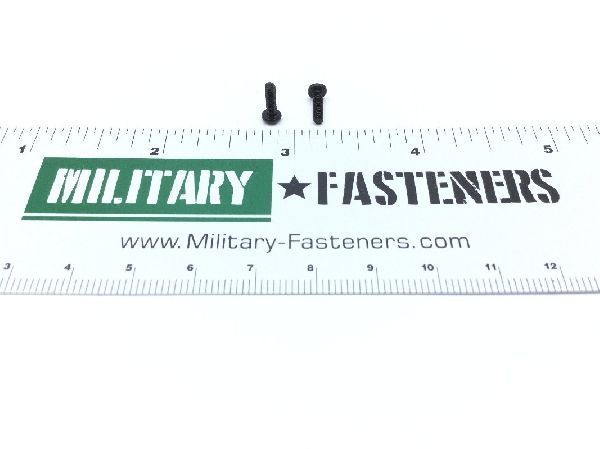

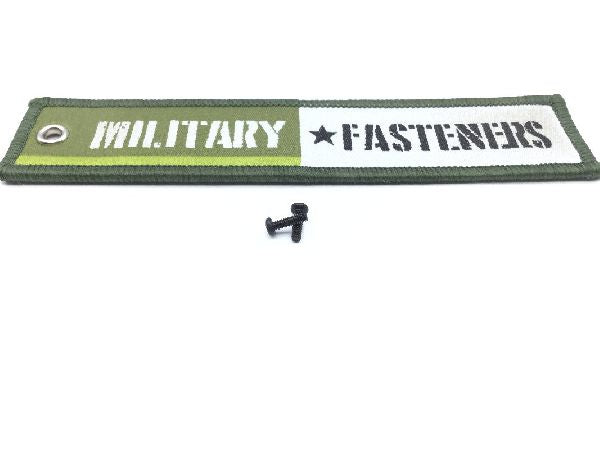

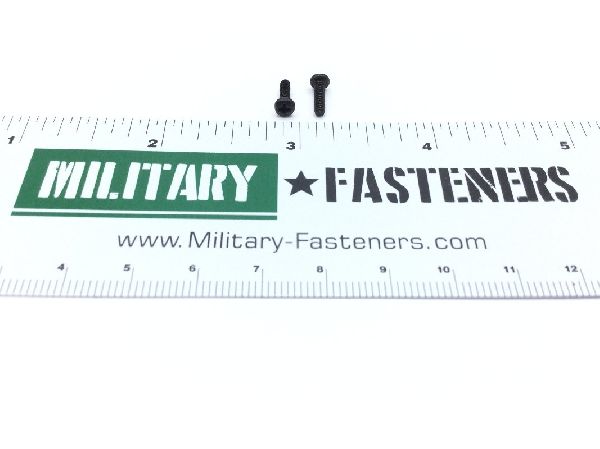

MS35214-4 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.281 inches and 0.312 inches
Head Height: Between 0.053 inches and 0.062 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 57000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Screw Material: Copper alloy
Screw Material Specification: Qq-b-626 federal specification single material response or qq-w-321 federal specification single material response
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.276 inches and 0.312 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.155 inches and 0.167 inches
