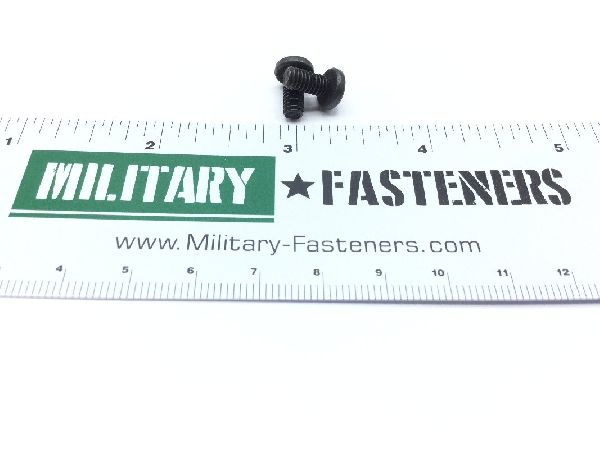

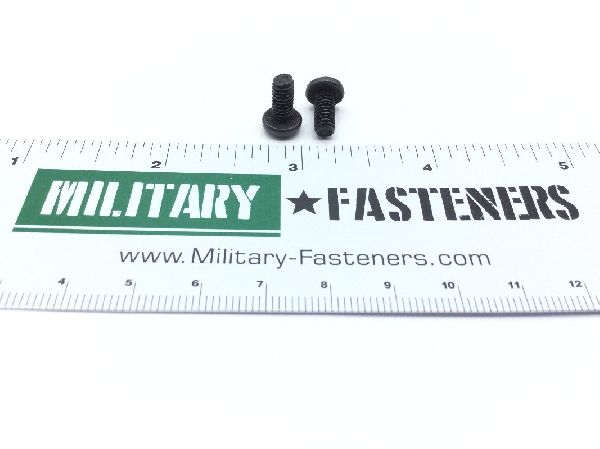

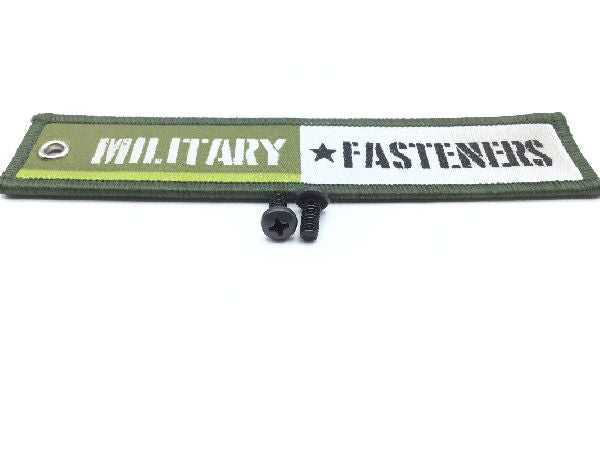

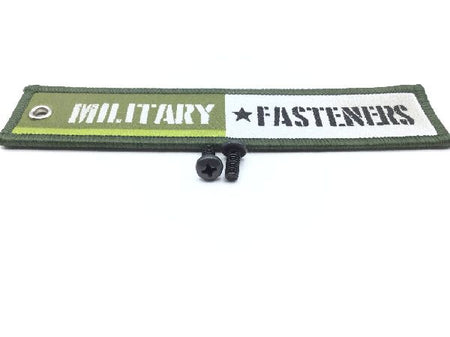

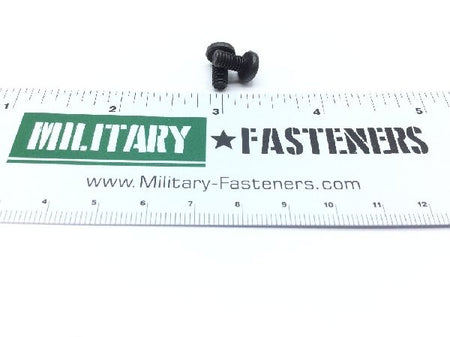

MS35214-40 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Pan

Thread Class

Bearing Surface Of Head Surface Treatment: Oxide
Color: Black
Fastener Length: 0.375 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Nondefinitive Specification/std Data: 3 type and 9c style
Screw Material: Copper alloy
Screw Material Specification: Comp 6 or 7 federal specification single material response or qq-w-321 federal specification single material response comp 6 or 7 federal specification single material response or qq-b-626 qq-b-613
Test Data Document: etc.). individual manufactureer standards etc.). and 96906-ms35214-40 standard (includes industry or association standards
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
