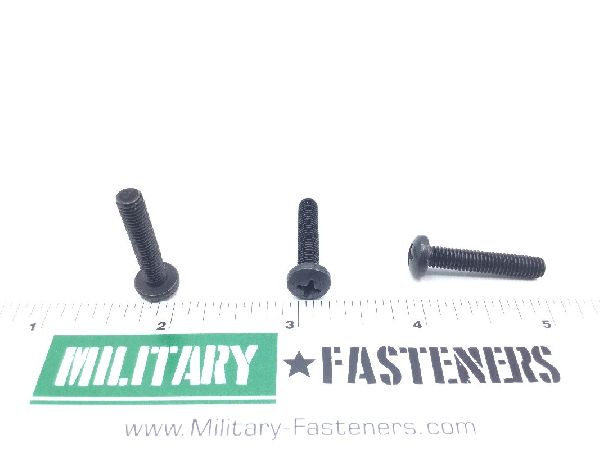

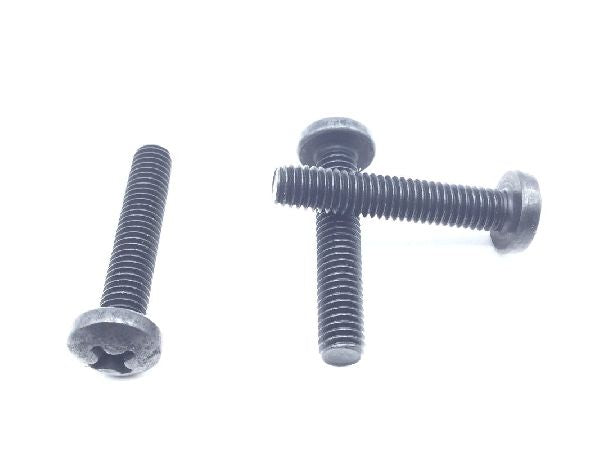

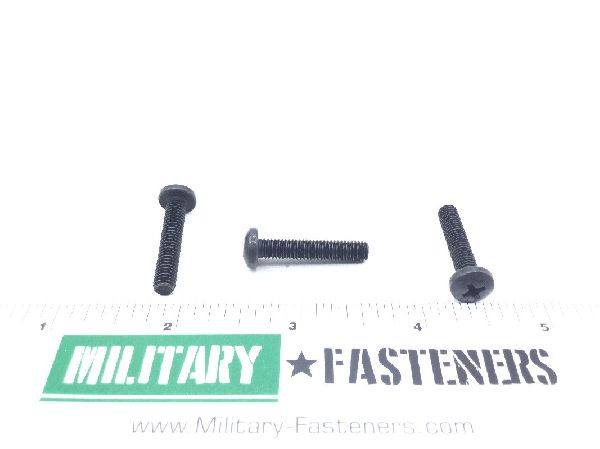

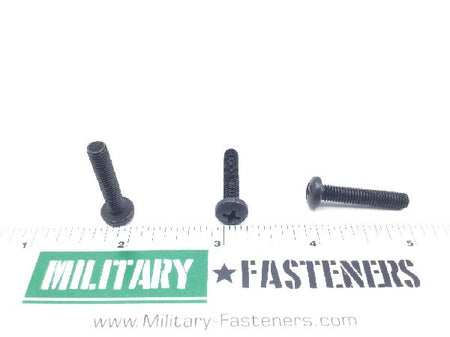

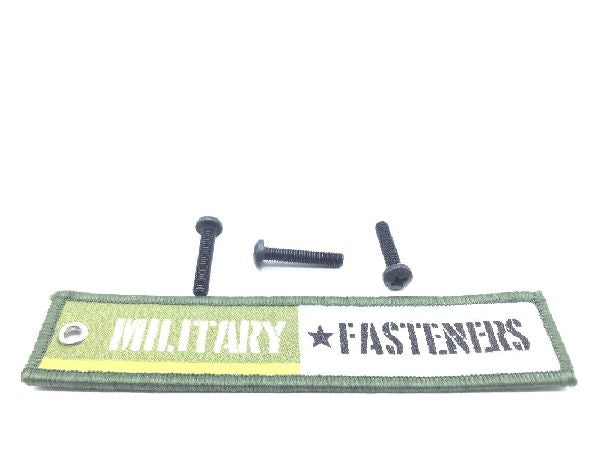

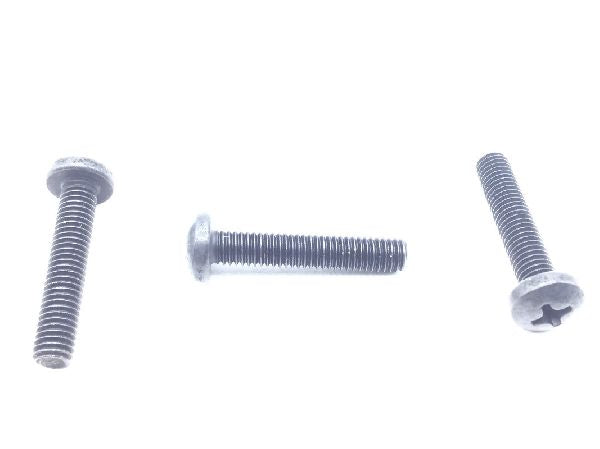

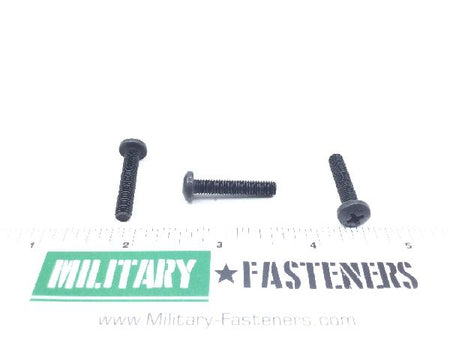

MS35215-59 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.44

Units per Pack 100

Price per Pack $44.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $44.00

Add item to quote

Head Style

Pan

Material

Copper alloy

Thread Class

Fastener Length: 1.000 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: Qq-b-626 federal specification single material response or qq-w-321 federal specification single material response
Min. Tensile Strength (psi): 57000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.938 inches and 1.000 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
