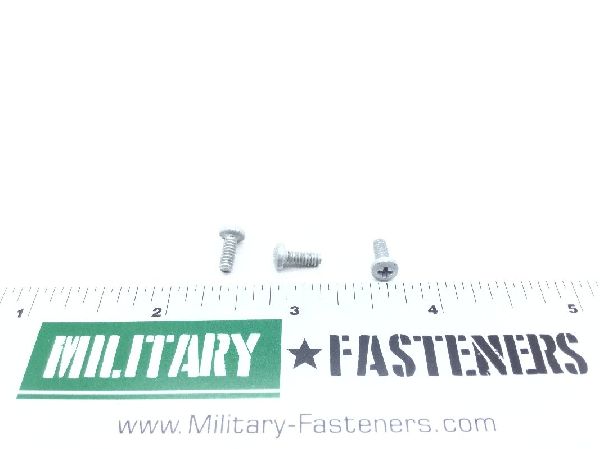

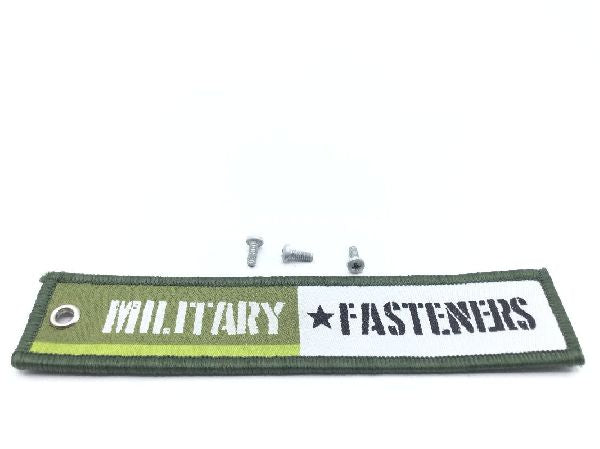

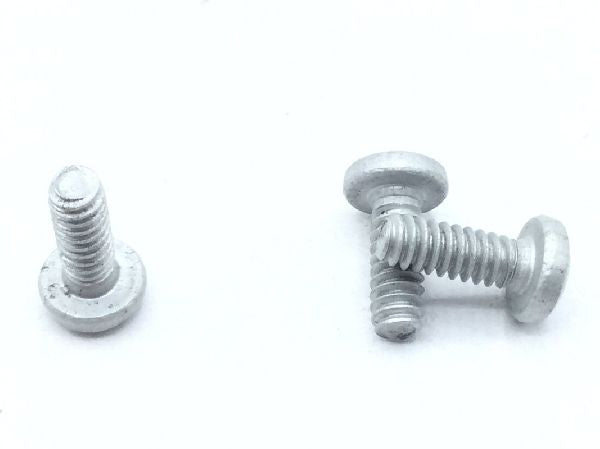

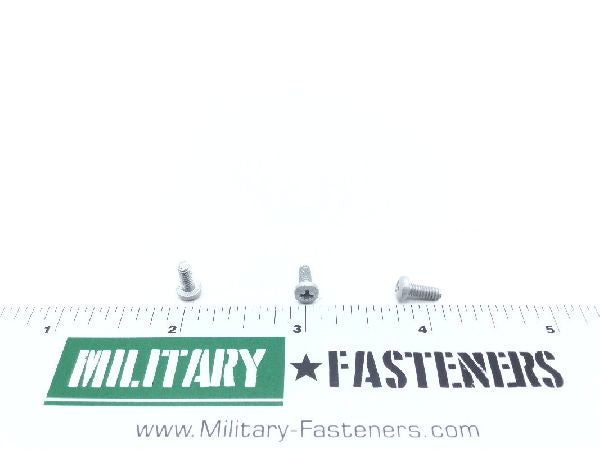

MS35218-13 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.46

Units per Pack 100

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.281 inches and 0.312 inches
Head Height: Between 0.07 inches and 0.08 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 62000 pounds per square inch
Screw Material: Aluminum alloy 2024
Screw Material Specification: Qq-a-225/6 federal specification single material response
Screw Surface Treatment: Anodize
Screw Surface Treatment Specification: Mil-a-8625 military specification single treatment response
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.262 inches and 0.312 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
