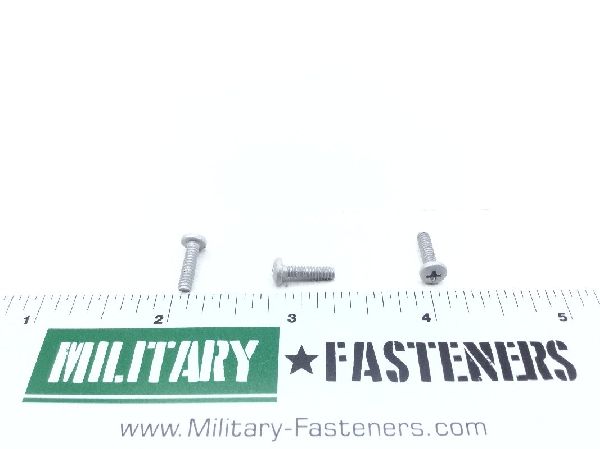

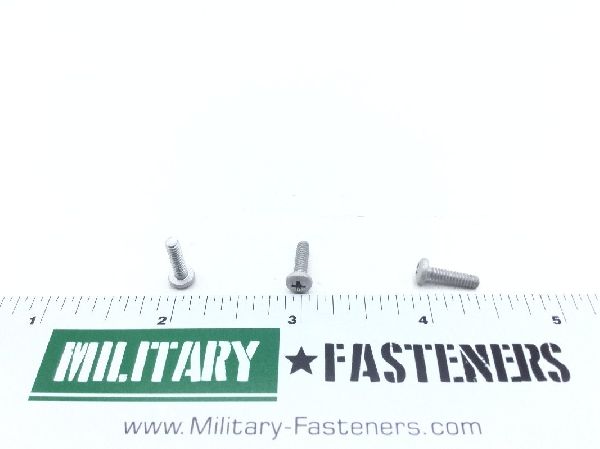

MS35218-15 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.08

Units per Pack 25

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 0.438 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 62000 pounds per square inch
Screw Material: Aluminum alloy
Screw Material Specification: Qq-a-225/6 federal specification single material response
Screw Surface Treatment: Anodize
Screw Surface Treatment Specification: Mil-a-8625 military specification single treatment response
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.388 inches and 0.438 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
