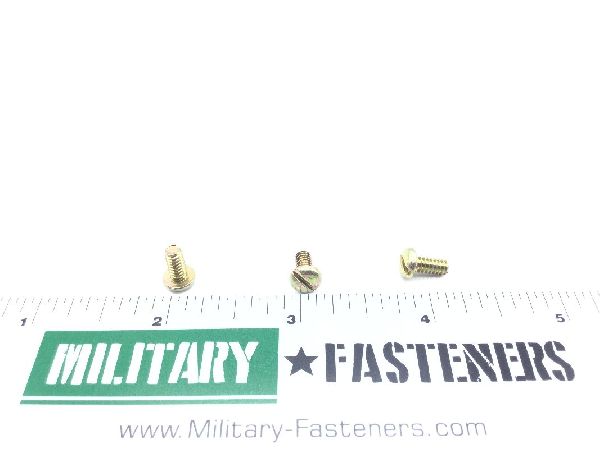

MS35223-27 Machine Screw

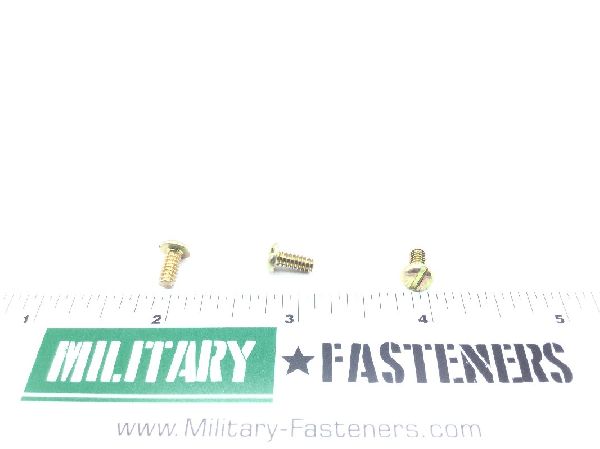

MS35223-27 Machine Screw (2)

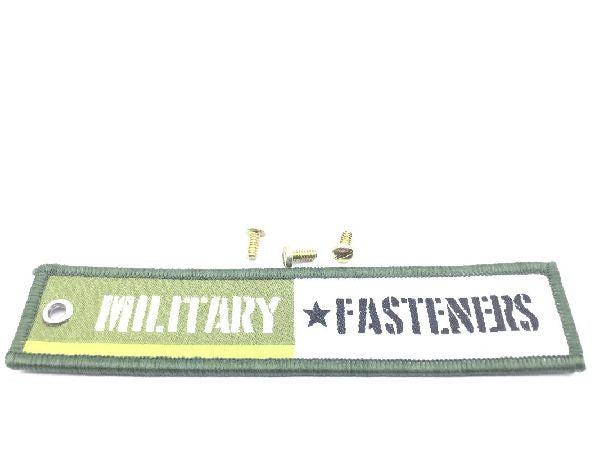

MS35223-27 Machine Screw (3)

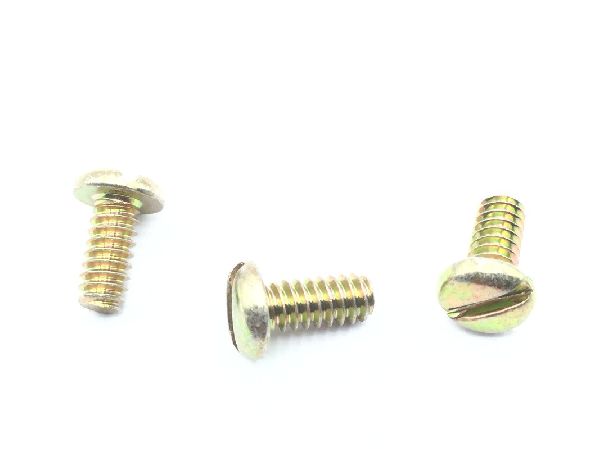

MS35223-27 Machine Screw (4)

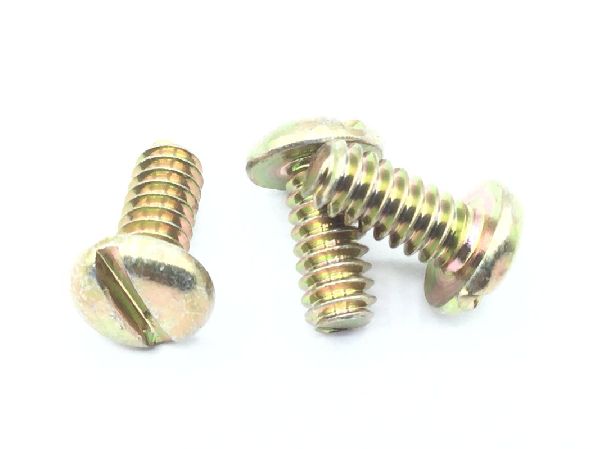

MS35223-27 Machine Screw (5)

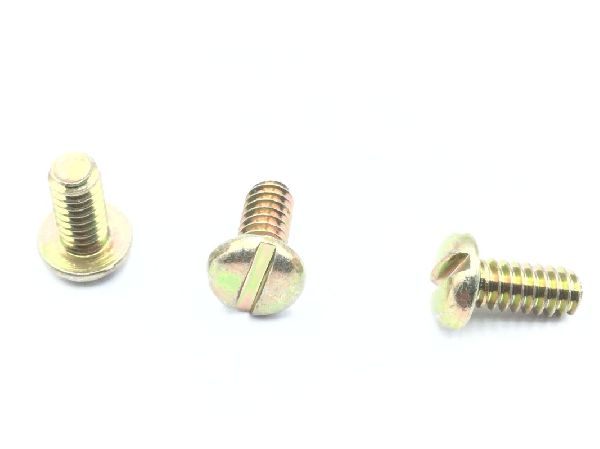

MS35223-27 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35223-27 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.48

Units per Pack 100

Price per Pack $48.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $48.00

Add item to quote

Head Style

Pan no. 2

Thread Class

2a

Fastener Length: 0.312 inches
Head Height: Between 0.072 inches and 0.082 inches
Internal Drive Style: Slot
Nondefinitive Specification/std Data: I type and 9s style
Screw Material: Steel
Screw Surface Treatment: Cadmium and chromate
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.312 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.270 inches and 0.356 inches
