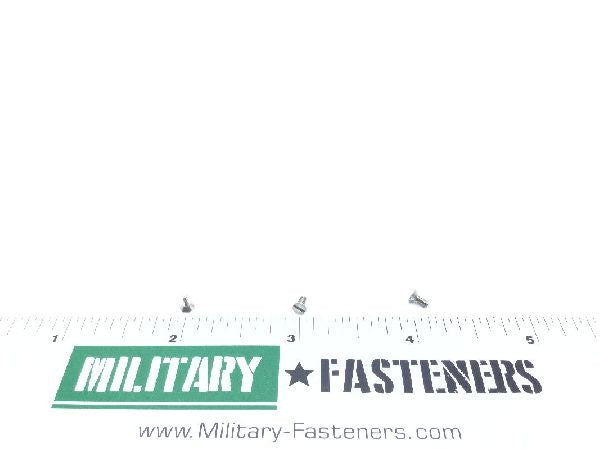

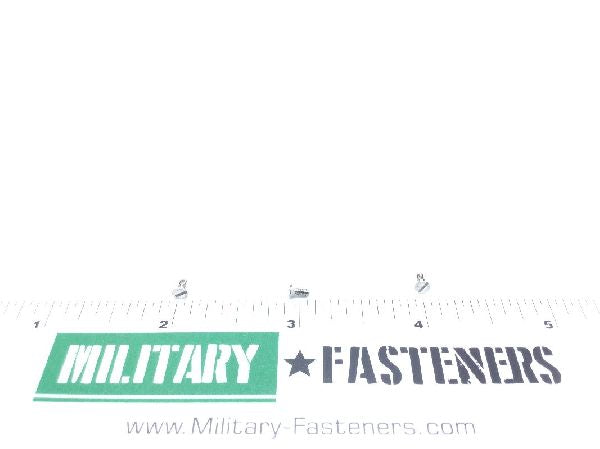

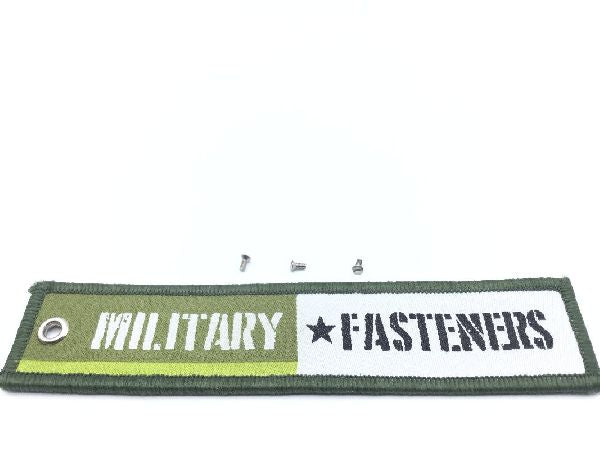

MS35249-2 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Fastener Length: Between 0.156 inches and 0.188 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Stainless Steel
Screw Material Specification: Qq-s-763 federal specification single material response
Screw Surface Treatment: Passivate
Thread Diameter: 0.073 inches
Thread Direction: Right-hand
Thread Length: Between 0.156 inches and 0.188 inches
Thread Qty Per Inch (tpi): 64
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.126 inches and 0.146 inches
