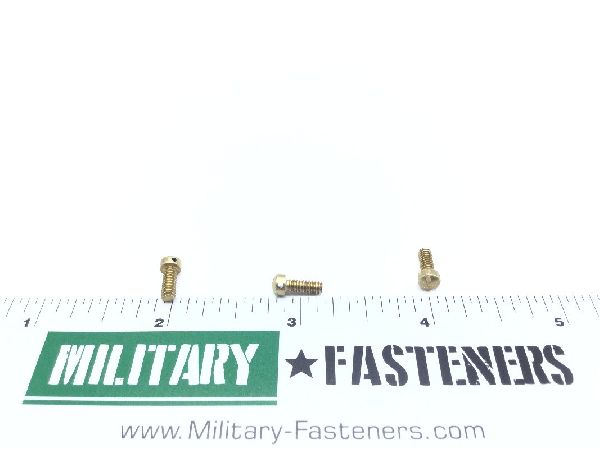

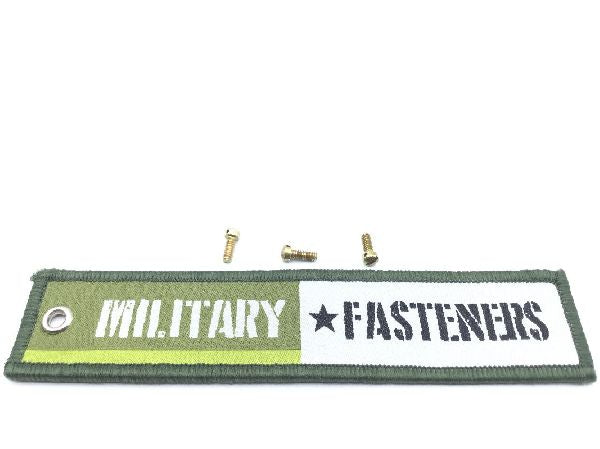

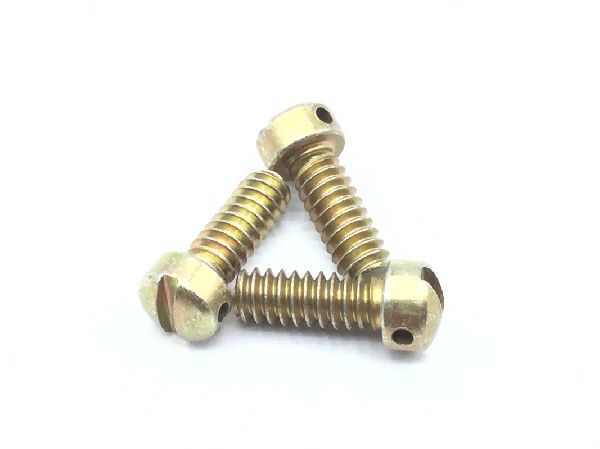

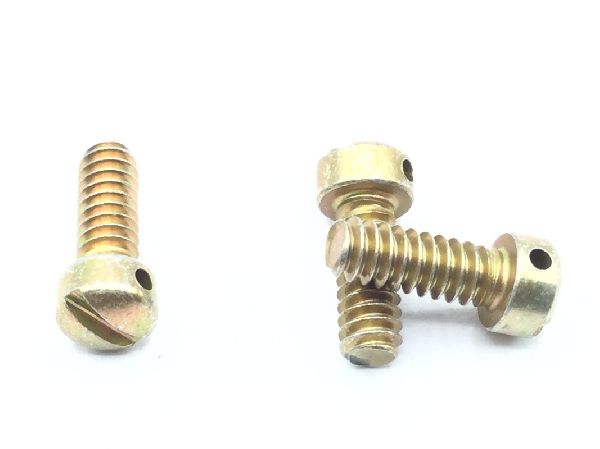

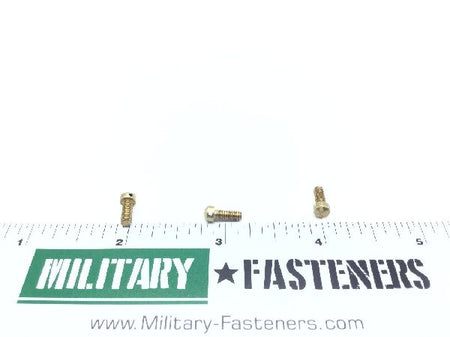

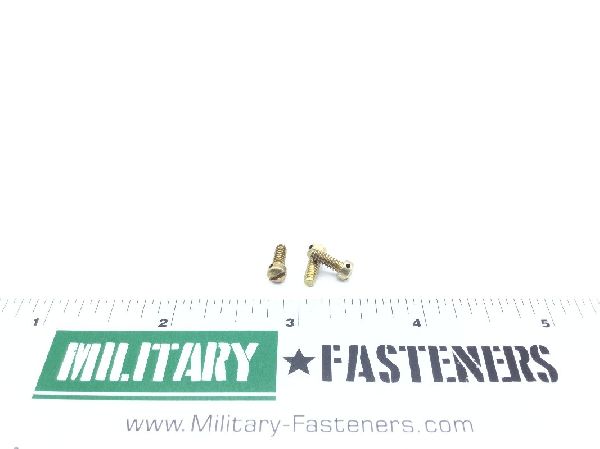

MS35265-14 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.78

Units per Pack 50

Price per Pack $39.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $39.00

Add item to quote

Head Style

Fillister

Material

Steel

Surface Treatment

Qq-p-416 ty2 cl3 federal specification single treatment response

Thread Class

Fastener Length: Between 0.281 inches and 0.312 inches
Head Height: Between 0.072 inches and 0.079 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Material Specification: Qq-s-634 federal specification single material response or qq-s-637 federal specification single material response or 66 federal standard single material response
Min. Tensile Strength (psi): 55000 pounds per square inch
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.231 inches and 0.281 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.166 inches and 0.183 inches
Hole Diameter: 0.037 inches
