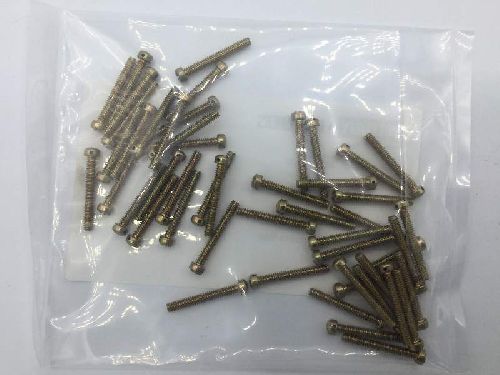

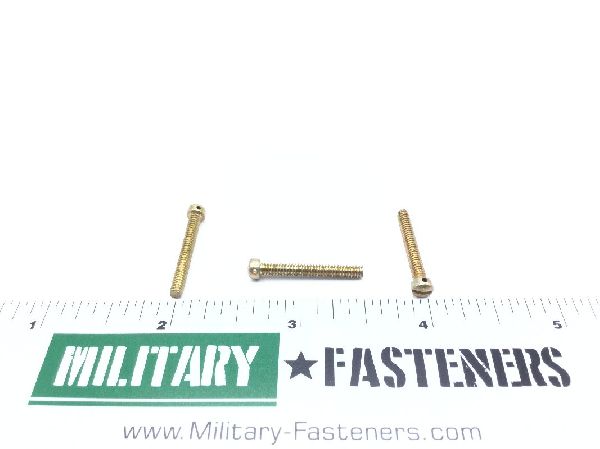

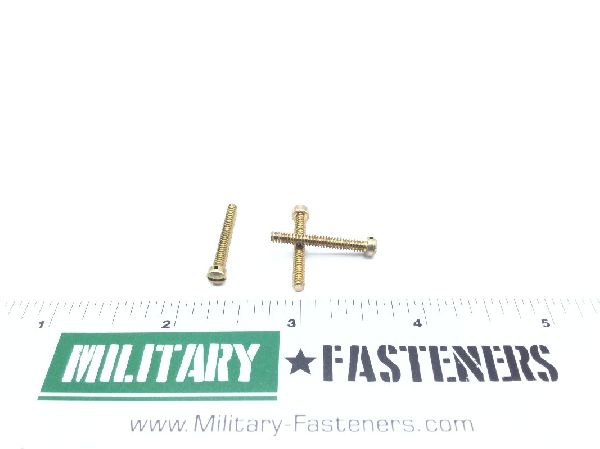

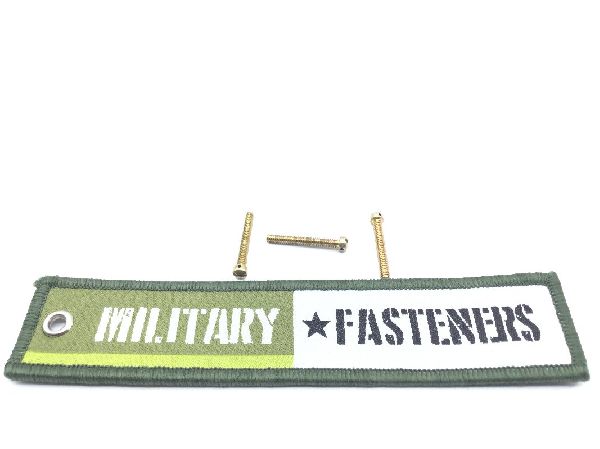

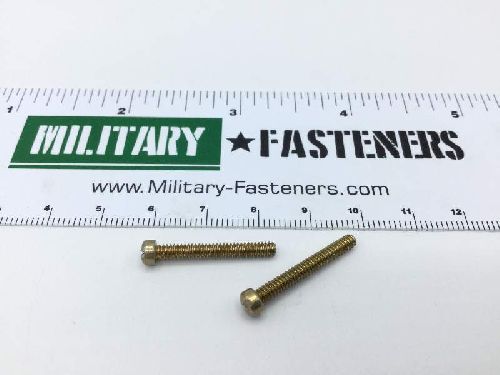

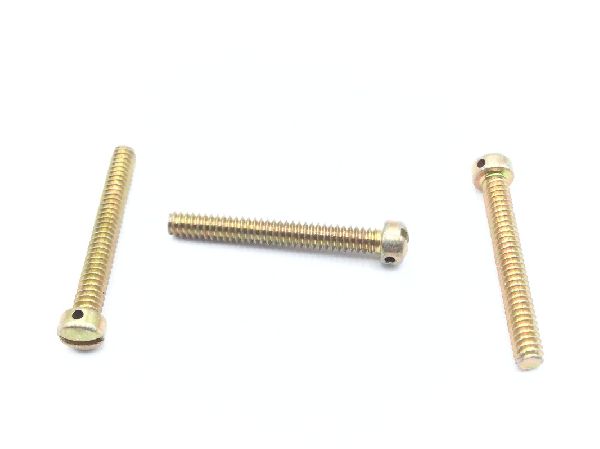

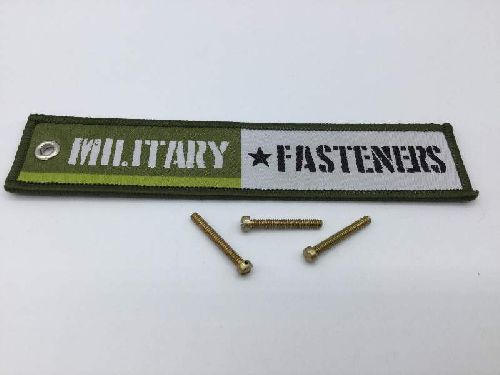

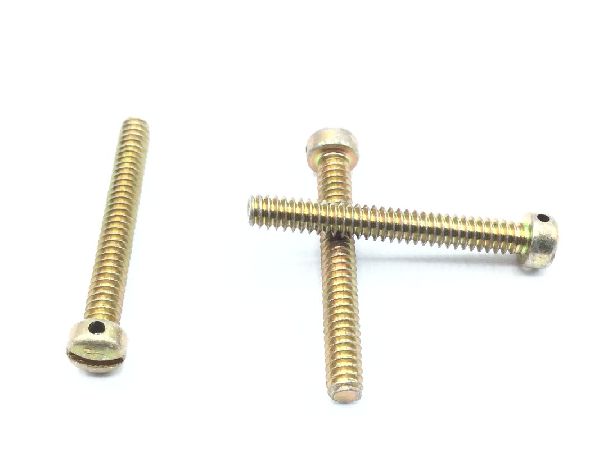

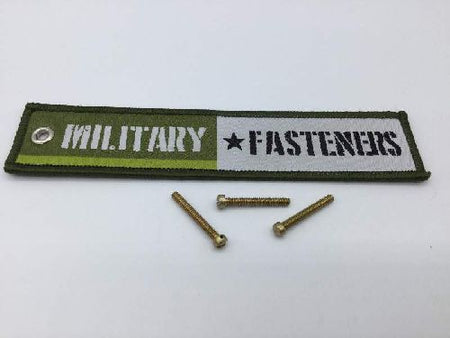

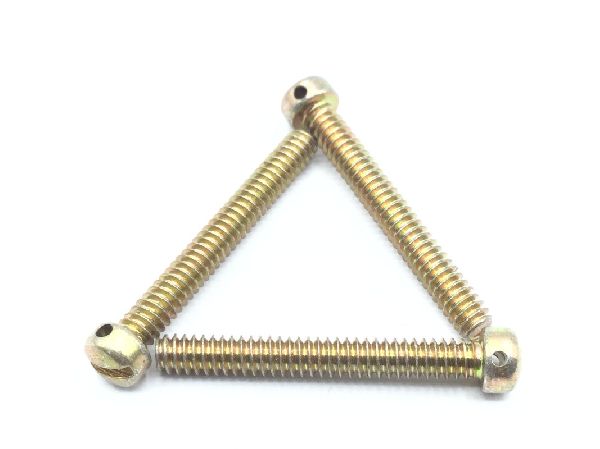

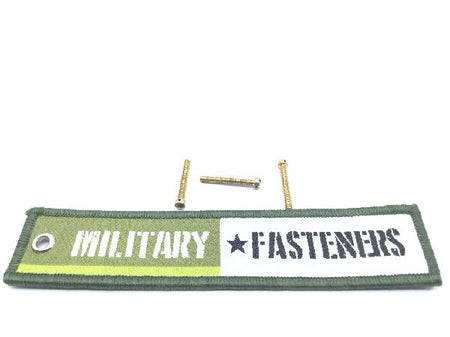

MS35265-20 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Fillister

Thread Class

Fastener Length: 0.875 inches
Head Height: Between 0.072 inches and 0.079 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Qq-s-633 federal specification single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.825 inches and 0.875 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.166 inches and 0.183 inches
Hole Diameter: 0.037 inches
