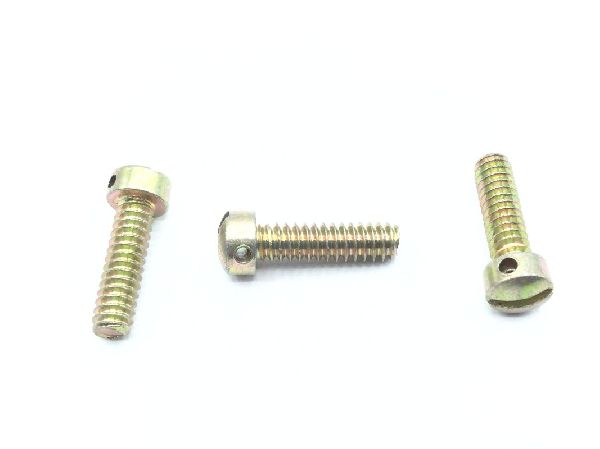

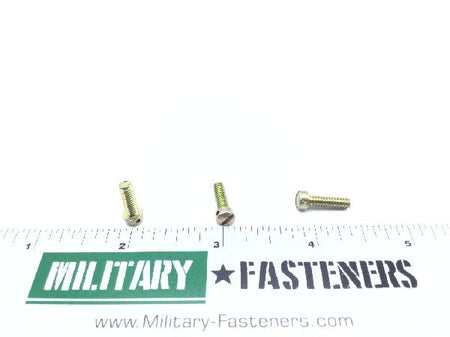

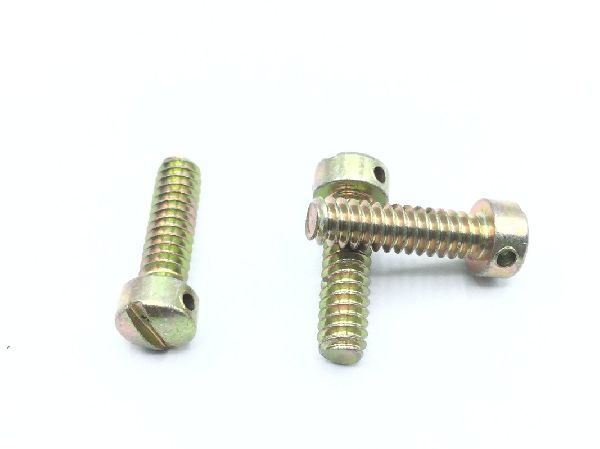

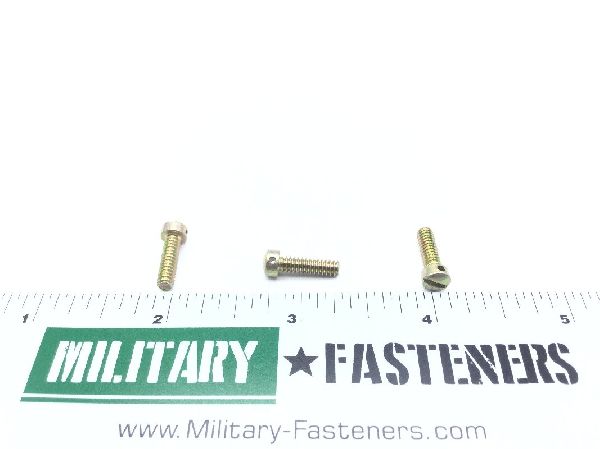

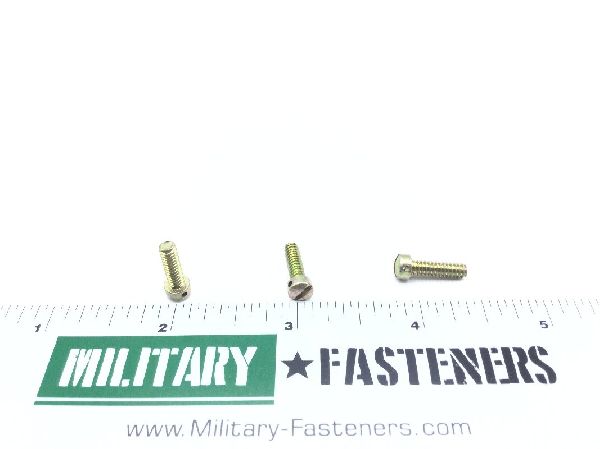

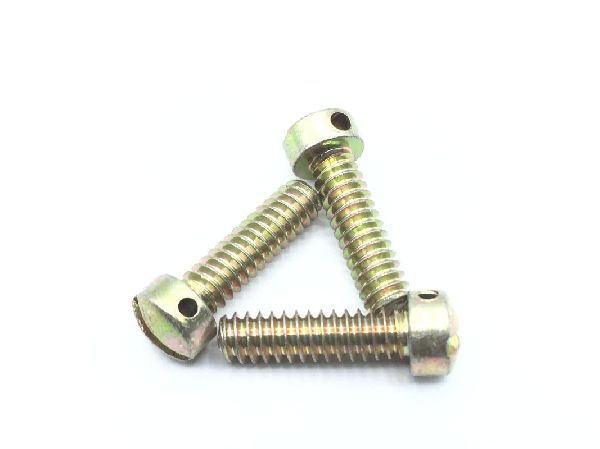

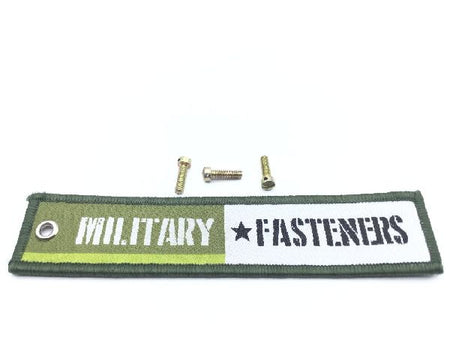

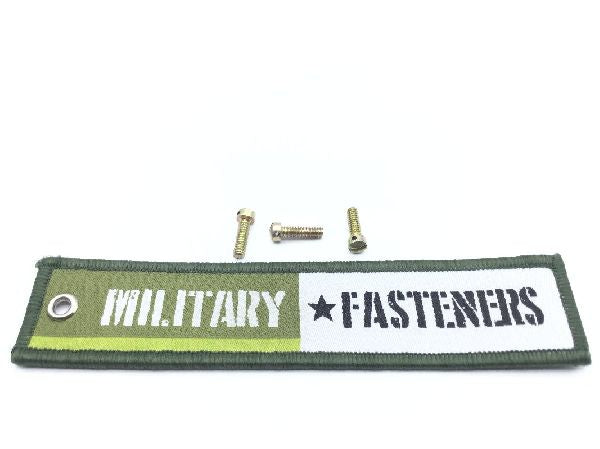

MS35265-30 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.80

Units per Pack 50

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: 0.500 inches
Head Height: Between 0.089 inches and 0.096 inches
Head Hole Configuration Style: Round longitudinal hole
Hole Quantity: 1
Internal Drive Style: Slot
Min. Tensile Strength (psi): 60000 pounds per square inch
Screw Material: Steel
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.208 inches and 0.226 inches
Hole Diameter: 0.031 inches
