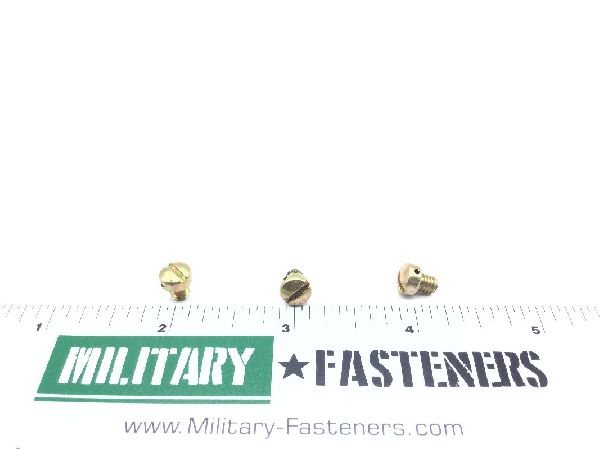

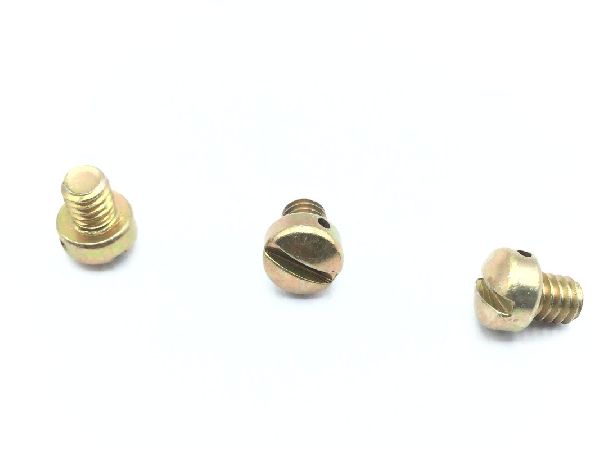

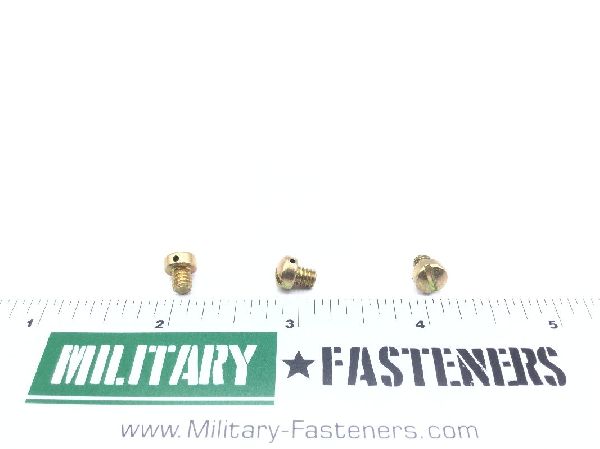

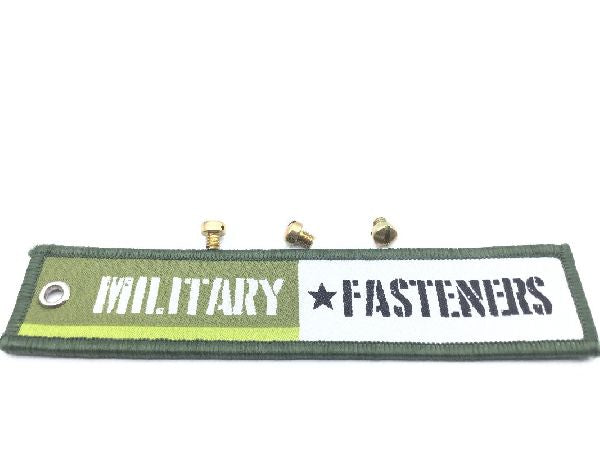

MS35265-40 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Fillister

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 0.156 inches and 0.188 inches
Head Height: Between 0.106 inches and 0.113 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Material Specification: Qq-s-633 federal specification single material response
Min. Tensile Strength (psi): 55000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.126 inches and 0.188 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.250 inches and 0.270 inches
Hole Diameter: 0.046 inches
