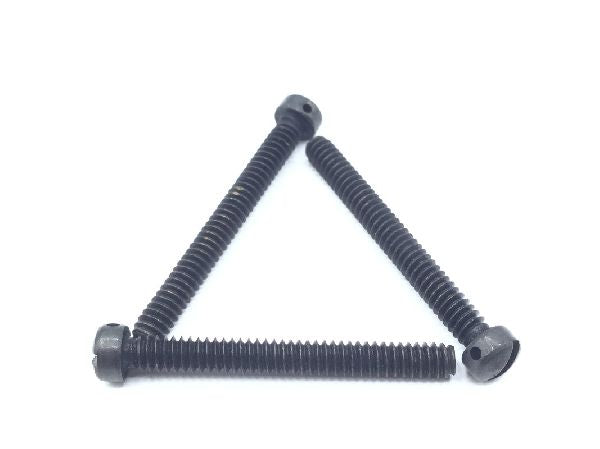

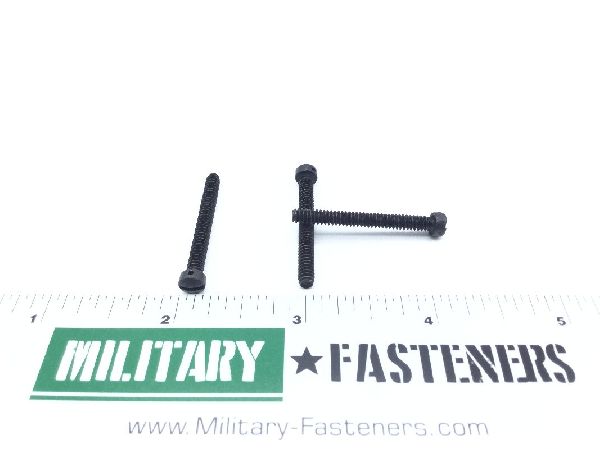

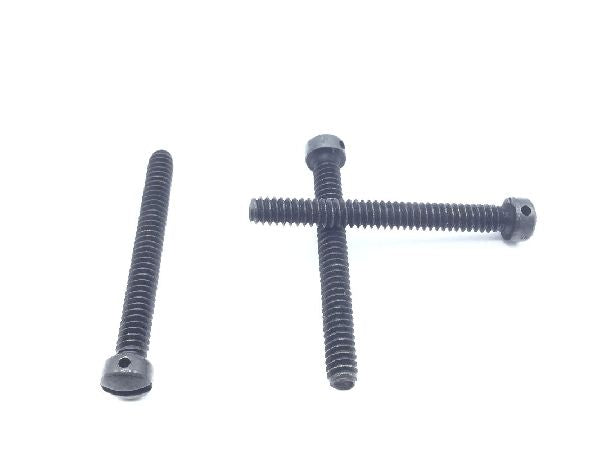

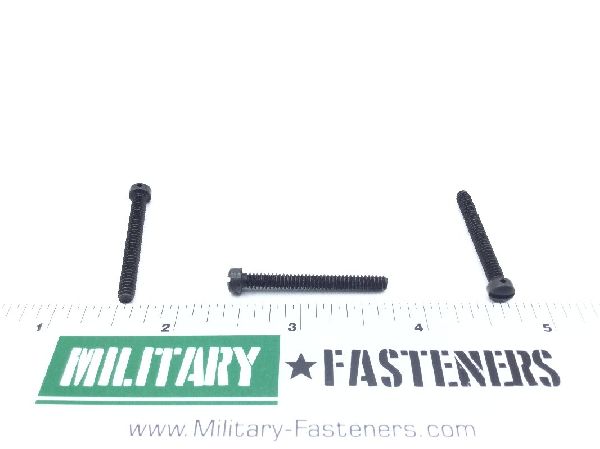

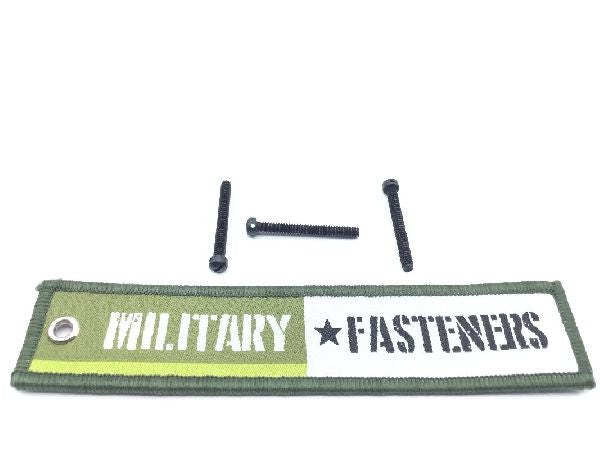

MS35273-35 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Fillister

Thread Class

Fastener Length: 1.250 inches
Head Height: Between 0.089 inches and 0.096 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Min. Tensile Strength (psi): 57000 pounds per square inch
Screw Material: Copper alloy
Screw Material Specification: Qq-b-626 federal specification single material response or qq-w-321 federal specification single material response
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 1.188 inches and 1.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.208 inches and 0.226 inches
Hole Diameter: 0.046 inches
