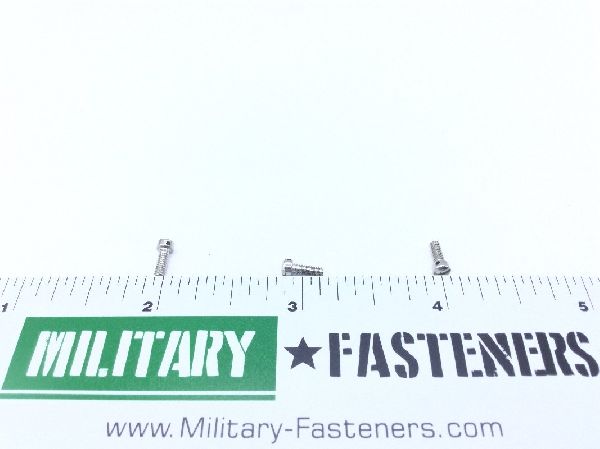

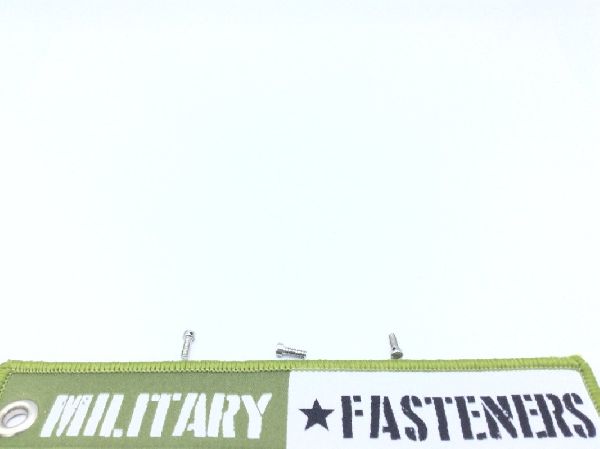

MS35275-203 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.21

Units per Pack 25

Price per Pack $30.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $30.25

Add item to quote

Head Style

Fillister

Thread Class

Departure From Cited Document: As modified by material
Fastener Length: 0.250 inches
Head Height: Between 0.055 inches and 0.062 inches
Internal Drive Style: Slot
Nondefinitive Specification/std Data: 1 type and 5s style
Screw Material: Stainless Steel
Screw Surface Treatment: Passivate
Test Data Document: Etc.).
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: 0.250 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.124 inches and 0.140 inches
