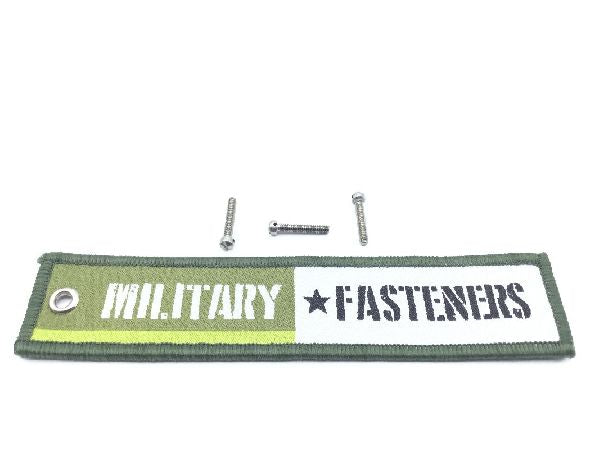

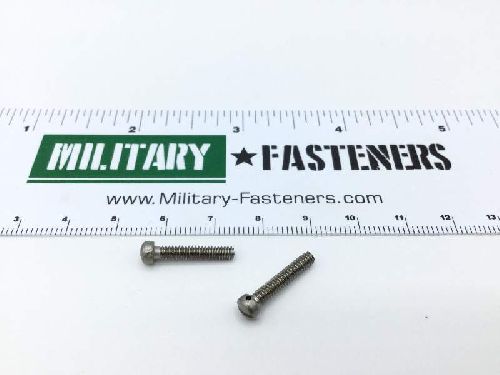

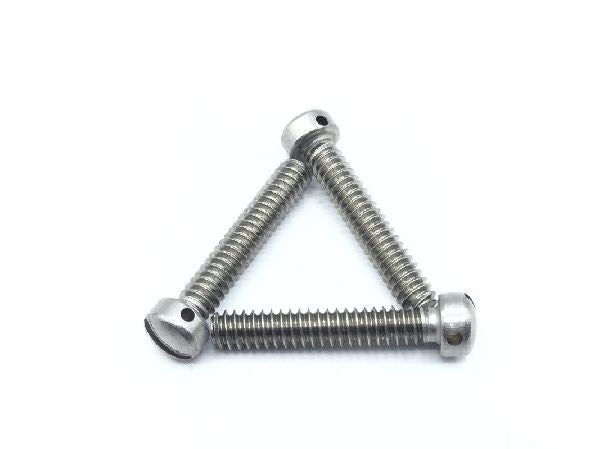

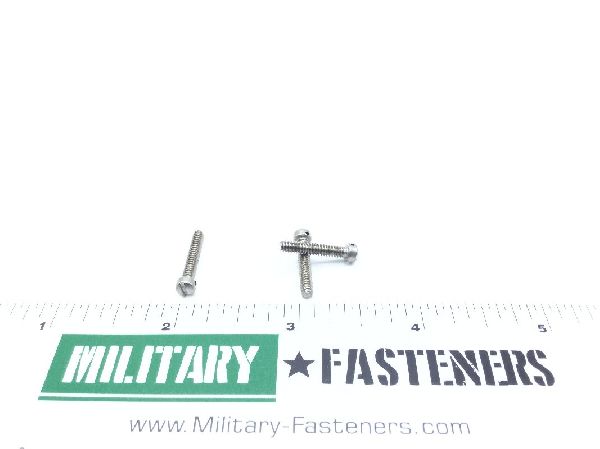

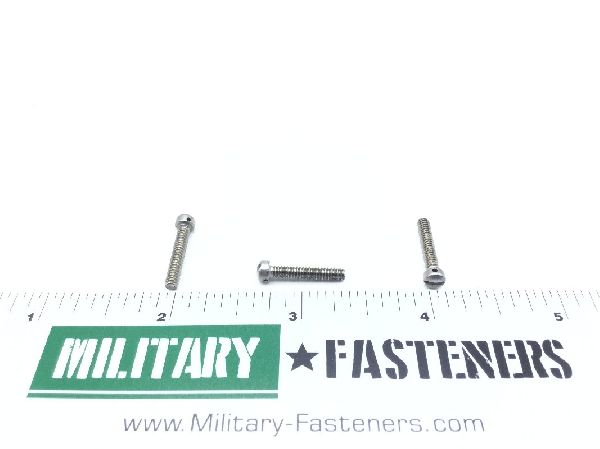

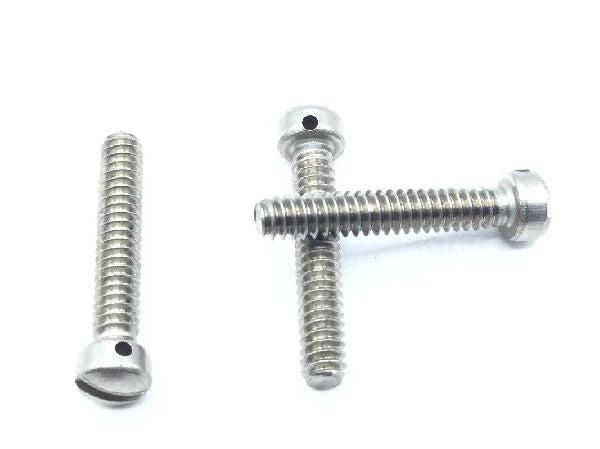

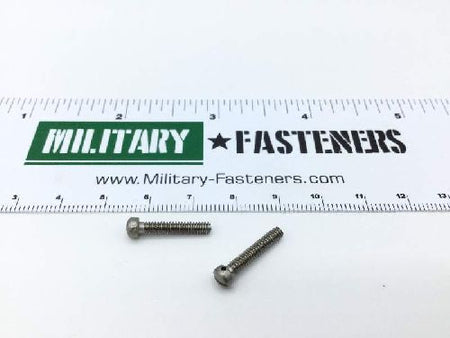

MS35275-218 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Fillister

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 0.625 inches
Head Height: Between 0.072 inches and 0.079 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.575 inches and 0.625 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.166 inches and 0.183 inches
Hole Diameter: 0.037 inches
