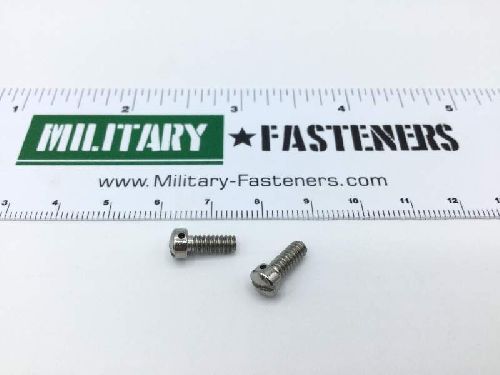

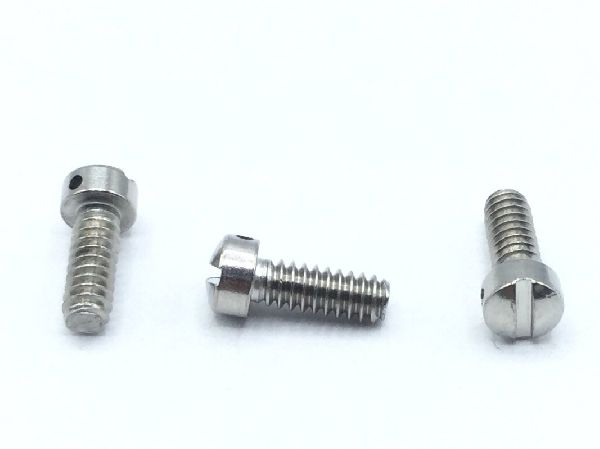

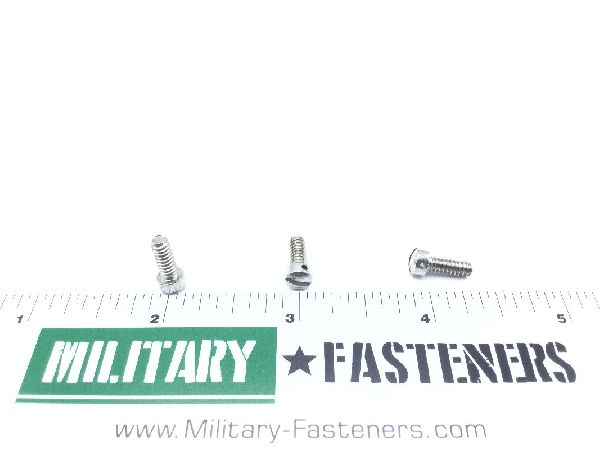

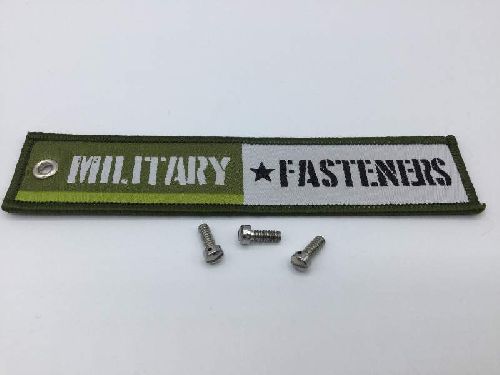

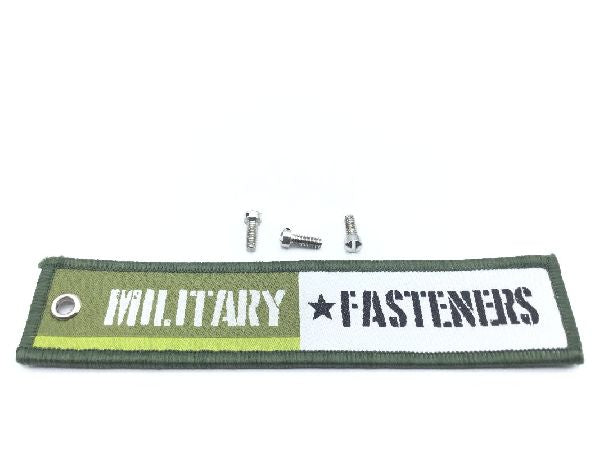

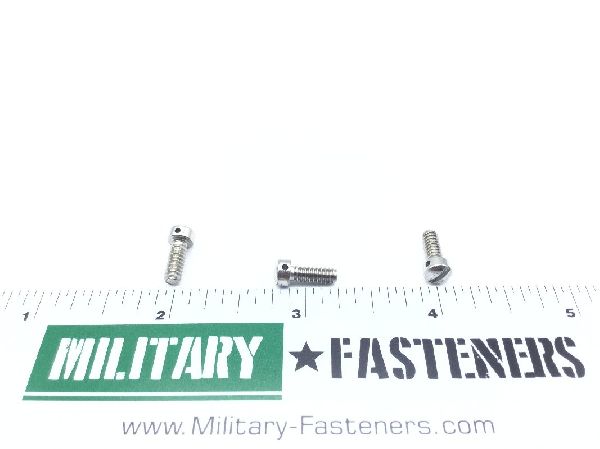

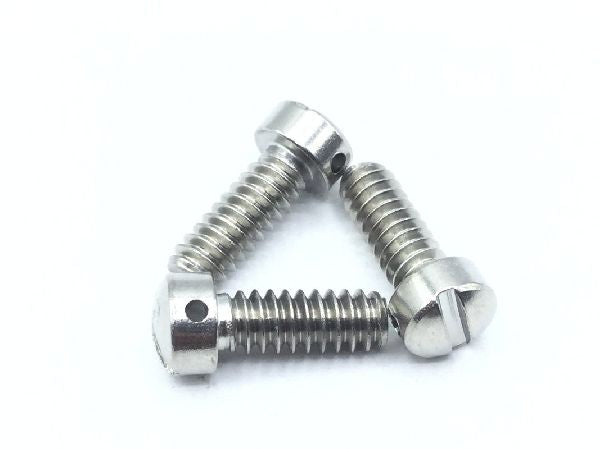

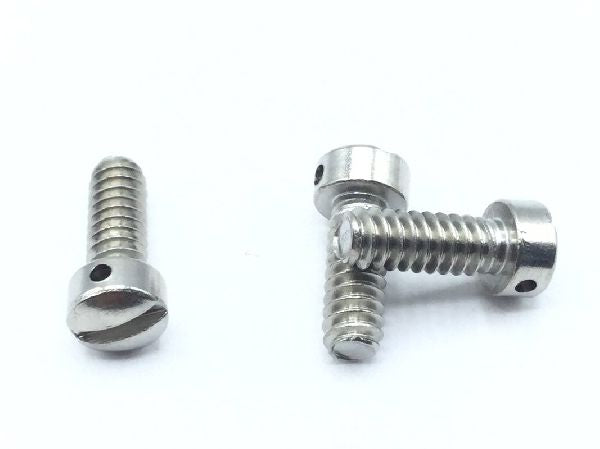

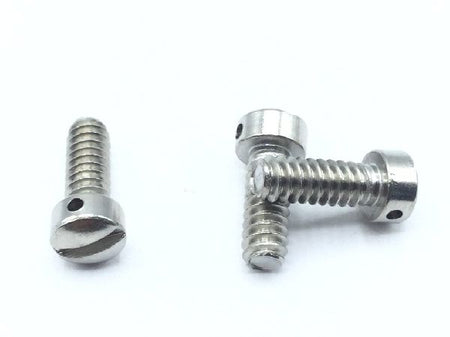

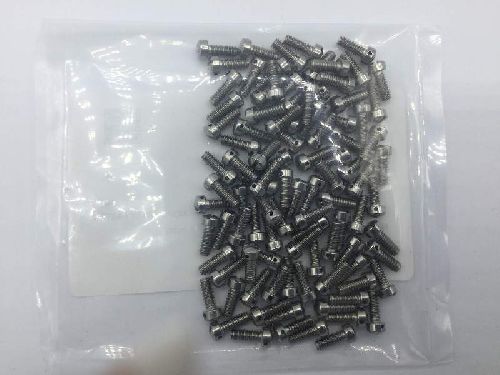

MS35275-228 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.90

Units per Pack 50

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: Between 0.344 inches and 0.375 inches
Head Height: Between 0.089 inches and 0.096 inches
Head Hole Configuration Style: Round longitudinal hole
Hole Quantity: 1
Internal Drive Style: Slot
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Stainless Steel
Screw Material Specification: Qq-s-763 federal specification single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-55 federal specification single treatment response
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.282 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.208 inches and 0.226 inches
Hole Diameter: 0.046 inches
