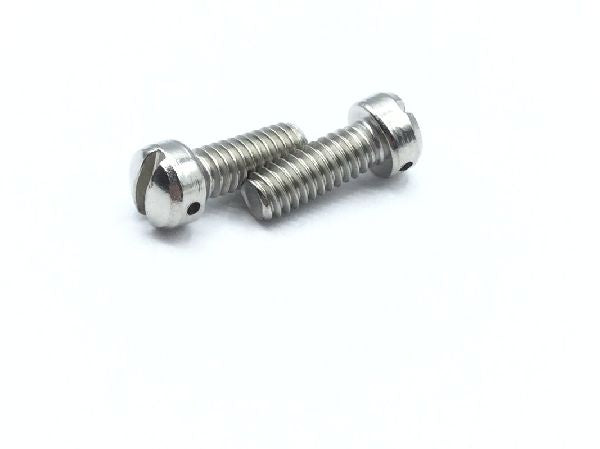

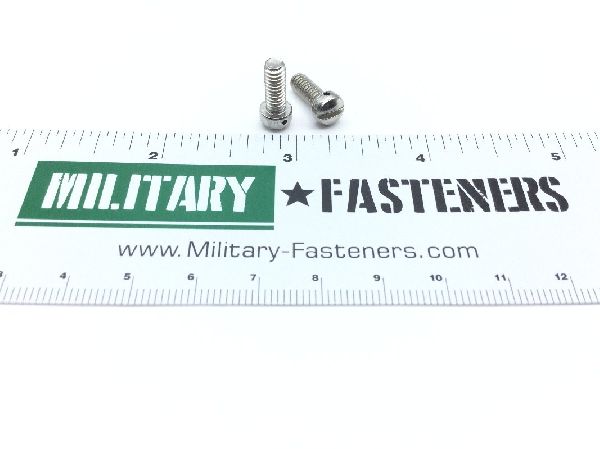

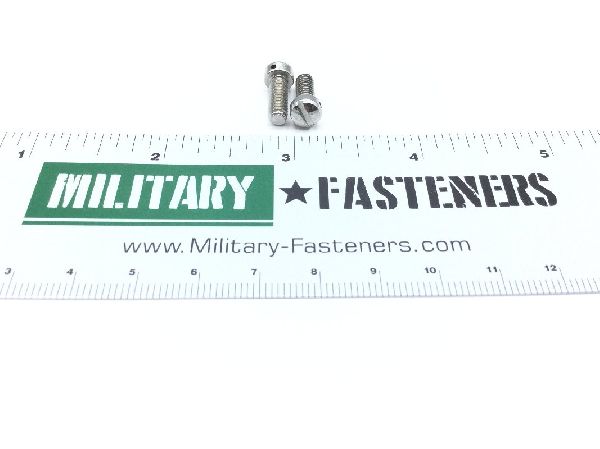

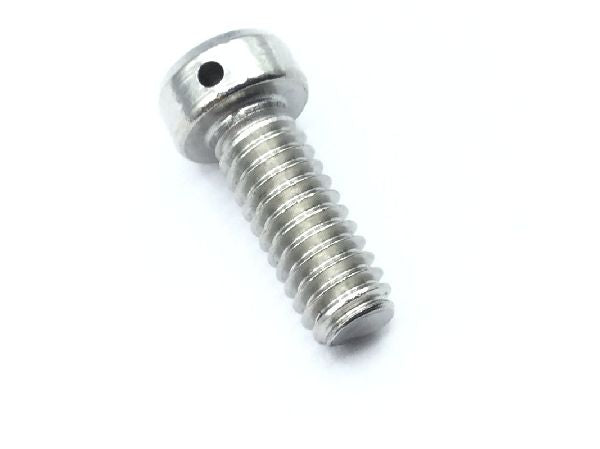

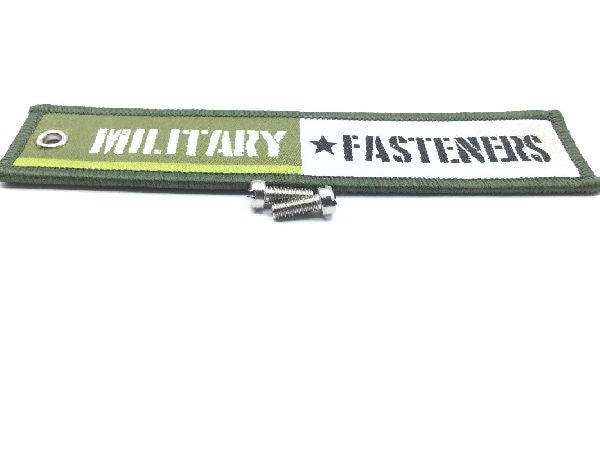

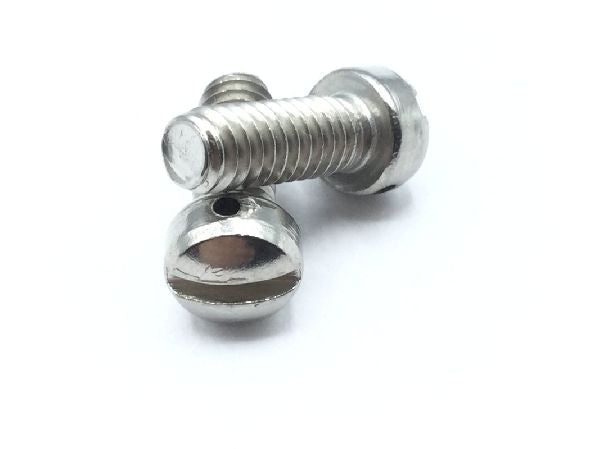

MS35275-244 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: 0.437 inches
Head Height: Between 0.106 inches and 0.113 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Steel comp
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.437 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.250 inches and 0.270 inches
Hole Diameter: 0.031 inches
