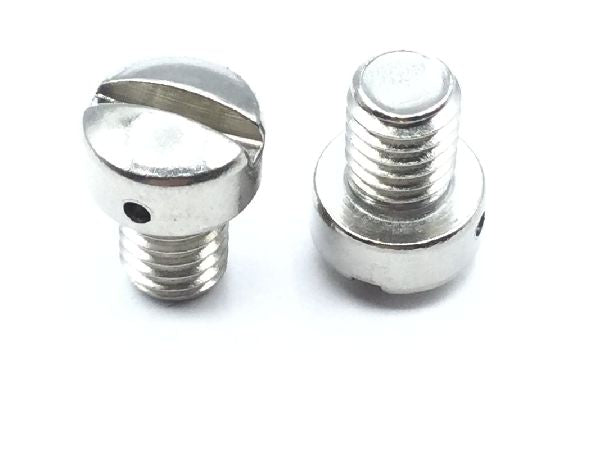

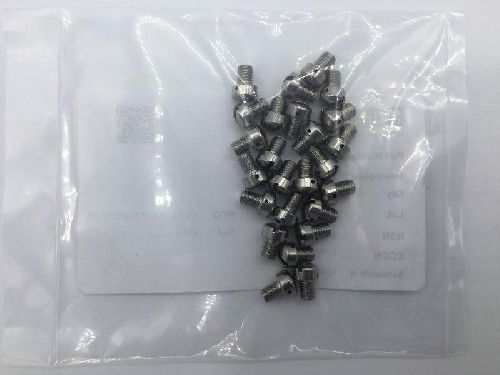

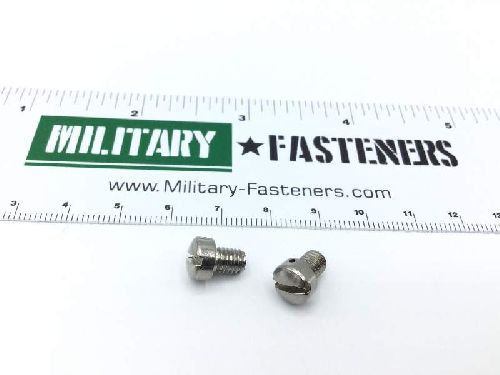

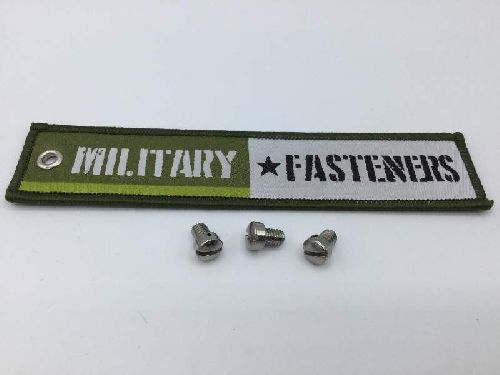

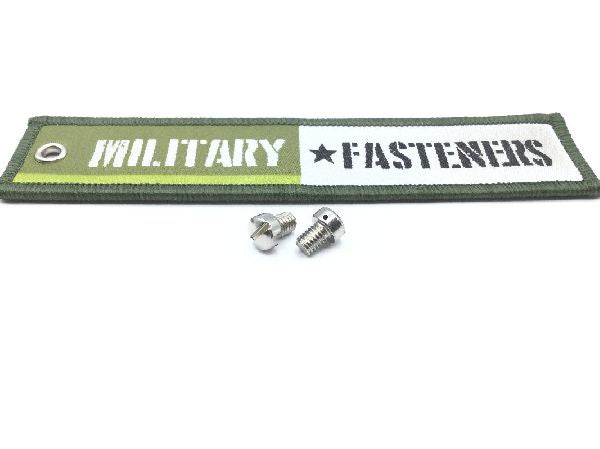

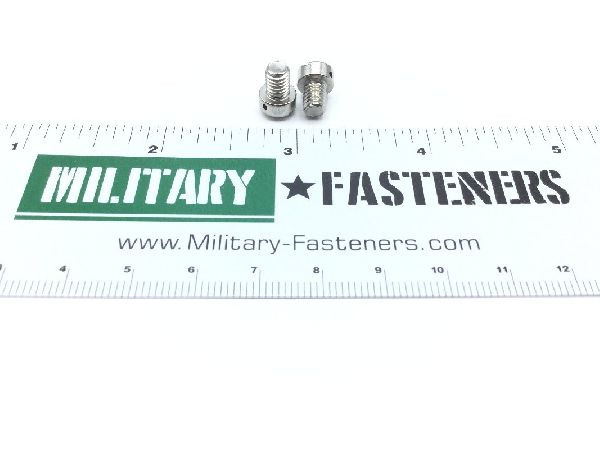

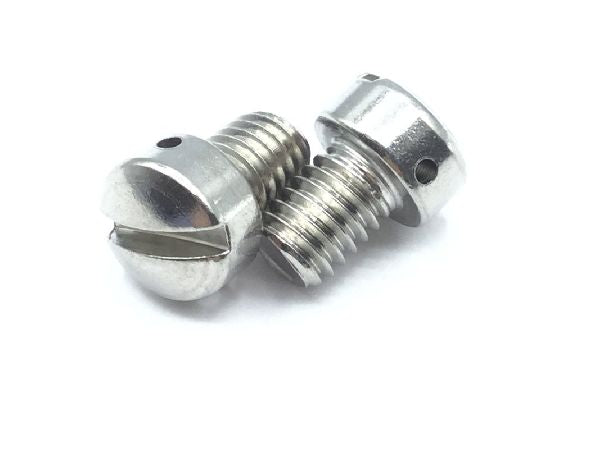

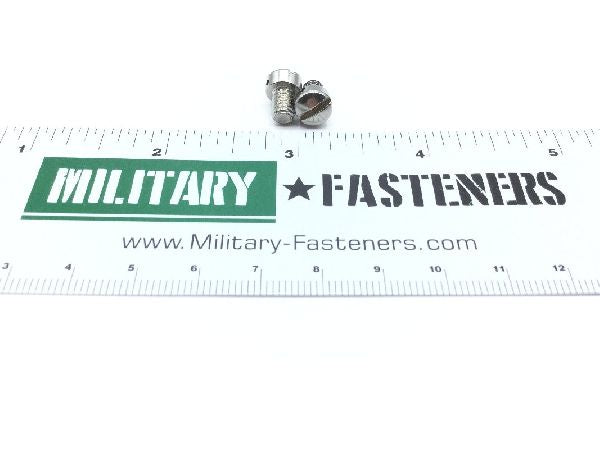

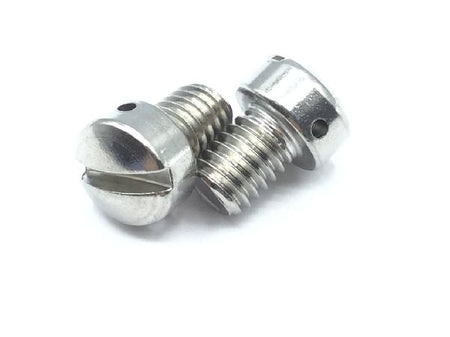

MS35276-259 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.10

Units per Pack 25

Price per Pack $52.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.50

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: Between 0.219 inches and 0.250 inches
Head Height: Between 0.123 inches and 0.130 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 1 type and 5s style
Screw Material: Stainless Steel
Screw Material Specification: 66 federal standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.188 inches and 0.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.292 inches and 0.313 inches
Hole Diameter: 0.046 inches
