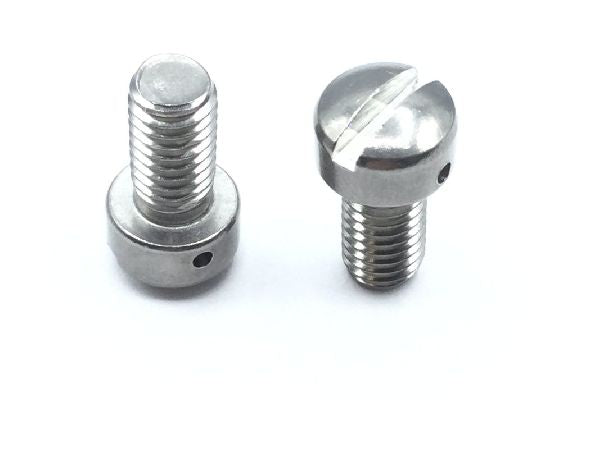

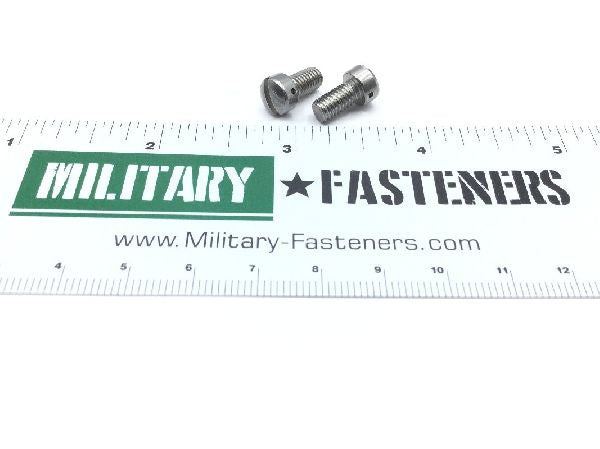

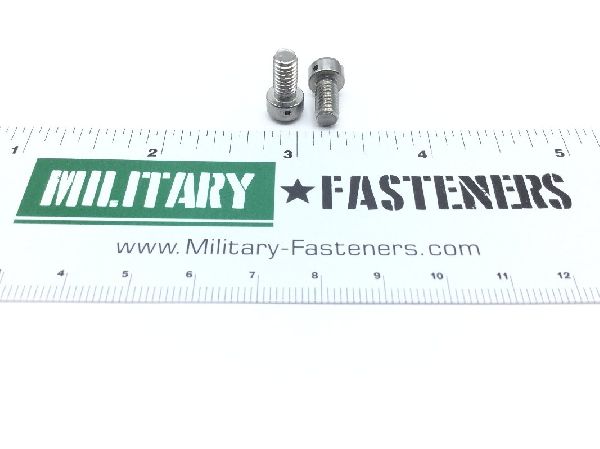

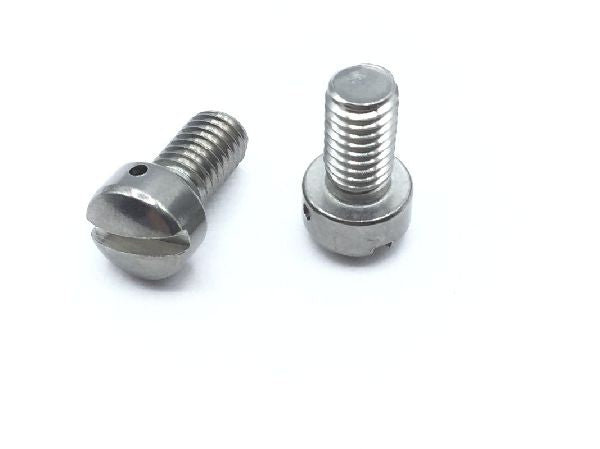

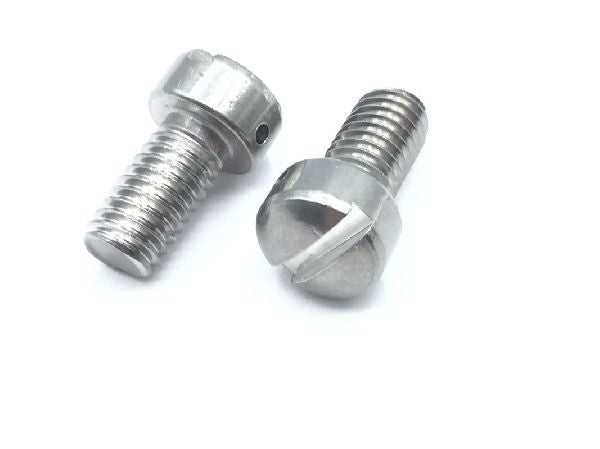

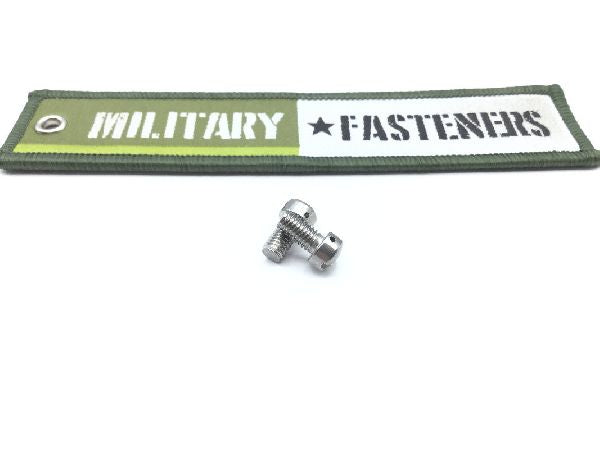

MS35276-261 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.92

Units per Pack 50

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Head Style

Fillister

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: 0.375 inches
Head Height: Between 0.123 inches and 0.130 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Steel
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.312 inches and 0.375 inches
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.292 inches and 0.313 inches
Hole Diameter: 0.046 inches
