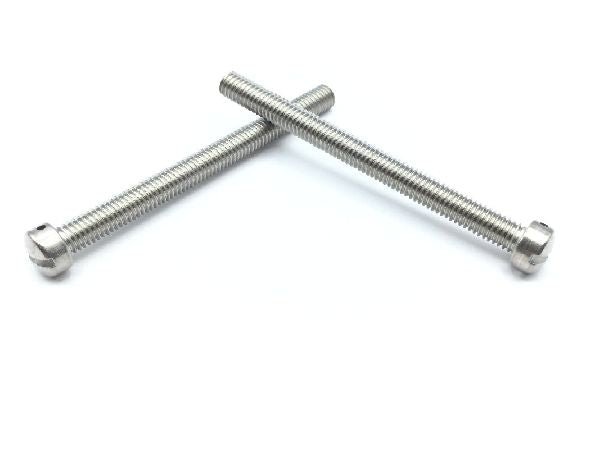

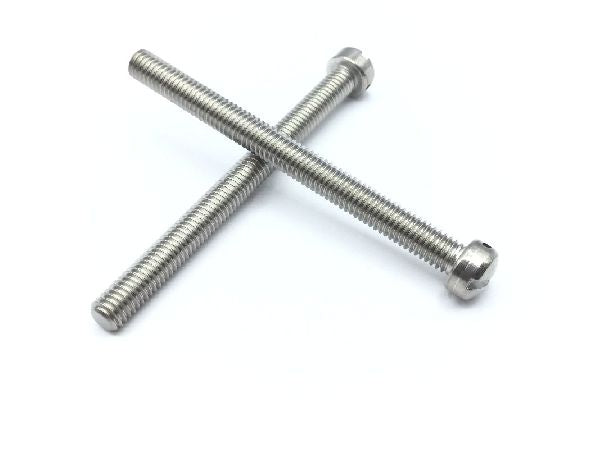

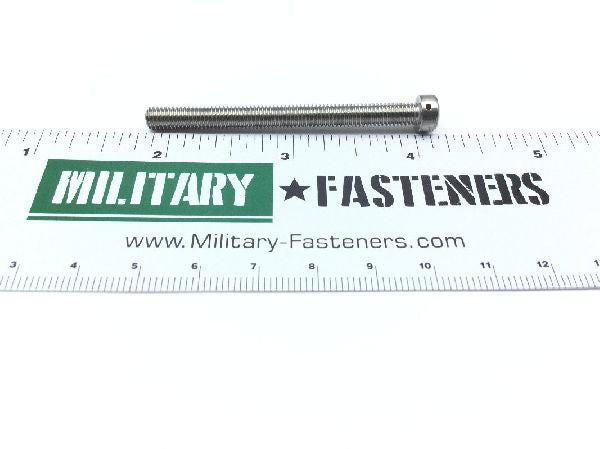

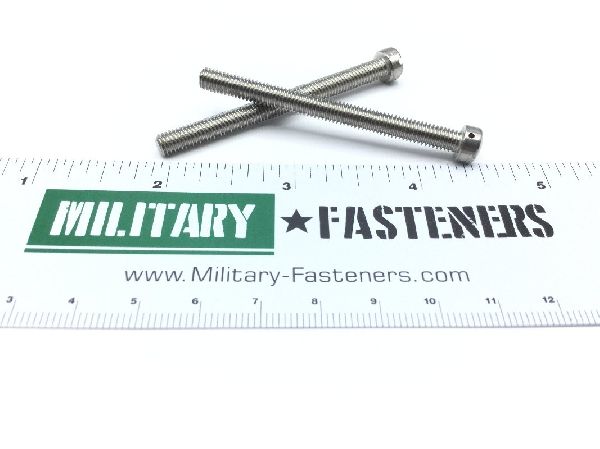

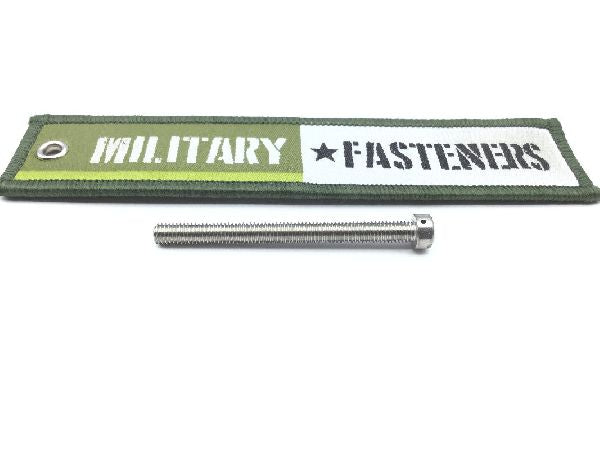

MS35276-272 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Fillister

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 2.156 inches and 2.250 inches
Head Height: Between 0.123 inches and 0.130 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Material Specification: Mil-s-1697 military specification single material response
Min. Tensile Strength (psi): 80000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 1.750 inches
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.292 inches and 0.313 inches
Hole Diameter: 0.046 inches
