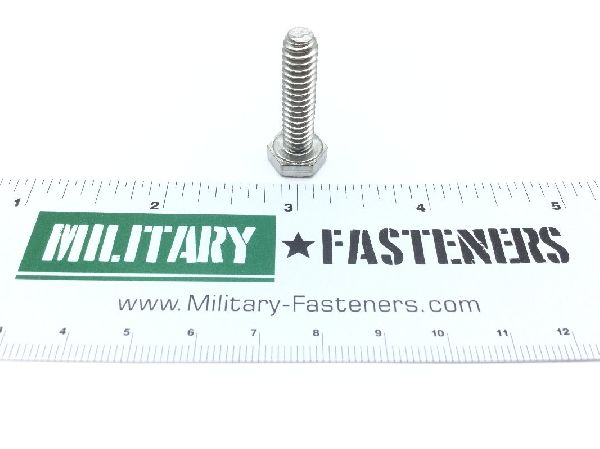

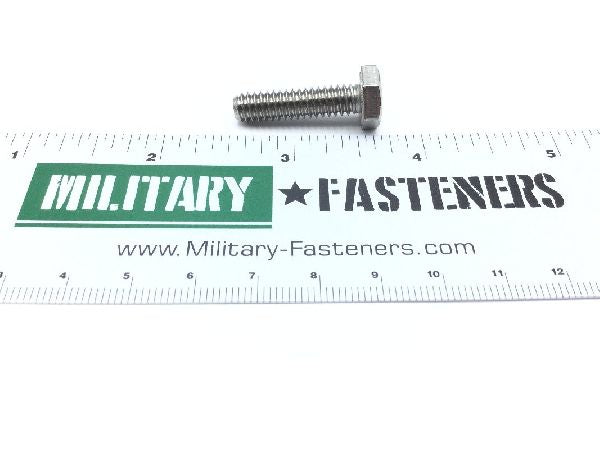

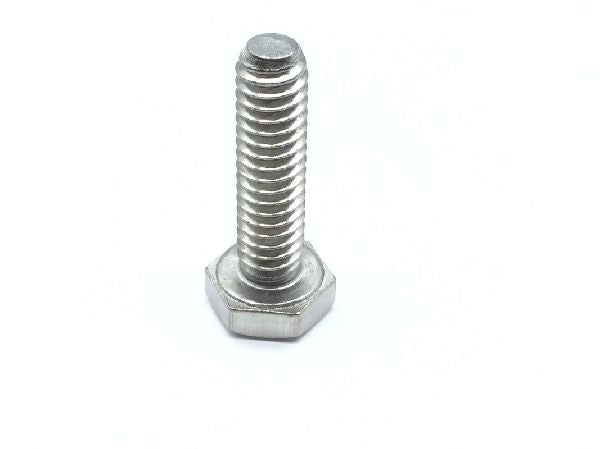

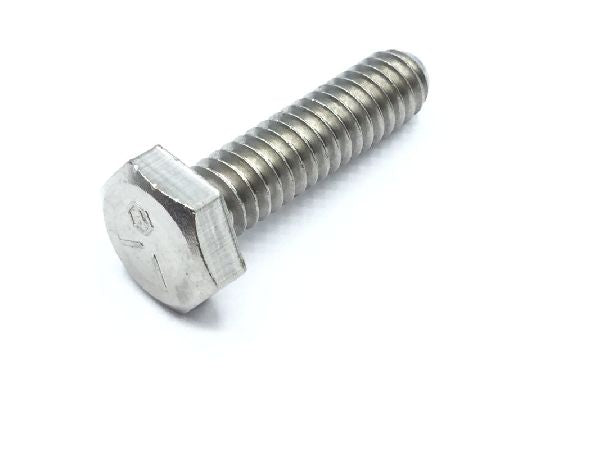

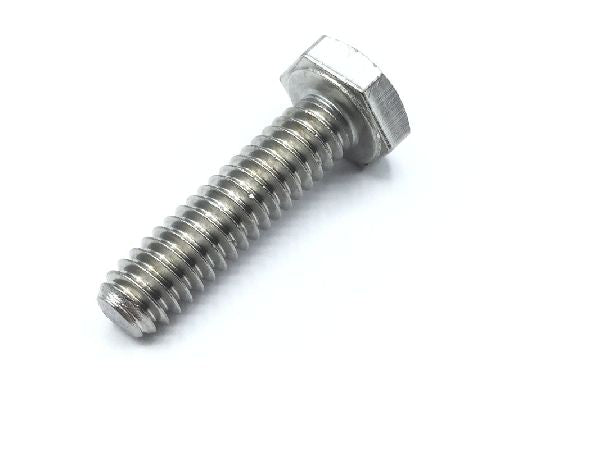

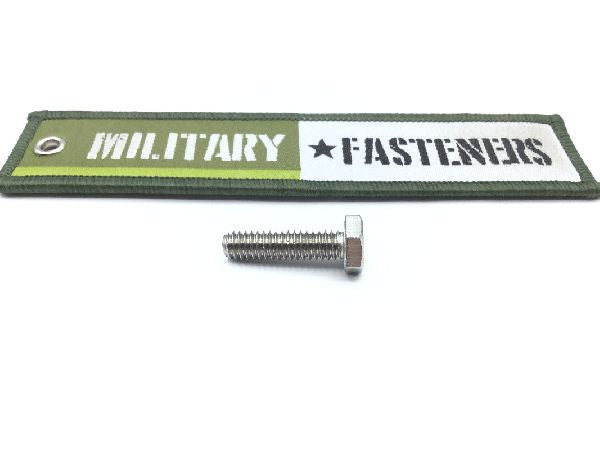

MS35307-308 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.58

Units per Pack 25

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 1.000 inches
Hardness Rating: 80.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Iii End Application: Mrap-rg-33 armored utility vehicle (auv); mrap - cougar ambulance; mrap - m-atv with cs13 pop and sne; mrap - cougar tow; mrap - cougar sabr/tow
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 2 type or 10p style
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
