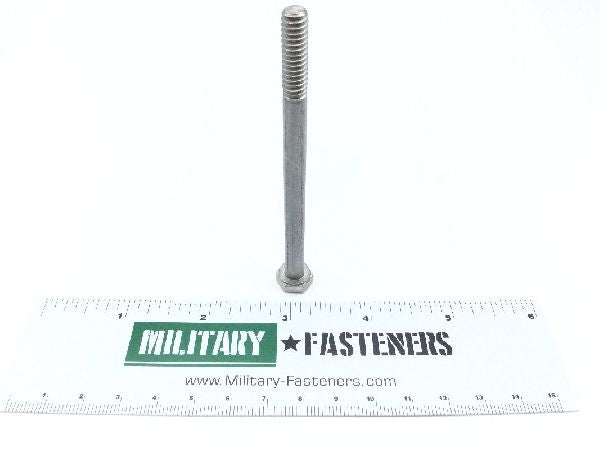

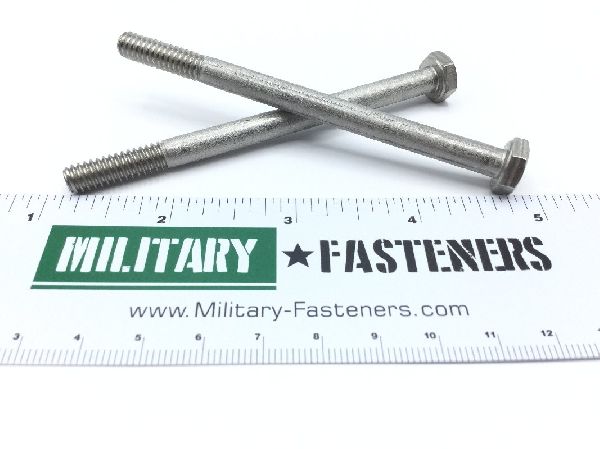

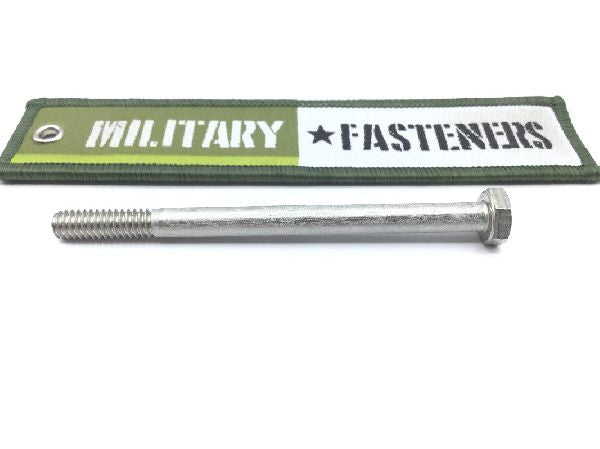

MS35307-320 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 301 or steel comp 302 or steel comp 303 or steel comp 303f or steel comp 385 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 3.406 inches and 3.500 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.938 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
