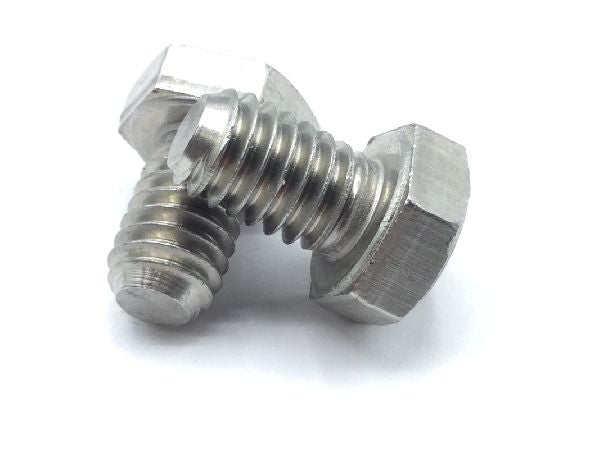

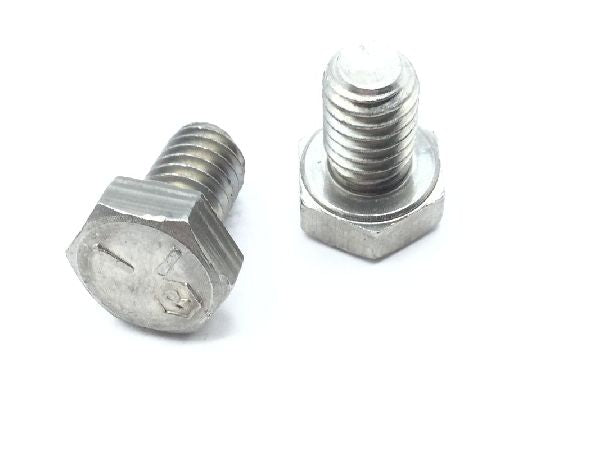

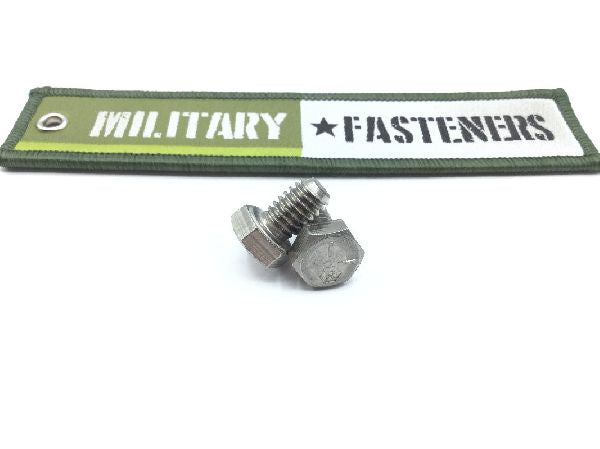

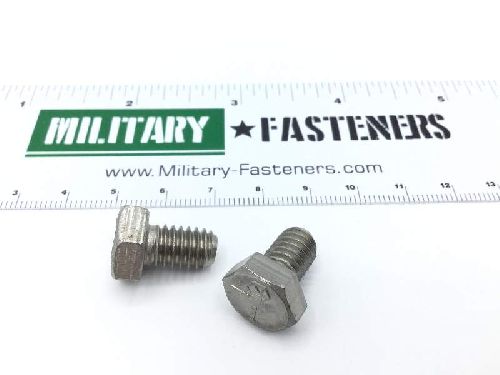

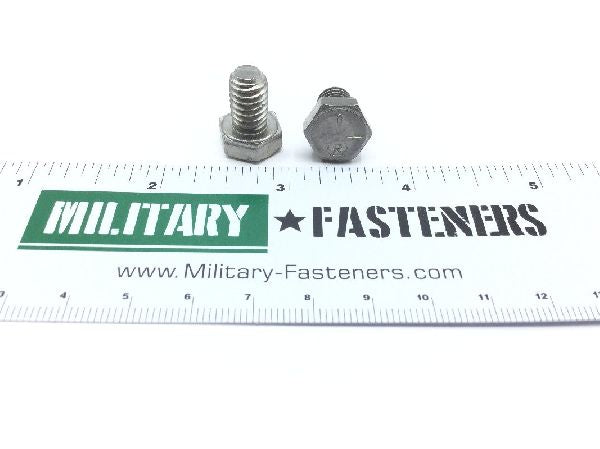

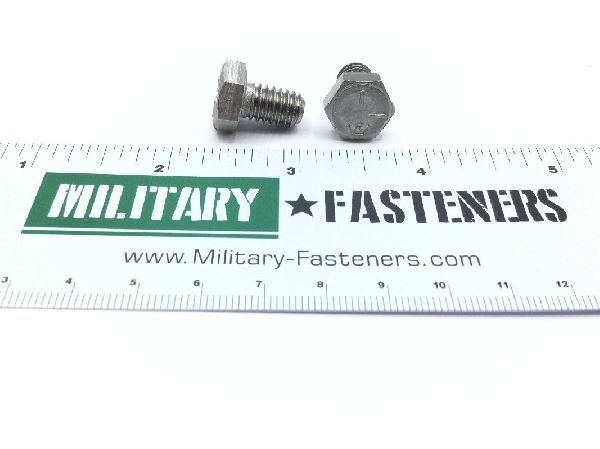

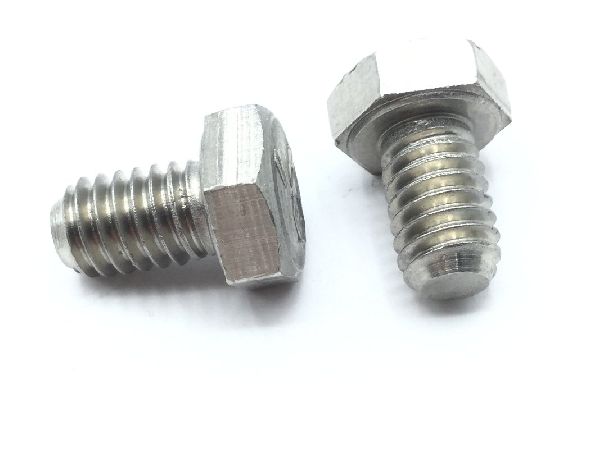

MS35307-329 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $3.46

Units per Pack 25

Price per Pack $86.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $86.50

Add item to quote

Head Style

Hexagon

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.469 inches and 0.500 inches
Features: Finished head
Features Provided: Finished head
Head Height: Between 0.195 inches and 0.211 inches
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 85000 pounds per square inch
Part Name Assigned By Controlling Agency: Hexagon head cap screw
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.303 inches and 0.469 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
