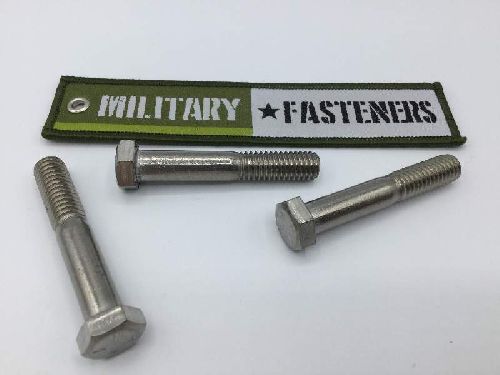

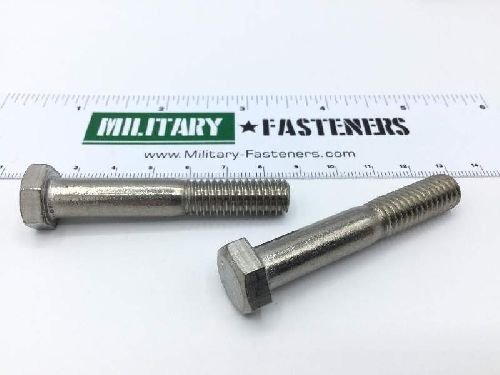

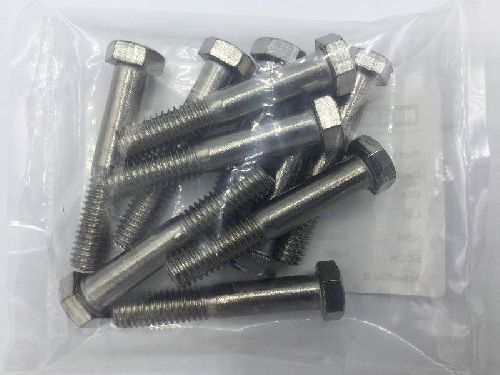

MS35307-367 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $5.54

Units per Pack 10

Price per Pack $55.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $55.40

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 2.156 inches and 2.250 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.226 inches and 0.243 inches
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 300000 pounds per square inch
Nondefinitive Specification/std Data: 1 type and 10p style
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 1.188 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.551 inches and 0.562 inches
