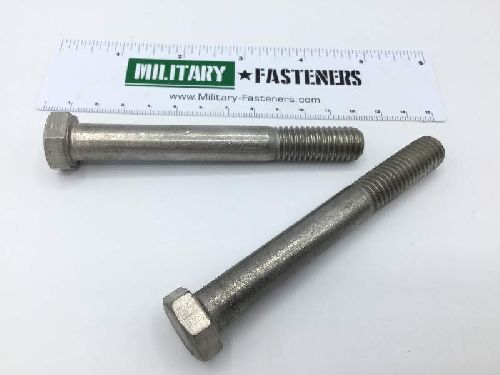

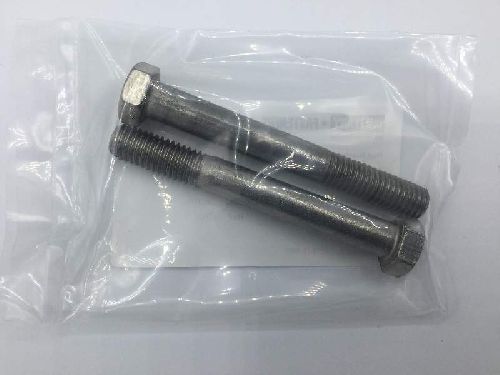

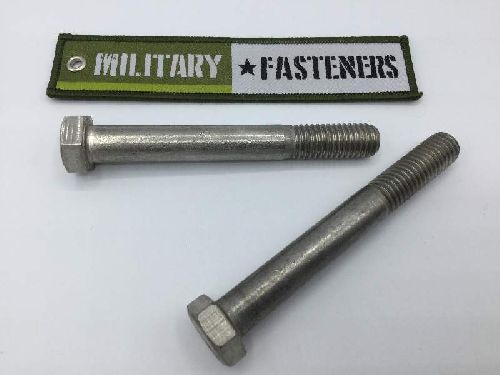

MS35307-423 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 4.000 inches
Head Height: Between 0.302 inches and 0.323 inches
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 1.250 inches and 1.440 inches
Thread Qty Per Inch (tpi): 13
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.736 inches and 0.750 inches
