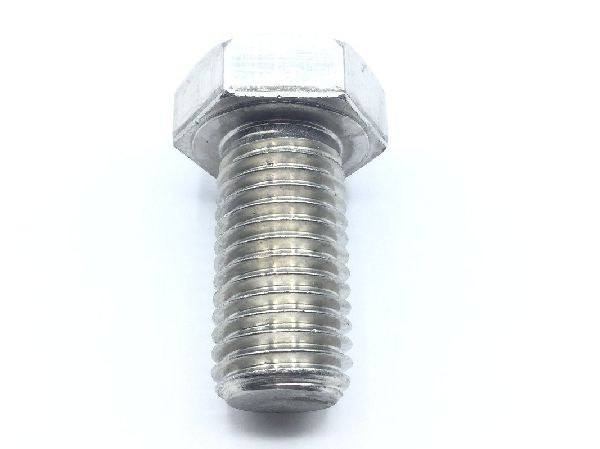

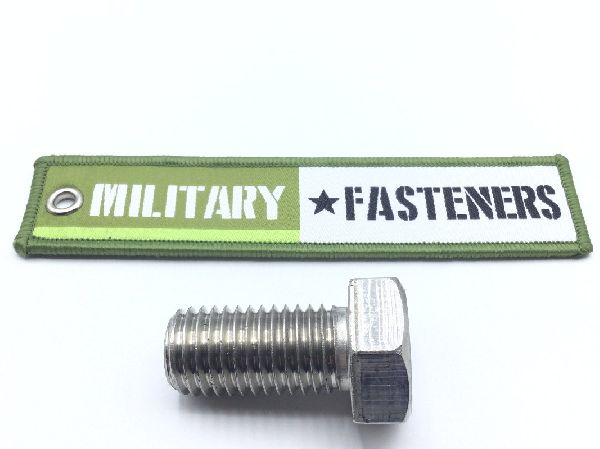

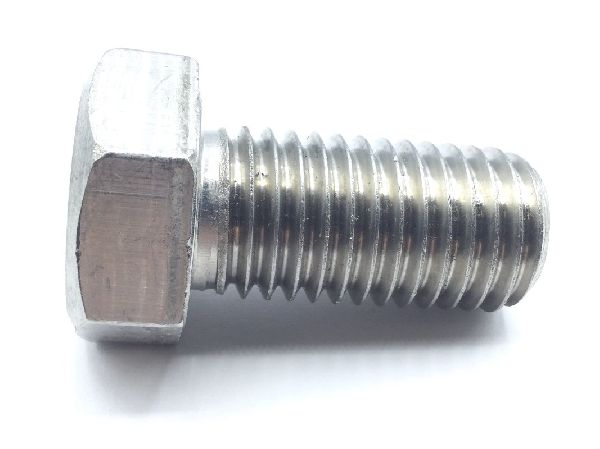

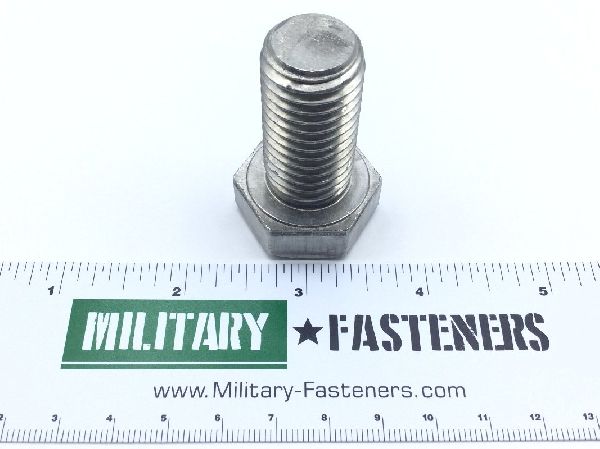

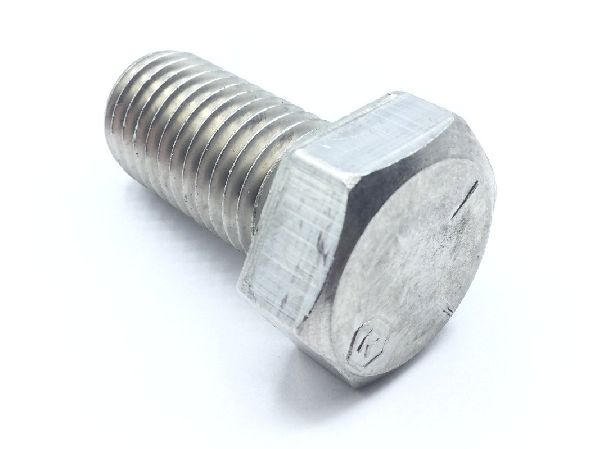

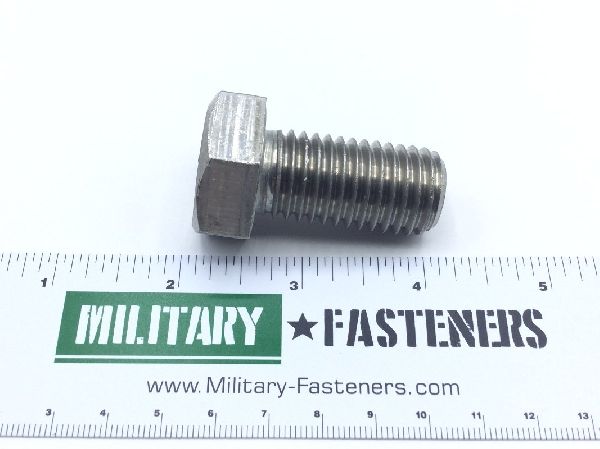

MS35307-485 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $27.65

Units per Pack 1

Price per Pack $27.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $27.65

Add item to quote

Head Style

Hexagon

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 1.438 inches and 1.500 inches
Hardness Rating: 74.0 rockwell b
Head Height: Between 0.455 inches and 0.483 inches
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 70000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.750 inches
Thread Direction: Right-hand
Thread Length: Between 1.088 inches and 1.150 inches
Thread Qty Per Inch (tpi): 10
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 1.100 inches and 1.125 inches
