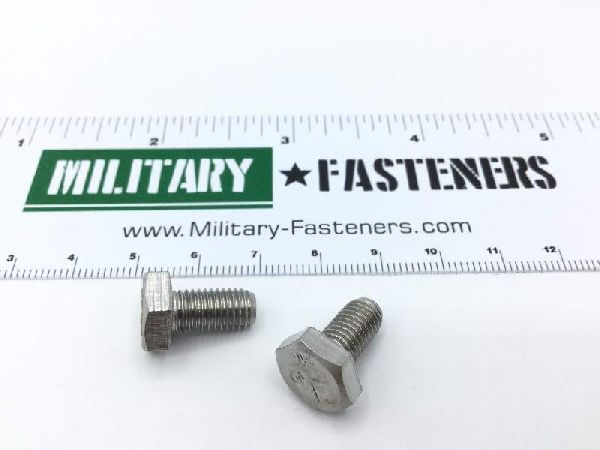

Home » MS35308-303 Hexagon Head Cap Screw
MS35308-303 Hexagon Head Cap Screw
MS35308-303 Hexagon Head Cap Screw

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35308-303 Hexagon Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $0.83
Units per Pack 50
Price per Pack $41.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $41.50
Add item to quote
Head Style
Hexagon
Material
Steel
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
2a
Fastener Length
0.500 inches
Head Height
Between 0.150 inches and 0.163 inches
Min. Tensile Strength (psi)
80000 pounds per square inch
Test Data Document
Etc.). individual manufactureer standards 96906-ms35308 standard (includes industry or association standards
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
0.500 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Width Between Flats
Between 0.428 inches and 0.438 inches
