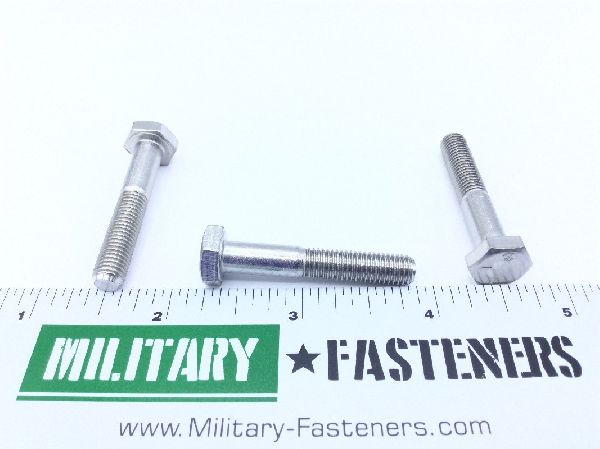

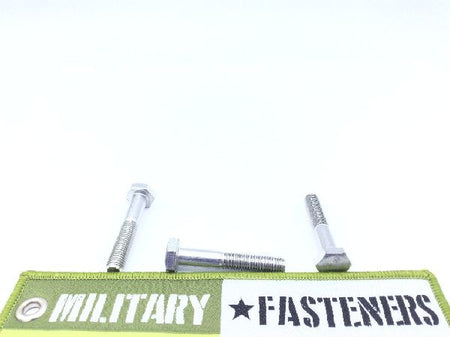

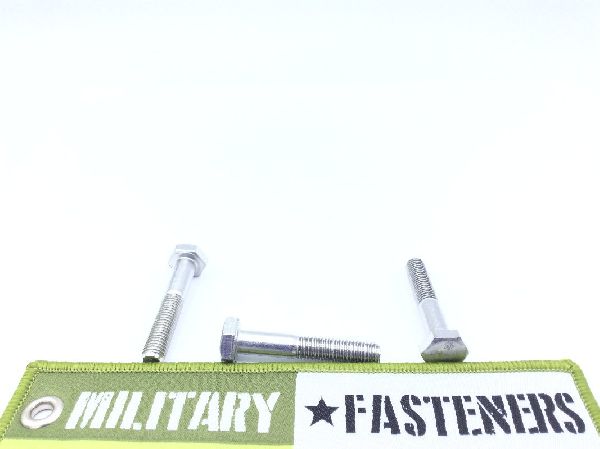

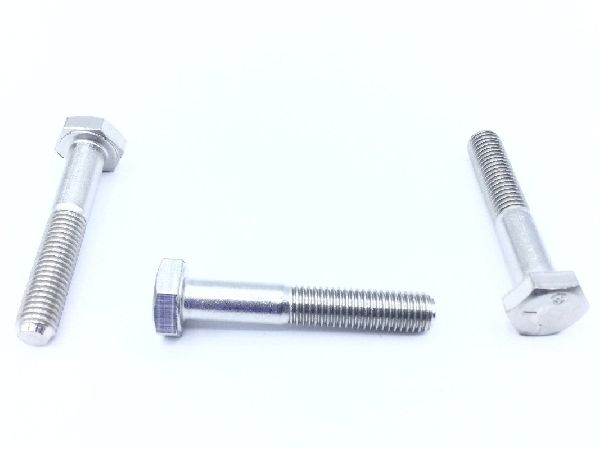

MS35308-312 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Hexagon

Material

Steel comp 301 or steel comp 302 or steel comp 302b or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Departure From Cited Document: As modified by surface treatment
Fastener Length: Between 1.438 inches and 1.500 inches
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 2 type and 10p style
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: 0.75 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
