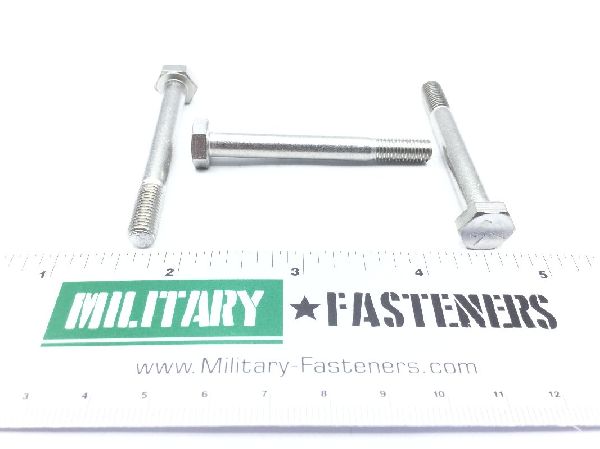

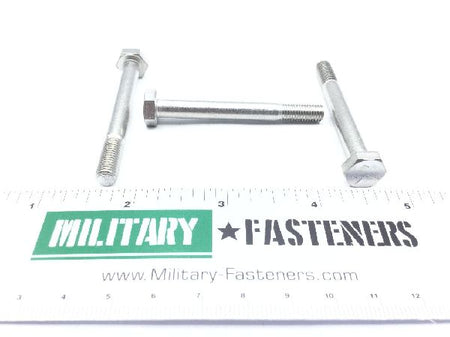

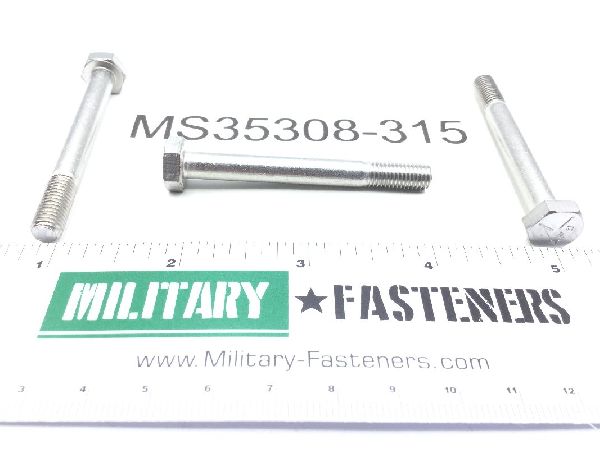

MS35308-315 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

2a

Fastener Length: 2.250 inches
Head Height: Between 0.150 inches and 0.463 inches
Material Specification: 66 federal standard single material response
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.750 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.437 inches
