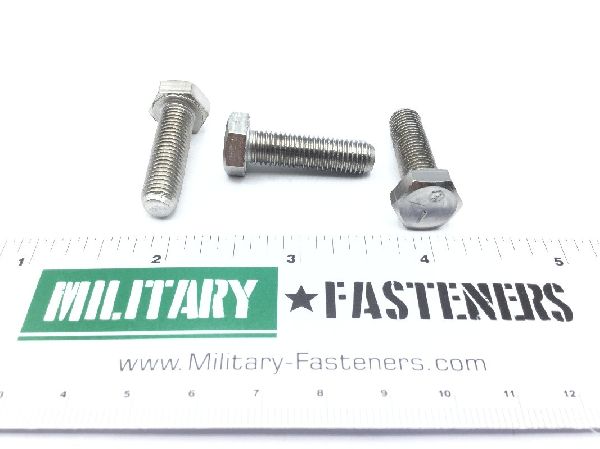

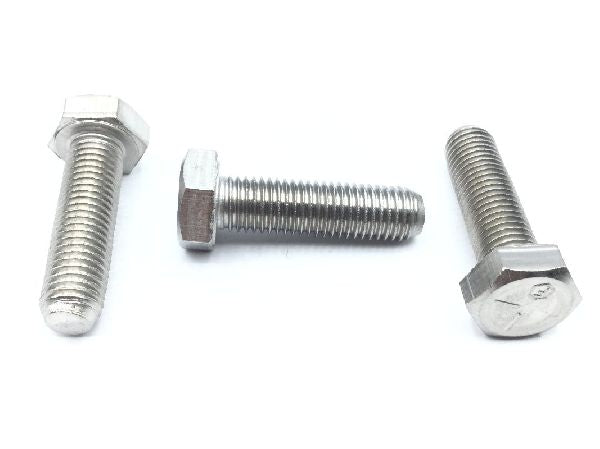

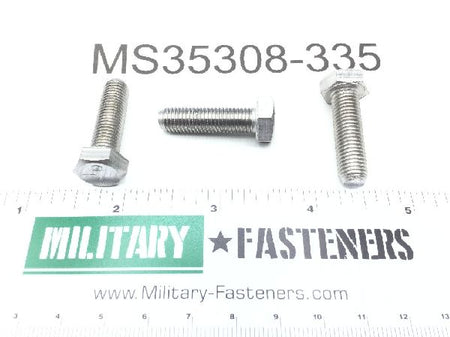

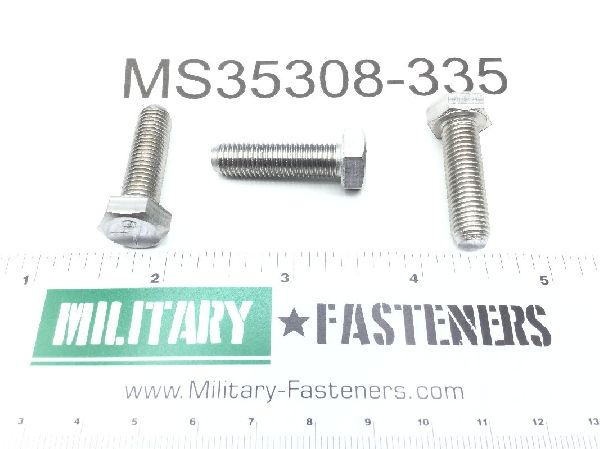

MS35308-335 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.46

Units per Pack 10

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Head Style

Hexagon

Material

Steel comp 301 or steel comp 302eel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s or steel comp 314 or steel comp 316 or steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 1.094 inches and 1.125 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.219 inches and 0.250 inches
Head Height: Between 0.195 inches and 0.211 inches
Material Specification: Ff-s-85 federal specification single material response
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 22 type and 10p style
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.875 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.489 inches and 0.50 inches
