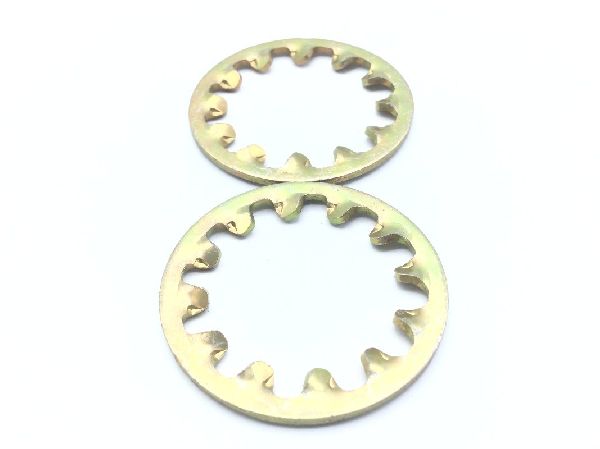

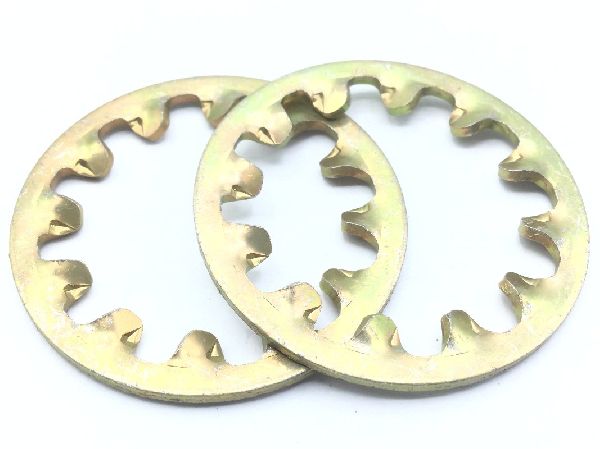

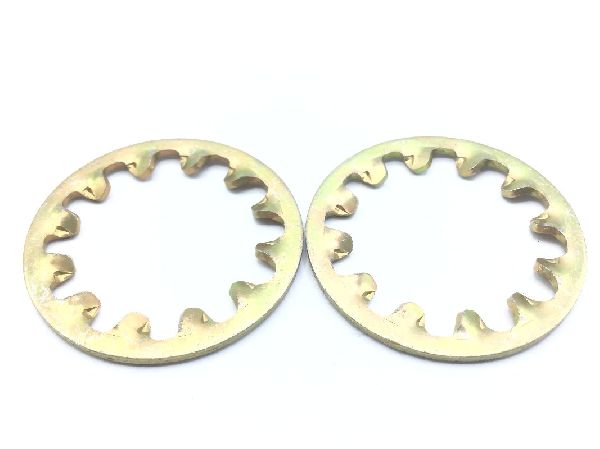

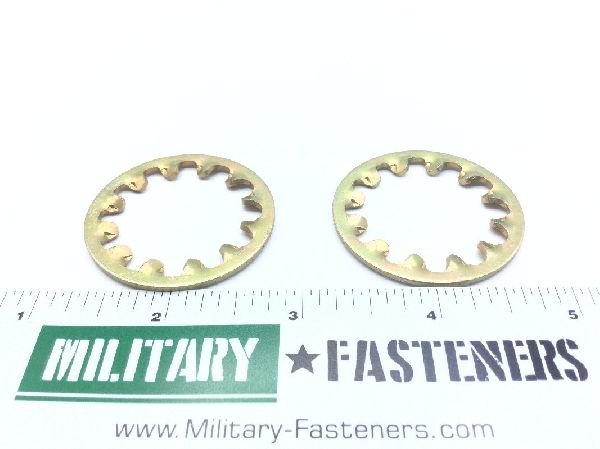

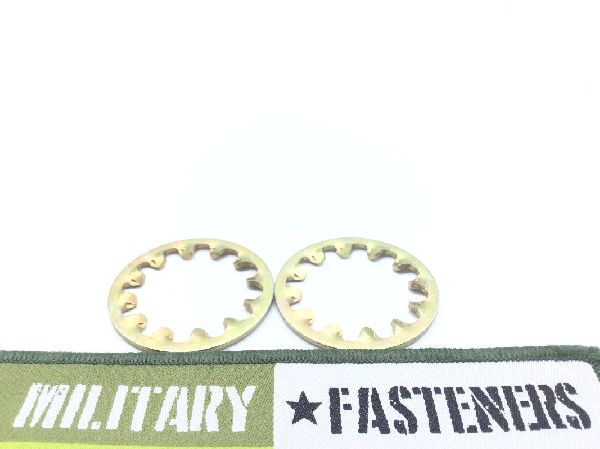

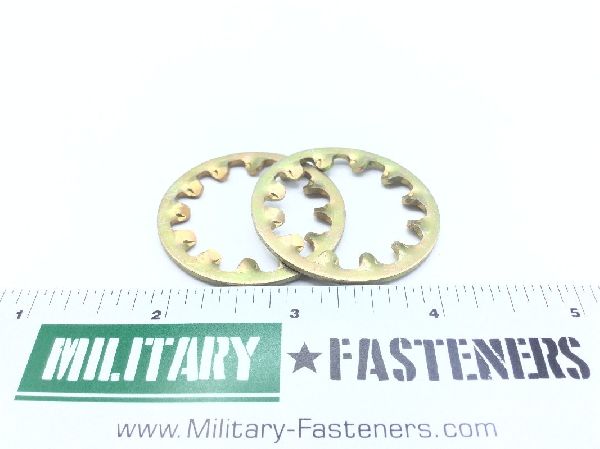

MS35333-49 Lock Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 1050 or steel comp 1551 or steel comp 1059 or steel comp 1060 or steel comp 1561 or steel comp 1064

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Hardness Rating: Between 40.0 rockwell c and 50.0 rockwell c
Material Specification: 66 federal standard all material responses
Material Thickness: Between 0.059 inches and 0.067 inches
Nondefinitive Specification/std Data: 1 type and a grade and 1 style and 1 composition
Outside Diameter: Between 1.590 inches and 1.637 inches
Style Designator: Flat internal teeth
Hole Diameter: Between 1.019 inches and 1.060 inches
