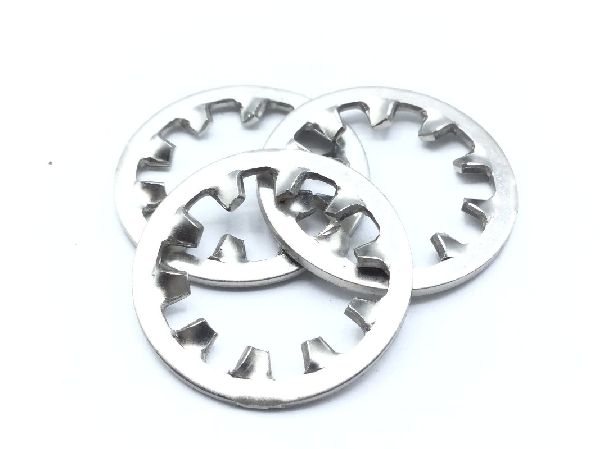

MS35333-78 Lock Washer

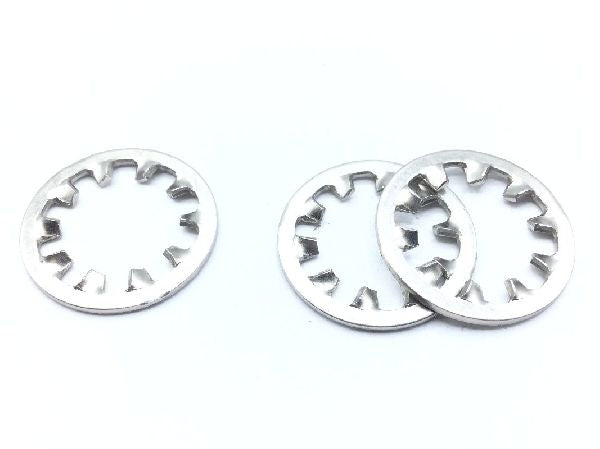

MS35333-78 Lock Washer (2)

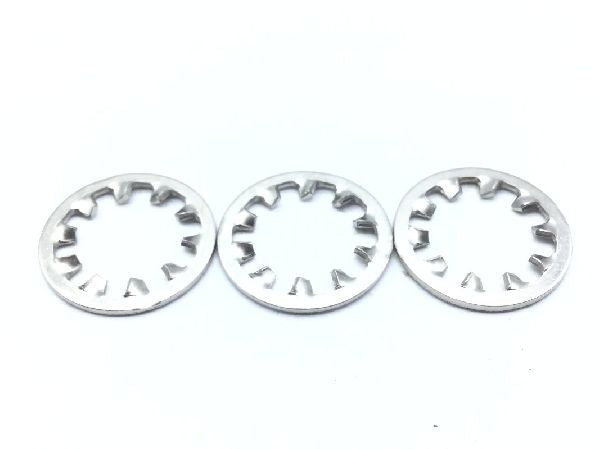

MS35333-78 Lock Washer (3)

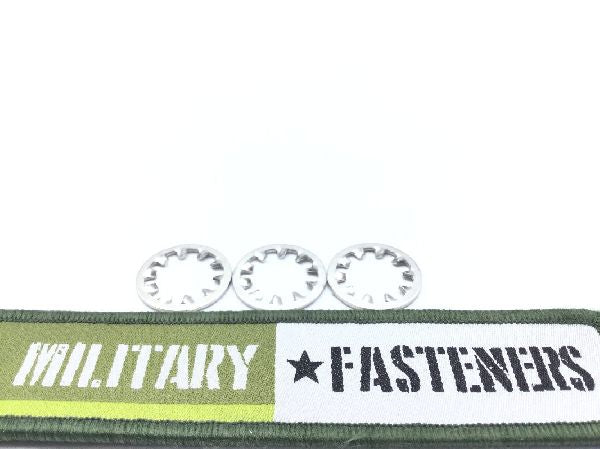

MS35333-78 Lock Washer (4)

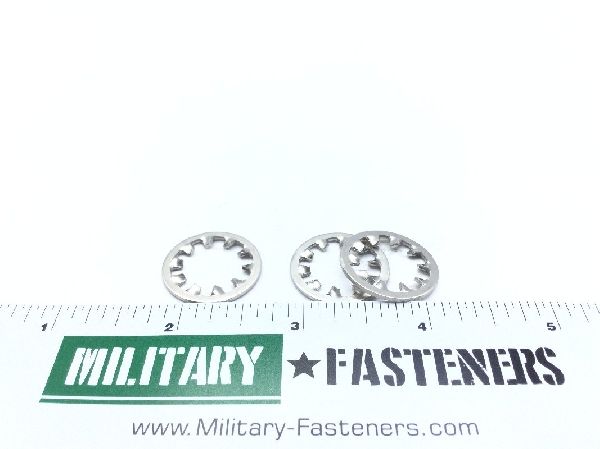

MS35333-78 Lock Washer (5)

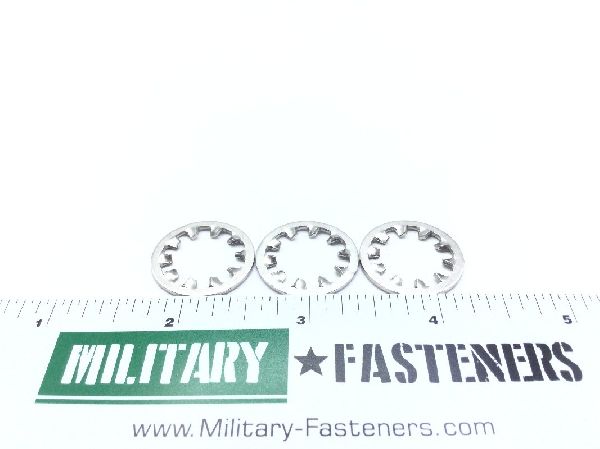

MS35333-78 Lock Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35333-78 Lock Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.21.0000

Price per Unit $0.73

Units per Pack 50

Price per Pack $36.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $36.50

Add item to quote

Material

Steel comp 410

Surface Treatment

type 2 or type 3 federal specification single treatment response qq-p-35

Hardness Rating: Between 40.0 rockwell c and 50.0 rockwell c
Material Specification: 66 federal standard single material response
Material Thickness: Between 0.037 inches and 0.045 inches
Nondefinitive Specification/std Data: 1 type and a grade and 1 style and 2 composition
Outside Diameter: Between 0.867 inches and 0.900 inches
Style Designator: Flat internal teeth
Hole Diameter: Between 0.512 inches and 0.530 inches
