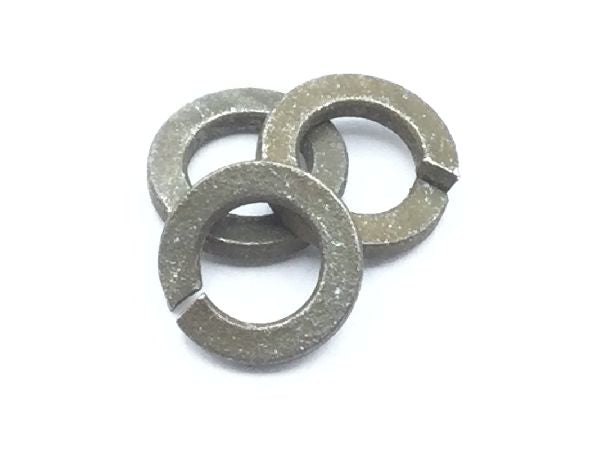

MS35338-41 Lock Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $0.22

Units per Pack 100

Price per Pack $22.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $22.00

Add item to quote

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Hardness Rating: Between 45.0 rockwell c and 53.0 rockwell c
Iii End Application: Mrap - m-atv with cs13 pop and sne
Material Specification: Aisi c1060 thru c1080 or sae 1060 thru 1080 federal standard all material responses fed standard 66
Material Thickness: Between 0.031 inches and 0.037 inches
Outside Diameter: 0.25 inches
Style Designator: Split helical-right hand
Hole Diameter: Between 0.141 inches and 0.148 inches
