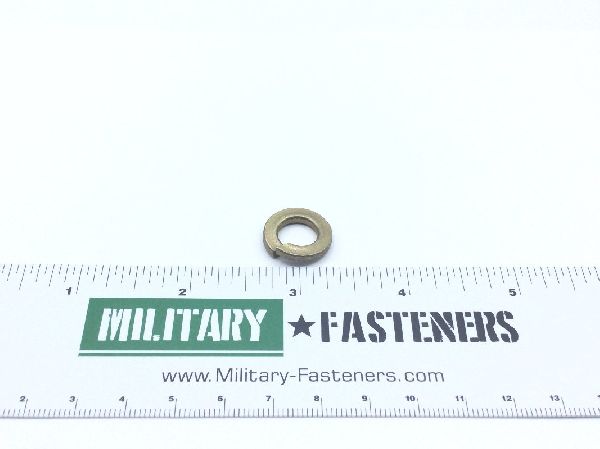

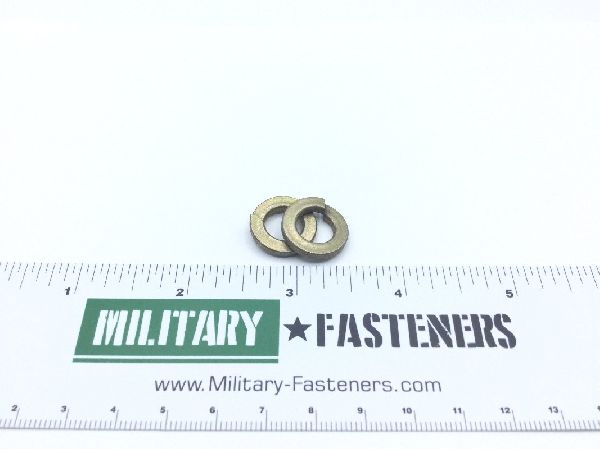

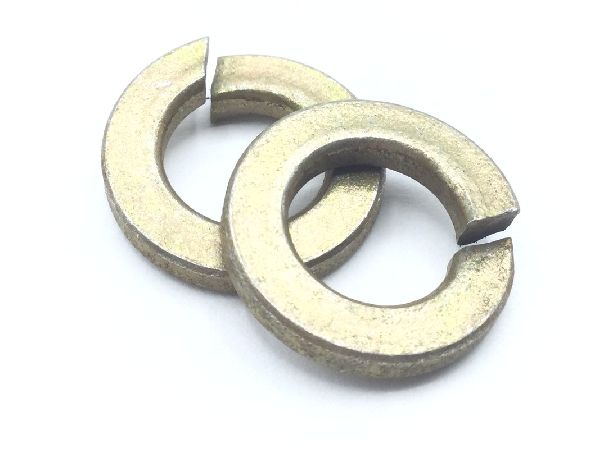

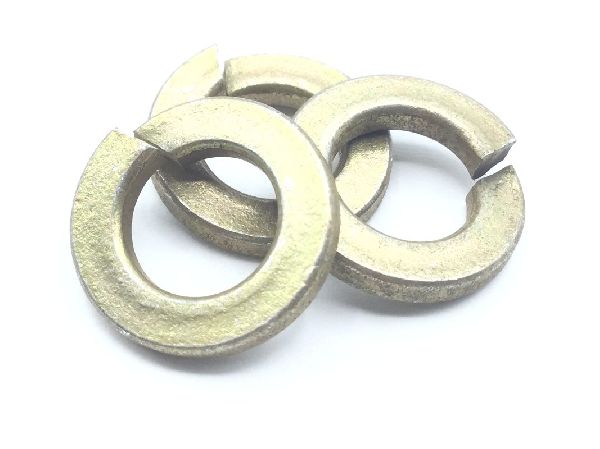

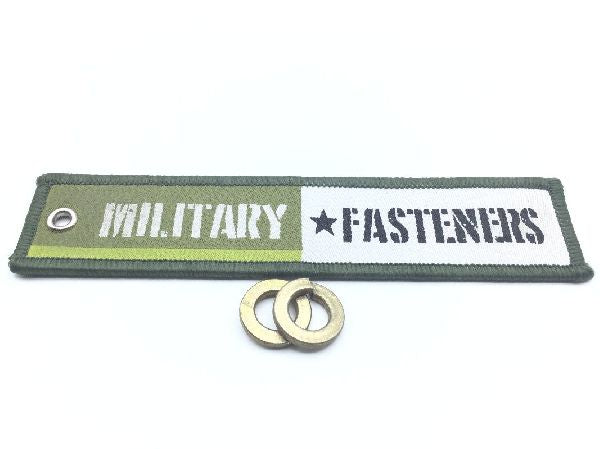

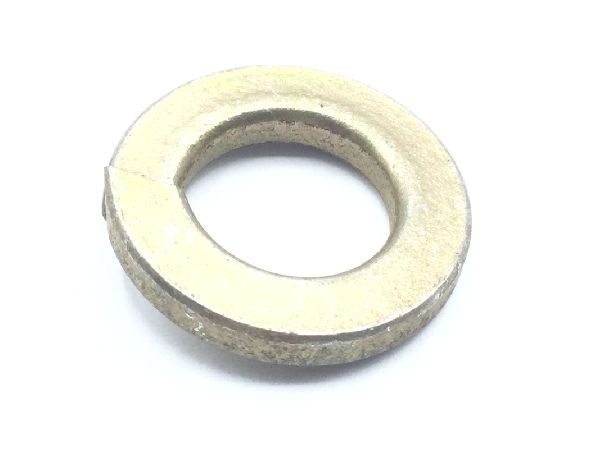

MS35338-46 Lock Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.21.0000

Price per Unit $0.27

Units per Pack 100

Price per Pack $27.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $27.00

Add item to quote

Material

Steel comp

Surface Treatment

Class2 federal specification 2nd treatment response type2 class3 federal specification 1st treatment response or qq-z-325 type2 q-p-416

Departure From Cited Document: Material must conform to ships parts control center special quality control provisions
Hardness Rating: Between 45.0 rockwell c and 53.0 rockwell c
Iii End Application: Mrap buffalo mk2a2a; mrap - m-atv with cs13 pop and sne; mrap - cougar
Material Specification: 66 federal standard all material responses
Material Thickness: Between 0.094 inches and 0.104 inches
Nondefinitive Specification/std Data: 2 style and a class
Outside Diameter: 0.683 inches
Special Features: Certified free from mercury contamination
Special Test Features: Special quality control testing
Style Designator: Split helical-right hand
Test Data Document: Etc.).
Hole Diameter: Between 0.382 inches and 0.393 inches
