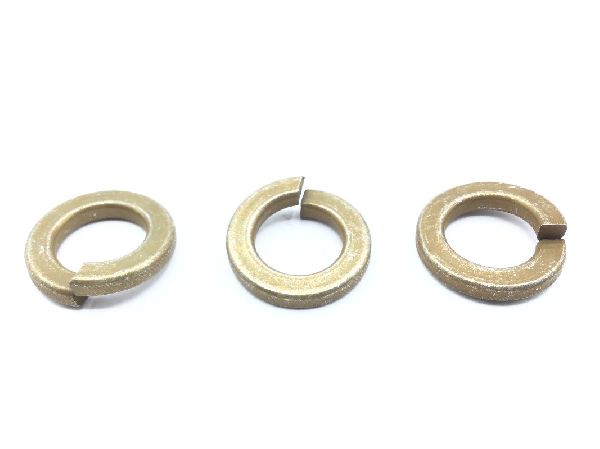

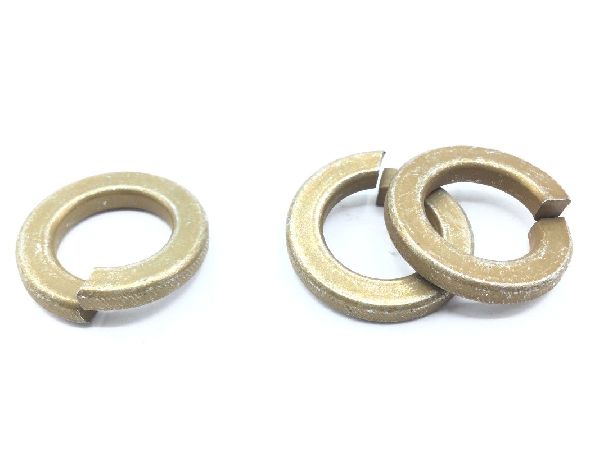

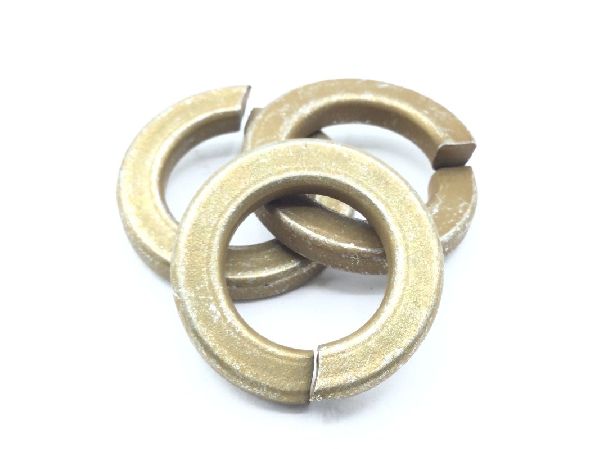

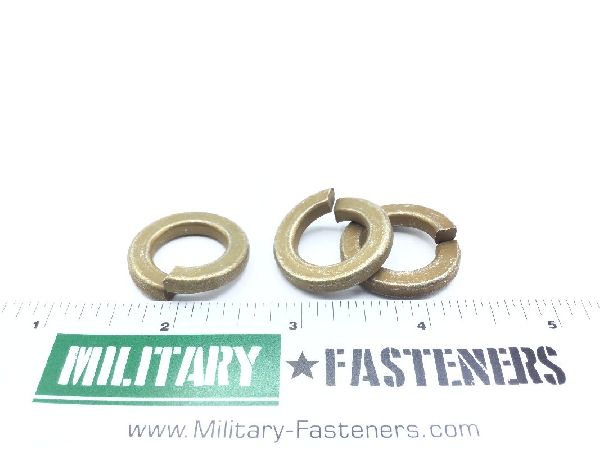

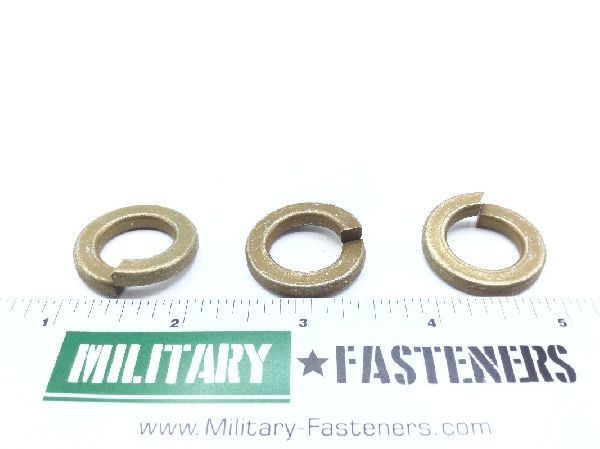

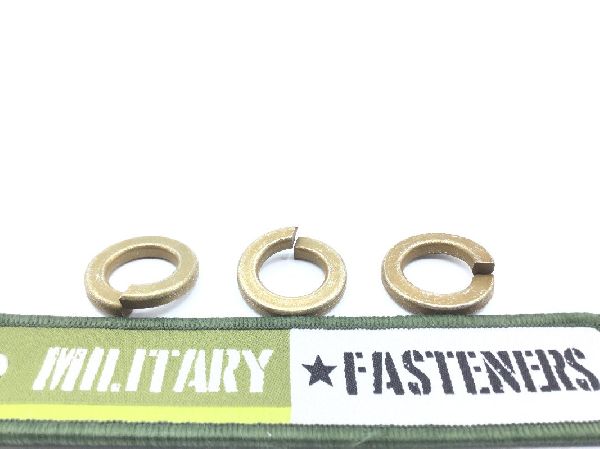

MS35338-50 Lock Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.21.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Departure From Cited Document: Material must conform to ships parts control center special quality control provisions
Hardness Rating: Between 45.0 rockwell c and 53.0 rockwell c
Material Specification: 66 federal standard all material responses
Material Thickness: Between 0.156 inches and 0.166 inches
Nondefinitive Specification/std Data: 2 style and a class
Outside Diameter: 1.079 inches
Special Features: Certified free from mercury contamination
Special Test Features: Special quality control testing
Style Designator: Split helical-right hand
Test Data Document: Etc.).
Hole Diameter: Between 0.636 inches and 0.653 inches
