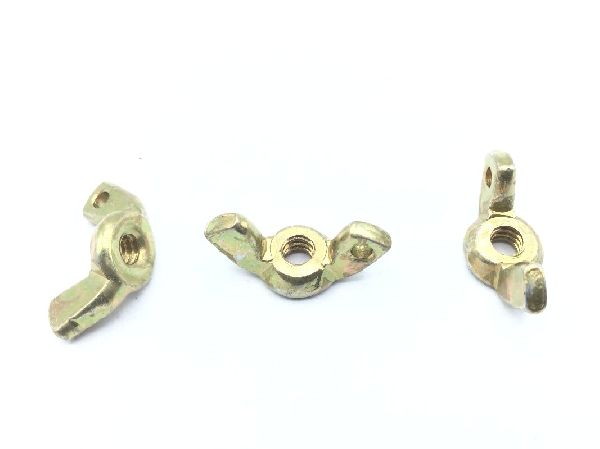

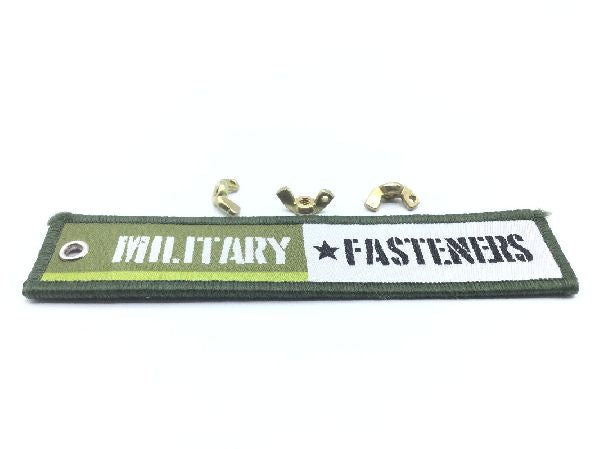

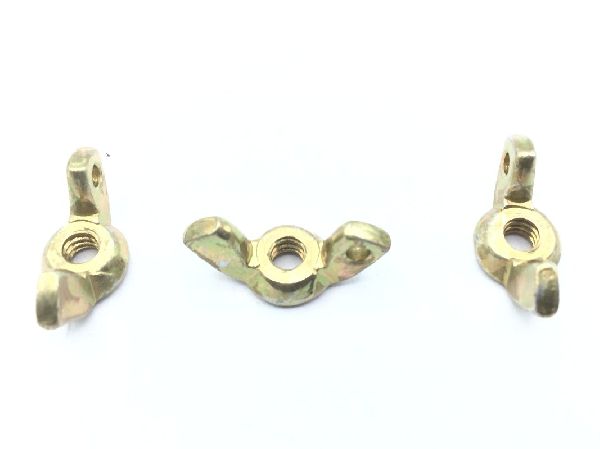

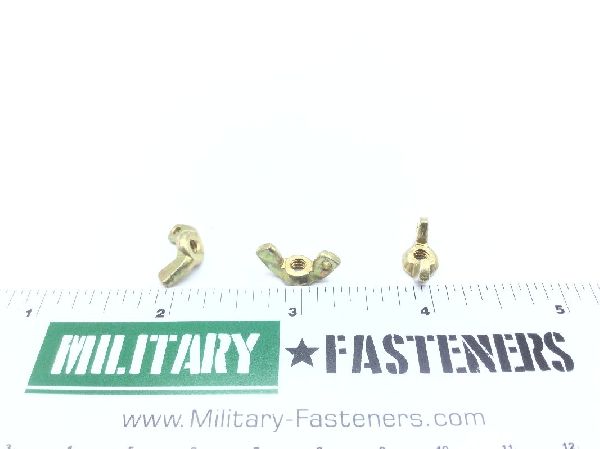

MS35425-17 Plain Wing Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.138 inches

Body Diameter: Between 0.290 inches and 0.330 inches
Drilled Hole Diameter: Between 0.070 inches and 0.080 inches
Fabrication Method: Forged
Hole Configuration Style: Configuration k
Hole Type And Quantity: 1 drilled
Material Specification: 66 federal standard single material response
Nut Style: Wing
Overall Height: Between 0.280 inches and 0.410 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Wing Spread Width: Between 0.590 inches and 0.720 inches
