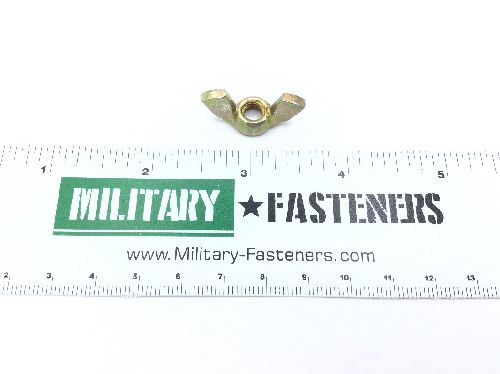

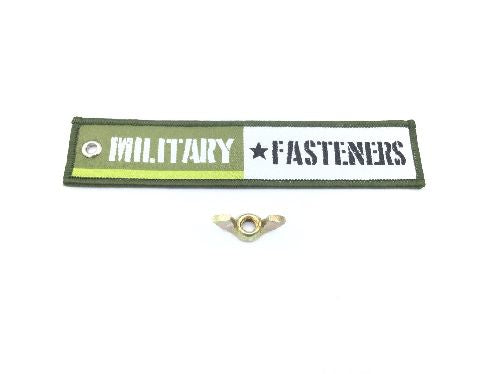

MS35425-70 Plain Wing Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.04

Units per Pack 10

Price per Pack $40.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.40

Add item to quote

Material

Steel comp 1008 or steel comp 1010 or steel comp 1012 or steel comp 1015 or steel comp 1016

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.250 inches

Body Diameter: Between 0.450 inches and 0.500 inches
Fabrication Method: Forged
Nondefinitive Specification/std Data: A type and 1 style
Nut Style: Wing
Overall Height: Between 0.430 inches and 0.570 inches
Special Features: Great for making adjustments in the field; offer good rust resistance
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Wing Spread Width: Between 0.970 inches and 1.100 inches
