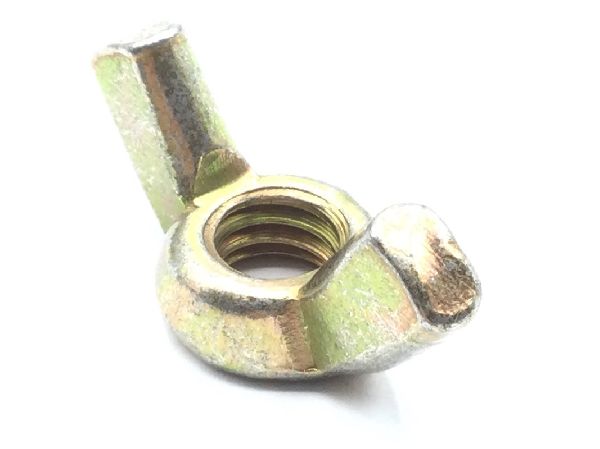

MS35425-72 Plain Wing Nut

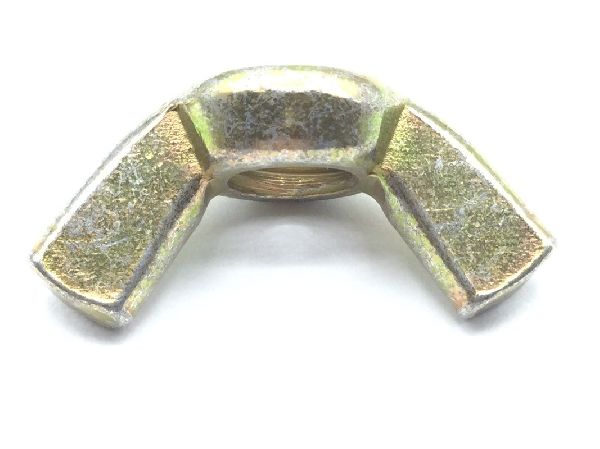

MS35425-72 Plain Wing Nut (2)

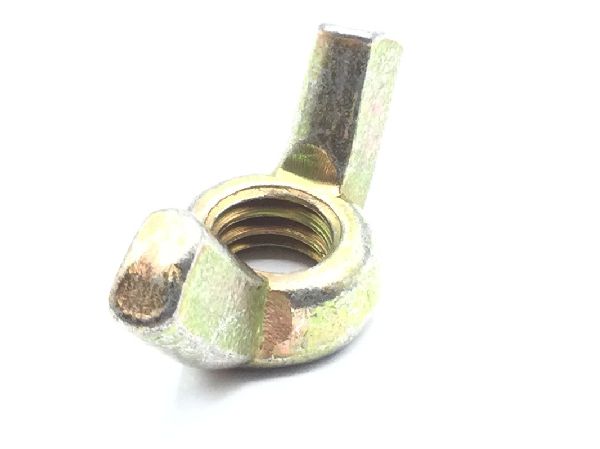

MS35425-72 Plain Wing Nut (3)

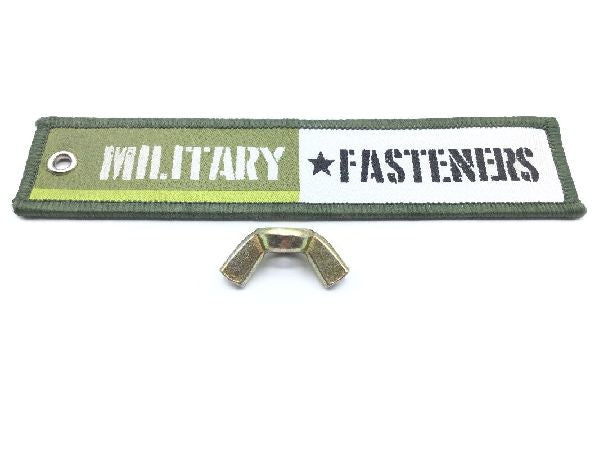

MS35425-72 Plain Wing Nut (4)

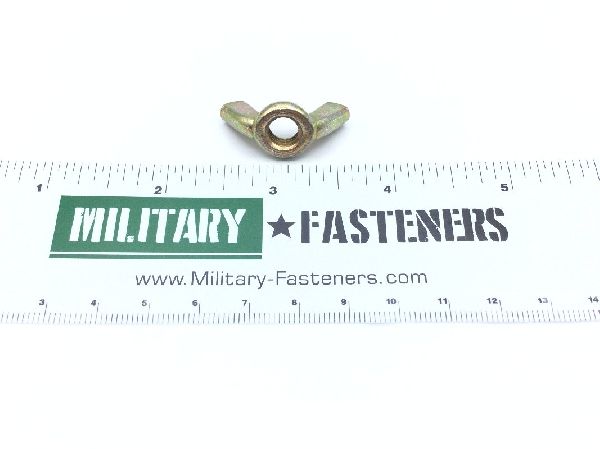

MS35425-72 Plain Wing Nut (5)

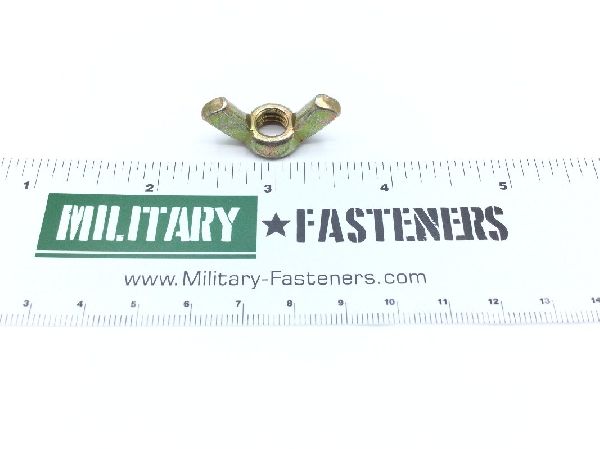

MS35425-72 Plain Wing Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35425-72 Plain Wing Nut

NSN: 5310-01-077-6817
Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.312 inches

Body Diameter: Between 0.510 inches and 0.580 inches
Fabrication Method: Forged
Nondefinitive Specification/std Data: 9 type and 1 style
Nut Style: Wing
Overall Height: Between 0.530 inches and 0.660 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Wing Spread Width: Between 1.120 inches and 1.125 inches
