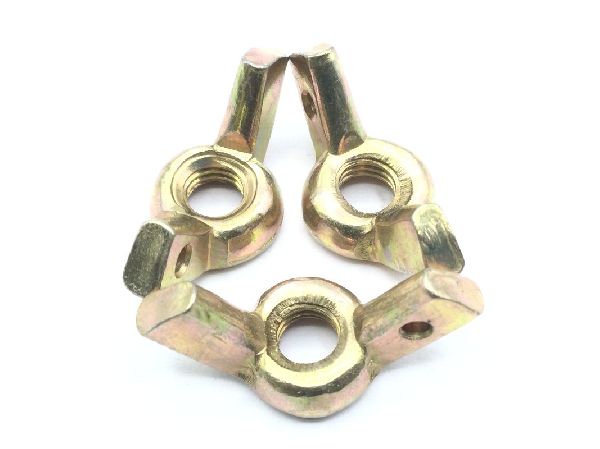

MS35426-13 Plain Wing Nut
MS35426-13 Plain Wing Nut (2)

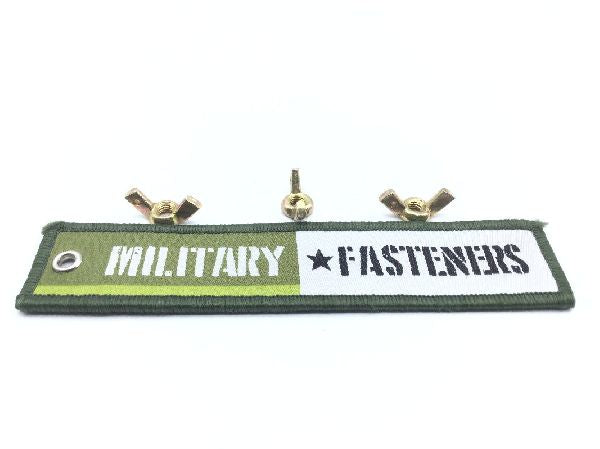

MS35426-13 Plain Wing Nut (3)

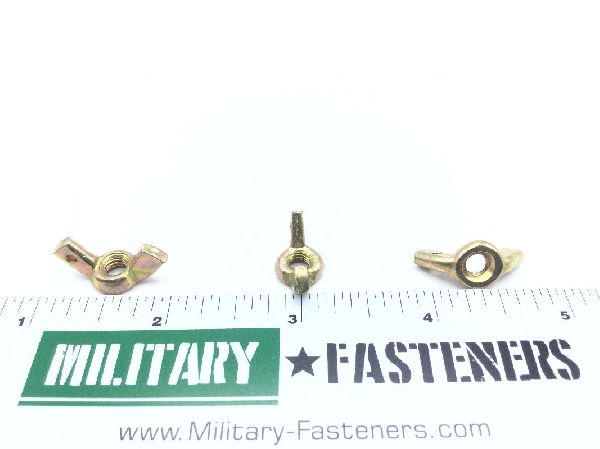

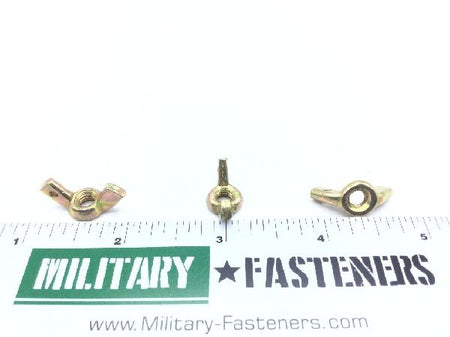

MS35426-13 Plain Wing Nut (4)
MS35426-13 Plain Wing Nut
MS35426-13 Plain Wing Nut (2)
MS35426-13 Plain Wing Nut (3)
MS35426-13 Plain Wing Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35426-13 Plain Wing Nut

NSN
5310-00-720-8549
Product Series
MS
ECCN
EAR99
Schedule
7318.16.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Class 3 federal specification single treatment response type 2 qq-p-416
Thread Class
2b
Thread Quantity Per Inch (tpi)
32
Thread Series
Unf (fine thread)
Thread Size
0.19 inches
Body Diameter
Between 0.39 inches and 0.43 inches
Drilled Hole Diameter
0.07 inches
Fabrication Method
Forged
Hole Configuration Style
Configuration k
Hole Type And Quantity
1 drilled
Material Specification
66 federal standard single material response
Nut Style
Wing
Overall Height
Between 0.34 inches and 0.47 inches
Thread Direction
Right-hand
Wing Spread Width
Between 0.78 inches and 0.91 inches
