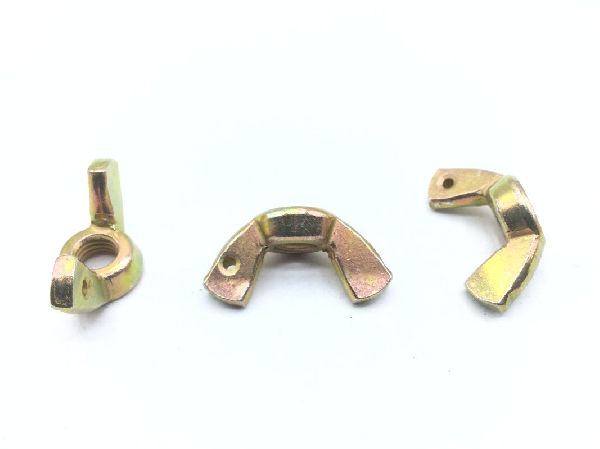

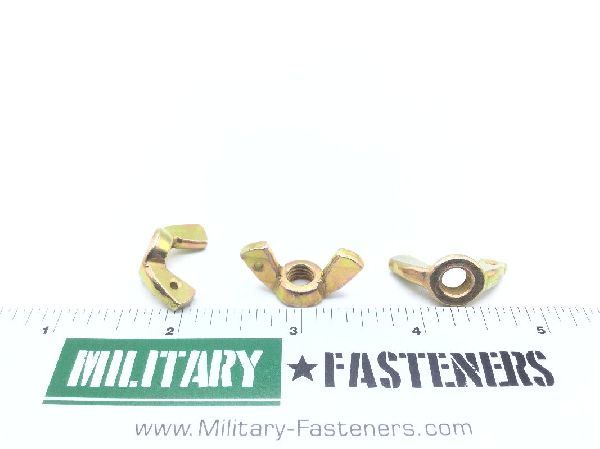

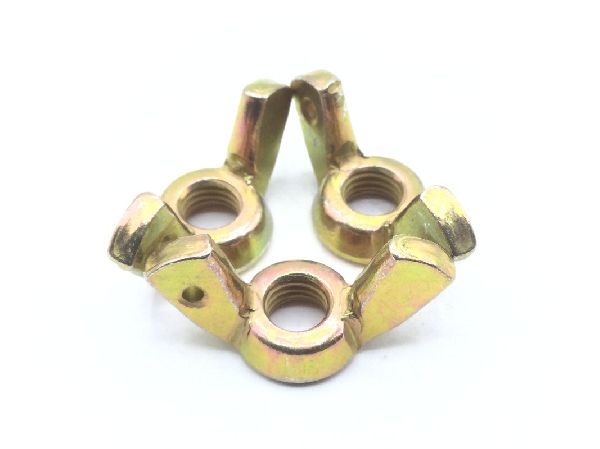

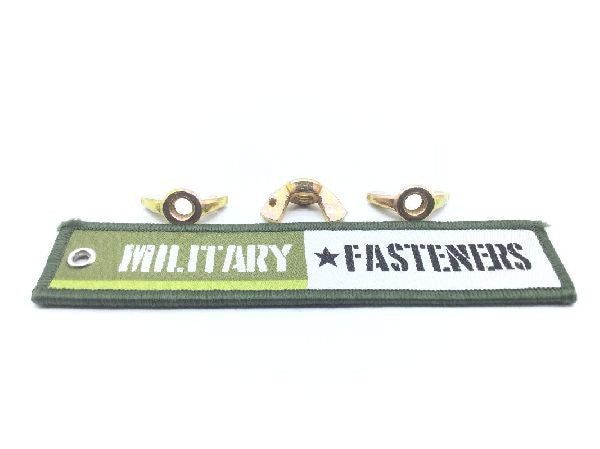

MS35426-14 Plain Wing Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $8.04

Units per Pack 10

Price per Pack $80.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $80.40

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Body Diameter: Between 0.450 inches and 0.500 inches
Drilled Hole Diameter: 0.070 inches
Fabrication Method: Forged
Hole Configuration Style: Configuration k
Hole Type And Quantity: 1 drilled
Nut Style: Wing
Overall Height: Between 0.430 inches and 0.570 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Wing Spread Width: Between 0.960 inches and 1.100 inches
