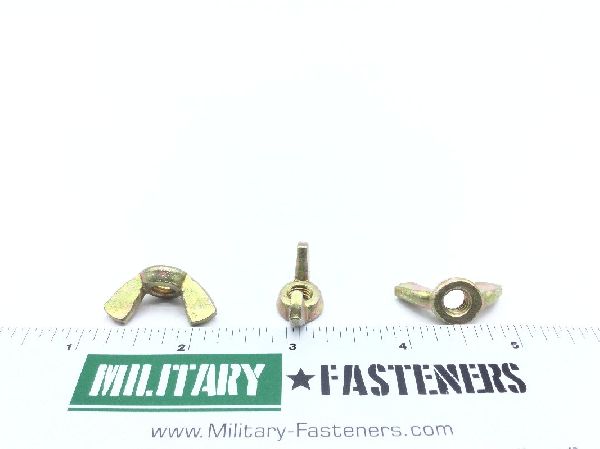

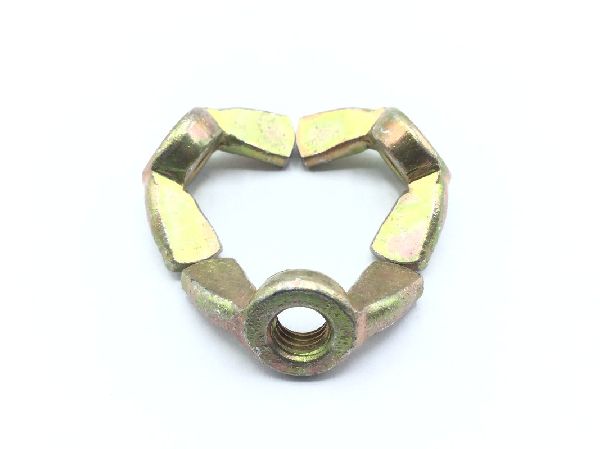

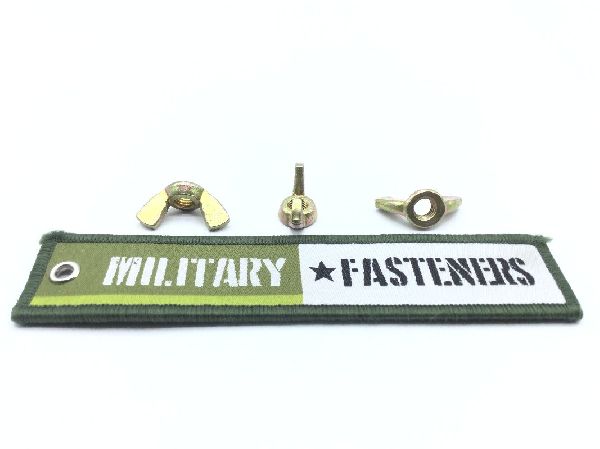

MS35426-27 Plain Wing Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $9.08

Units per Pack 10

Price per Pack $90.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $90.80

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Body Diameter: Between 0.45 inches and 0.50 inches
Fabrication Method: Forged
Material Specification: 66 federal standard single material response
Nondefinitive Specification/std Data: A type and 1 style
Nut Style: Wing
Overall Height: Between 0.43 inches and 0.57 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Wing Spread Width: Between 0.97 inches and 1.10 inches
