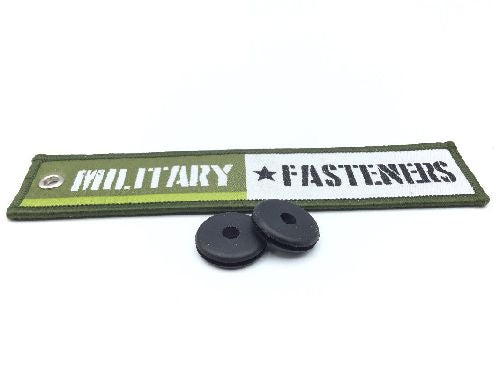

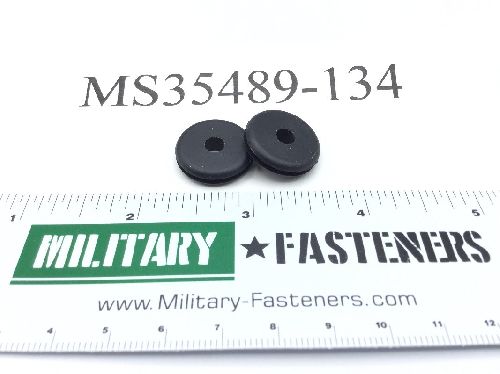

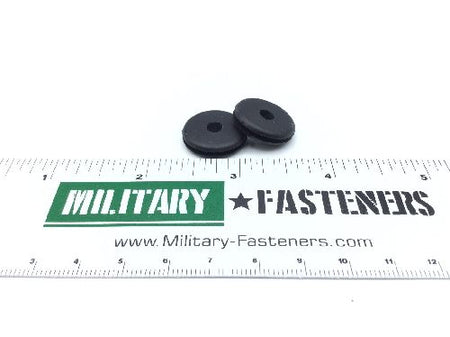

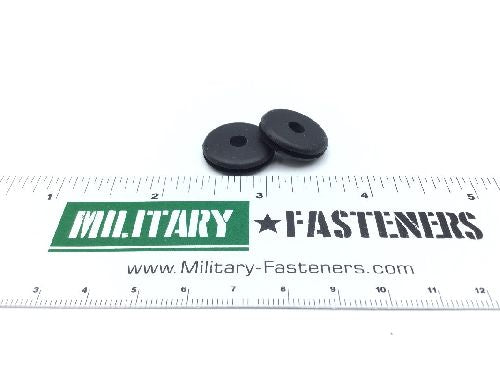

MS35489-134 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: 0.063 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.547 inches and 0.579 inches
Groove Width: Between 0.047 inches and 0.079 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 0.719 inches and 0.781 inches
Material Specification: Astm d2000 bg515a14v24c32e036f19z assn standard single material response
Overall Height: Between 0.157 inches and 0.219 inches
Hole Diameter: Between 0.172 inches and 0.204 inches
