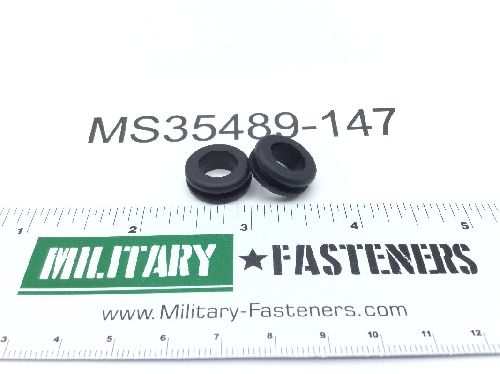

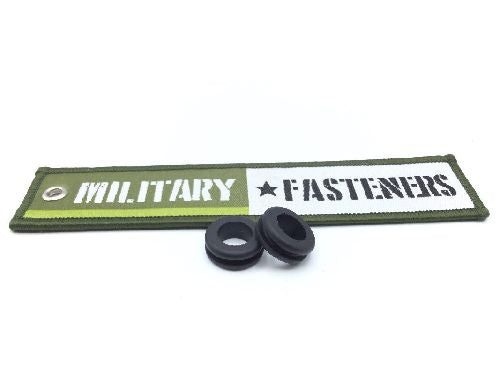

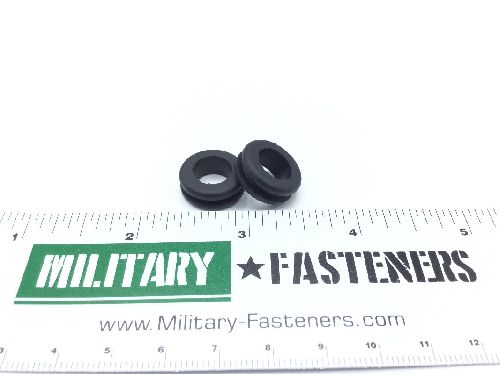

MS35489-147 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: 0.078 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: 0.50 inches
Groove Width: 0.094 inches
Iii Material: Rubber polyester urethane class au or rubber polyether urethane class eu or rubber butadiene-acrylonitrile class nbr
Large Flange Outside Diameter: Between 0.61 inches and 0.671 inches
Material Specification: Bg515a14b24c32e036f19z assn standard single material response astm d2000
Nonmetallic Hardness Rating: 45.0 shore durometer a and 55.0 shore durometer a
Overall Height: Between 0.219 inches and 0.281 inches
Hole Diameter: 0.375 inches
