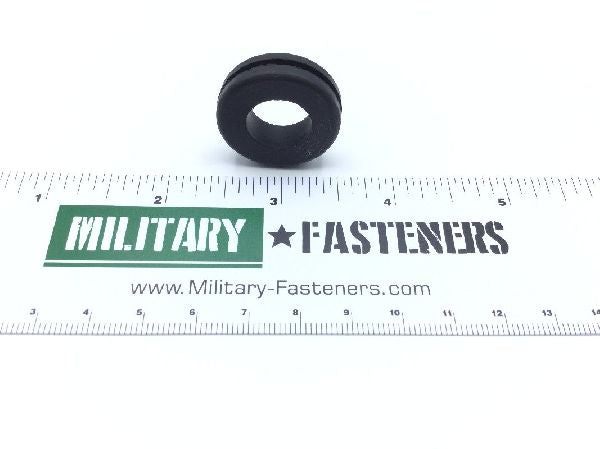

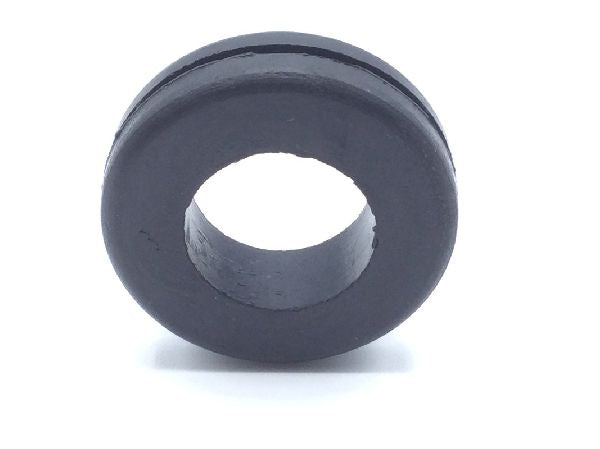

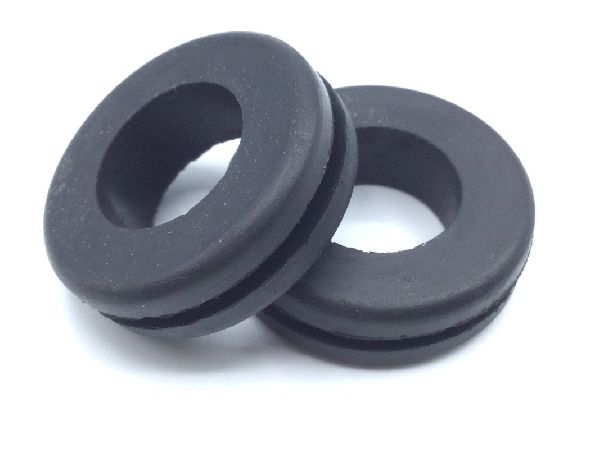

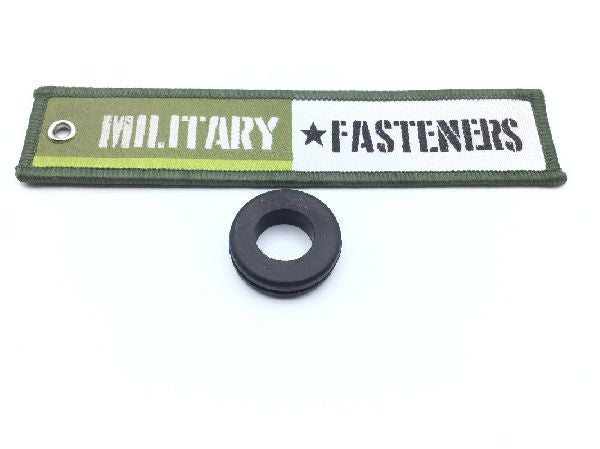

MS35489-15 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.063 inches and 0.125 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 1.234 inches and 1.266 inches
Groove Width: Between 0.046 inches and 0.088 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 1.469 inches and 1.531 inches
Material Specification: Astm d2000 bg515a14b24c32e036f19z assn standard single material response
Nonmetallic Hardness Rating: 45.0 shore durometer a and 55.0 shore durometer a
Overall Height: Between 0.234 inches and 0.266 inches
Hole Diameter: Between 0.484 inches and 0.516 inches
