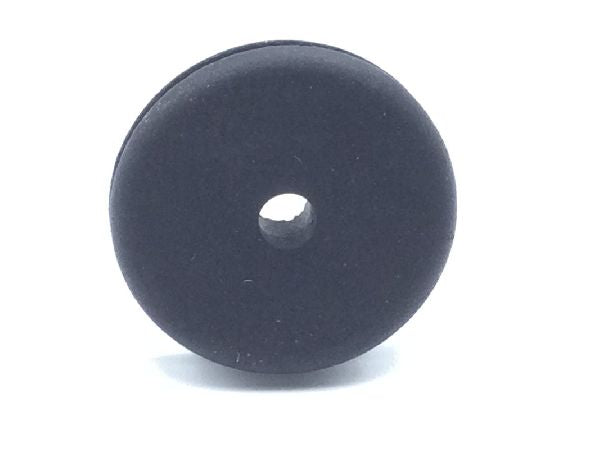

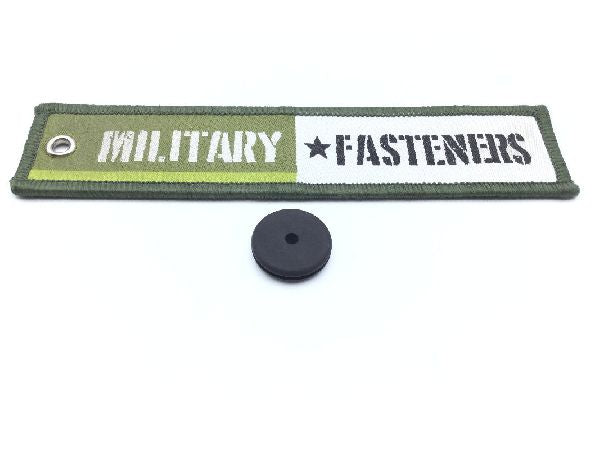

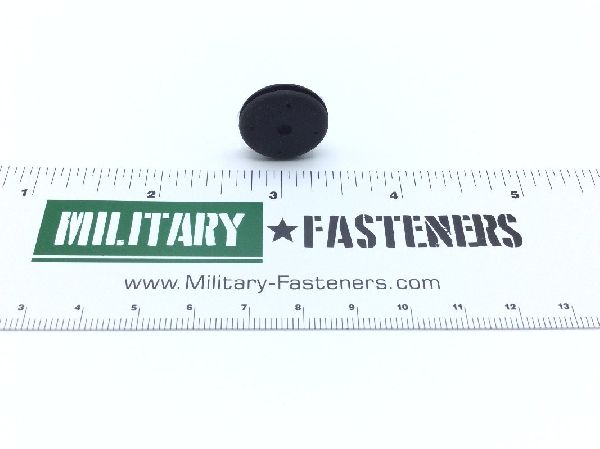

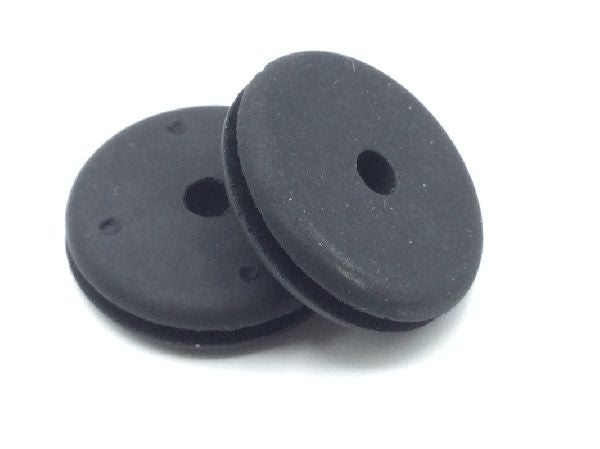

MS35489-2 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $1.31

Units per Pack 25

Price per Pack $32.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $32.75

Add item to quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.046 inches and 0.078 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.546 inches and 0.578 inches
Groove Width: Between 0.046 inches and 0.078 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 0.719 inches and 0.781 inches
Material Specification: Astm d2000 bg515a14b24c32e036f19z assn standard single material response
Overall Height: Between 0.157 inches and 0.219 inches
Hole Diameter: Between 0.109 inches and 0.141 inches
