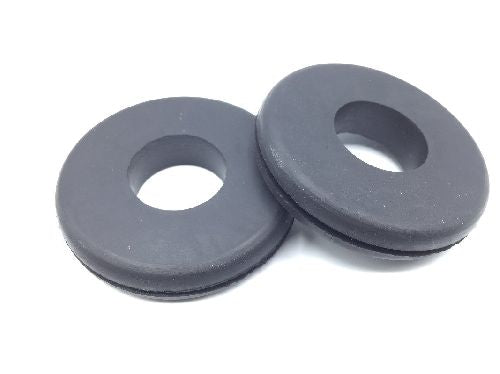

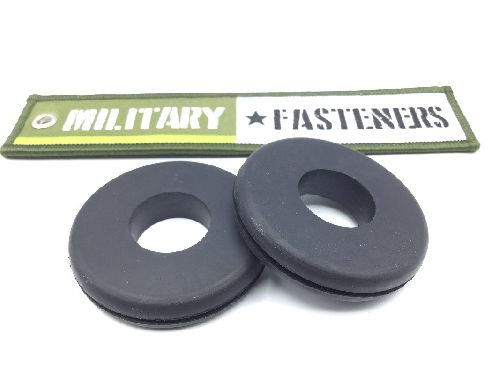

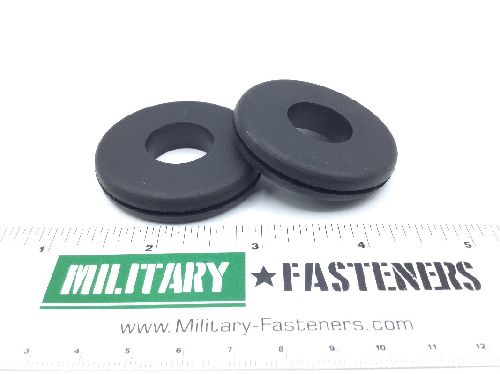

MS35489-21 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.140 inches and 0.172 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 1.422 inches and 1.454 inches
Groove Width: Between 0.046 inches and 0.078 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 1.781 inches and 1.843 inches
Material Specification: Astm d2000bg525a14b24c32e036f19z assn standard single material response
Overall Height: Between 0.344 inches and 0.406 inches
Hole Diameter: Between 0.734 inches and 0.766 inches
