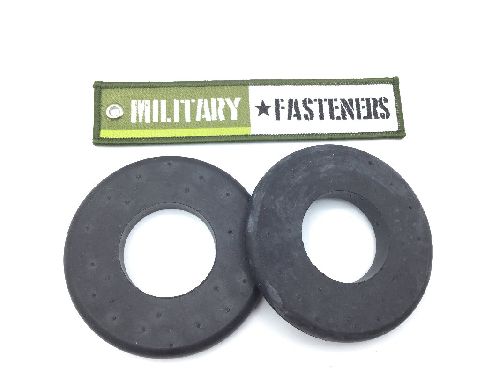

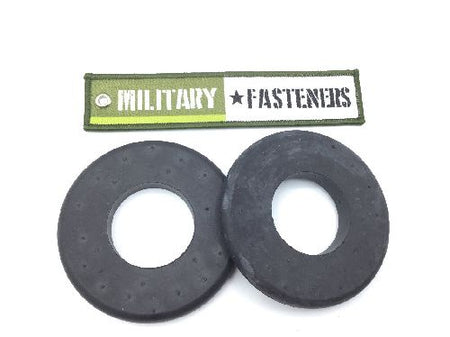

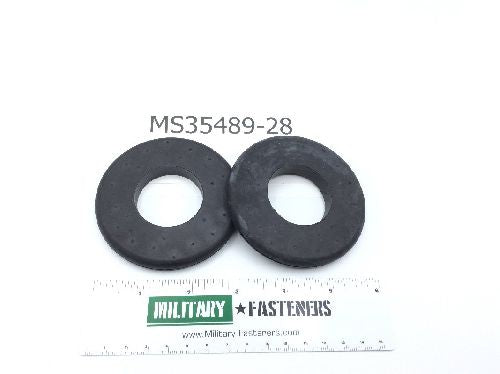

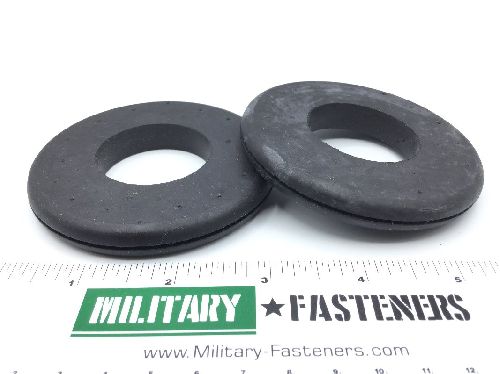

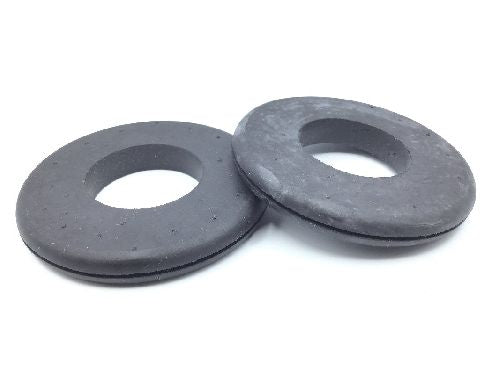

MS35489-28 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Any acceptable
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.172 inches and 0.204 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 2.734 inches and 2.766 inches
Groove Width: Between 0.046 inches and 0.078 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 3.219 inches and 3.281 inches
Overall Height: Between 0.409 inches and 0.469 inches
Hole Diameter: Between 1.434 inches and 1.516 inches
